Double Sided PCB

  • High Precision Double Sided PCB suppliers
  • High Precision Double Sided PCB suppliers





Introduction


Double sided circuit board means has a double-sided copper, and metallized holes, that is double-sided copper, and copper are holes inside

Both sides have double wiring board, but to use the wire on both sides. Both sides must be in the room with appropriate electrical connections. "Bridge" between this circuit called vias. Guide hole in the PCB, metal filled or coated with holes, which can be connected to the conductors on both sides. Because dual-panel area twice as big than the single panel, double panel to solve the single-panel wiring staggered because of difficulty (can be turned to the other side of the hole), it is more suitable for use in more complex than single-panel circuit.





Advantages


Compared with single-board: wiring convenient, simple, labor-intensive wiring smaller, shorter line length.





Double Circuit Board Design Steps



     1. Prepare circuit schematics

     2. Create a new file and loaded PCB component package library

     3, planning board

     4, into the network table and components

     5, automatic layout components

     6, layout adjustment

     7, the network density analysis

     8, wiring rules set

     9, automatic routing

     10, manually adjust the wiring

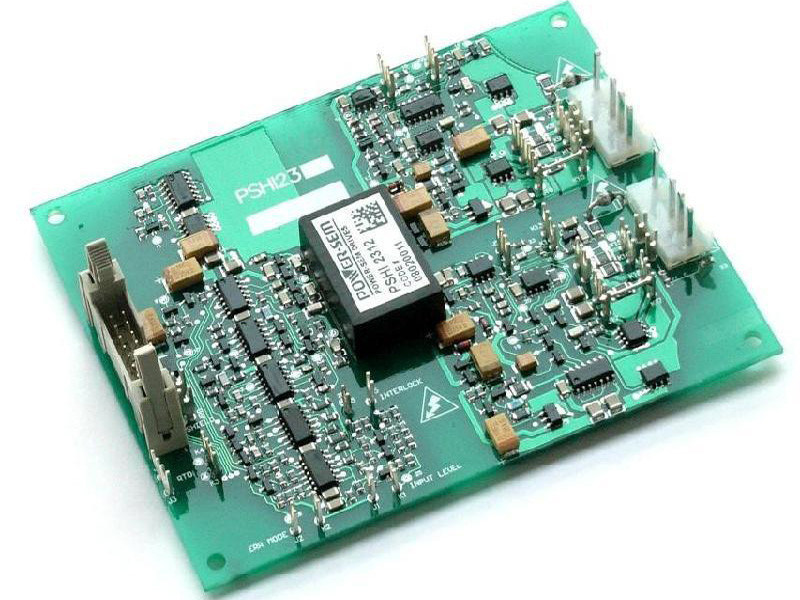

Automatic Control KB FR4 PCB Printed Circuit Board Fabrication , Double Sided

Automatic Control KB FR4 PCB Printed Circuit Board Fabrication ,  Double Sided
Automatic Control KB FR4 PCB Printed Circuit Board Fabrication ,  Double Sided

Large Image :  Automatic Control KB FR4 PCB Printed Circuit Board Fabrication , Double Sided

Product Details:

Place of Origin: Shenzhen, China
Brand Name: AGILECIRCUIT
Certification: ISO9001,UL, RoHs, TS16949
Model Number: doublesidedpcb1088
Trade Terms: EX-WORK, DDU TO DOOR, FOC

Payment & Shipping Terms:

Payment Terms: L/C,T/T,Paypal
Detailed Product Description
High Light:

double sided printed circuit board

,

prototype printed circuit board

Automatic Control KB FR4 PCB Printed Circuit Board Fabrication ,  Double Sided



  1. Double sided PCB board with 1.6mm thickness
  2. KB FR4 PCB materail
  3. China PWB manufacturer
  4. Electronic PCB fabricating and assembly in one stop
  5. Cheap PCB prototyping and fast lead time
  6. 7 years experience in circuit boards manufacturing
  7. Competetive PCB maker both in cost and quality


Specification:



Product Name:

Automatic Control PCB

Material:

Standard FR4

PCB Made:

China manufacuturer

Board Thickness:

1.6mm

Status:

Blank Circuit Boards

Surface Finish:

Pb free HASL

Layer number: 2 Layers PCB base brand: King Board KB
PCB copper: 2oz Other service: PCB assembly



Description:



We offer manufacturing service of printing circuit board boards in single-side, double-side and multilayer. With decade’s years of experience in this PCB field, we are now serving customers from more than 40 countries in various electronic industries.



 Double sided PCB board (double-sided PCB, double layer PCB, 2 layers PCB) is a kind of widely used and important type in printed circuit boards. It is widely used in electronic product.





Applications:



Amplifier, Speaker, Power Supply system, Switch Control,  Drive Electronics, Modules and Controller Cards, Audio and Video Equipment, Coin Amusement and Video Game, Debit /Smart/Calling Card Machines, Air Conditioners, Coffee Makers, Electric Heaters, Fans Electric, Irons Refrigerators, Solar Water Heaters, Mobile Devices,MP3 Player ,Tablet PC, Wearable Electronics, Auto Safety & Security, Automotive Equipment ,Communications and Networking, Computer Peripherals, Computer Subsystems, Computers, Industrial Power Supplies, Audio Equipment, Electronics, Electronics, Photography, Television, Hardware & DIY, Building, LED & Energy-efficient Lighting, Solar, Wind & Hydropower Technologies, Kitchen Appliances, Audio Equipment, Automobiles & Motorcycles, TV Tires, Diagnostic Tools, Car DVD Player, Auto Lighting System, Motorcycles Navigation & GPS , Computer, Laptops ,USB Flash Drives, CPUs Keyboards, LCD Monitors, Desktops Routers ect.





Advantages:


1. We offer low-cost PCB prototypes. No minimum order limit.

2. Fast quotation, 24 hour prompt response.

3. Our PCB factory is ISO/TS approved and with high & advanced production capabilities.

4. We are full service provider. Our services include PCB manufacturing, PCB assembly, components sourcing, stencil, also PCB layout, from specification to final production turnkey service. It is your good choice for one stop PCB solutions.

5. We provide technical and professional support, satisfactory customer service.
