Introduction
Double sided circuit board means has a double-sided copper, and metallized holes, that is double-sided copper, and copper are holes inside
Both sides have double wiring board, but to use the wire on both sides. Both sides must be in the room with appropriate electrical connections. "Bridge" between this circuit called vias. Guide hole in the PCB, metal filled or coated with holes, which can be connected to the conductors on both sides. Because dual-panel area twice as big than the single panel, double panel to solve the single-panel wiring staggered because of difficulty (can be turned to the other side of the hole), it is more suitable for use in more complex than single-panel circuit.
Advantages
Compared with single-board: wiring convenient, simple, labor-intensive wiring smaller, shorter line length.
Double Circuit Board Design Steps
1. Prepare circuit schematics
2. Create a new file and loaded PCB component package library
3, planning board
4, into the network table and components
5, automatic layout components
6, layout adjustment
7, the network density analysis
8, wiring rules set
9, automatic routing
10, manually adjust the wiring
Product Details:
Payment & Shipping Terms:
|
| Material: | FR1, FR2, CEM1, CEM3, FR4 | No Of Layers: | 2 |
|---|---|---|---|
| Surface Finish: | ENIG (Immersion Gold) / Immersion Silver / OSP / HASL | Board Thickness: | 0.4mm / 0.8mm / 1.0mm / 1.2mm / 1.6mm / 2.0mm/ 2.4mm |
| Copper Thickness: | 1-6 Oz | ||
| High Light: | Custom Pcb Manufacturing,Making Printed Circuit Boards |
||

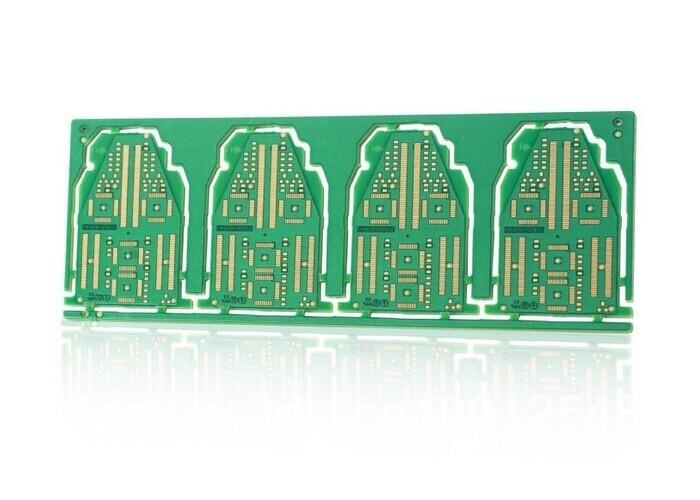

Electronic Controller Green Double Sided PCB with V Cut / Stamp Holes Routing Outline
"2L PCB" is also named as "Double Sided PCB" (D/S PCB). PTH (Via) is a must, but it doesn't have Buried or Blind hole. Components can be assembled on both top and bottom side, so you don't need to worry about where to put components on the board, and not need to use through hole components which is always expensive than SMD one.
Currently this is one of the most popular types of PCB on the Earth, and we can provide 24 hours quick-turn service for them.
Application
Products are applied to a wide range of High-tech industries such as: LED, telecommunication, computer application, lighting, game machine, industrial control, power, automobile and high-end consumer electronics, ect. By unremitting work and effort to the marketing, products exports to American, Canada, Europe counties, Africa and other Asia-pacific countries
Advantage
1. PCB factory directly
2. PCB high quality
3. PCB good price
4. PCB quick time
5. PCB certification(ISO/UL E354810/RoHS)
