Single Sided PCB

  • High Precision Single Sided PCB suppliers
  • High Precision Single Sided PCB suppliers
  • High Precision Single Sided PCB suppliers
  • High Precision Single Sided PCB suppliers
  • High Precision Single Sided PCB suppliers
  • High Precision Single Sided PCB suppliers

Introduction:

Focus on the most basic of PCB, components focused on one side, the other side of the wire is concentrated.Because wires only appear on one side, so this kind of PCB is called single sided PCB.

Single panel wiring diagram is given priority to with the network printing, that is, in the copper surface printed on resistance agent, to prevent welding resistance after etching printed on mark, and then punching processing way to complete the parts guide hole and the appearance.In addition, part of a small amount of diverse products, are using photosensitive resistance agent forming pattern of the photographic method.

Operating temperatures range from 130 C to 230 C.  Single sided boards are available with surface finishes including Organic surface protectant (OSP), Immersion Silver, Tin, and Gold plating along with both leaded or lead-free Hot Air Solder Level (HASL).








Material:





Single sided PCB base material in paper phenolic copper paper laminated board, epoxy resin copper laminated plate is given priority to.





Structure:



First, the copper foil to be etched, etc. Process to obtain a circuit required, a protective film to be drilled to expose the corresponding pad. After cleaning and then rolling method to combine the two. Then the pad portion exposed gold plating or tin protection.





Production Process:


Single copper-clad plate - blanking - photochemical method/screen printing image transfer - remove corrosion was printed - cleaning, dry - hole machining - shape - dry cleaning - printing resistance welding coating - cure - printing mark symbol - cure - dry cleaning drying - pre coated flux - a finished product




Application



Single sided PCB most use in the radio, heating machine, cold storage, washing machines and other electrical appliances product, as well as the printer, vending machines, LED lighting, electronic components, such as commercial machine circuit

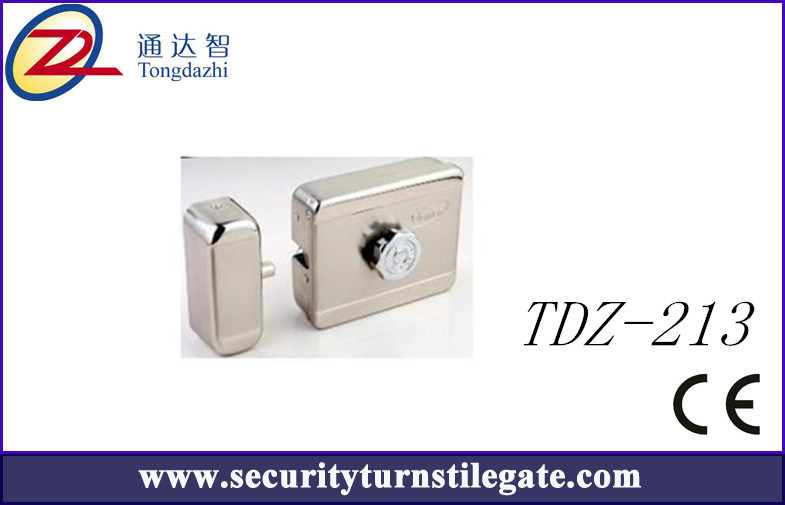

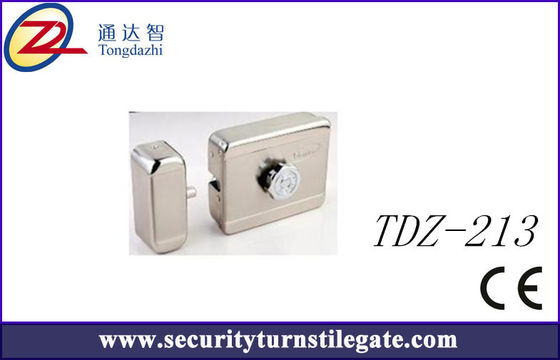

Custom Single cylinder PCB Electric Door Lock / Electrical Door Latch

Custom Single cylinder PCB Electric Door Lock / Electrical Door Latch
Custom Single cylinder PCB Electric Door Lock / Electrical Door Latch

Large Image :  Custom Single cylinder PCB Electric Door Lock / Electrical Door Latch

Product Details:

Place of Origin: China
Brand Name: Tondahzhi
Certification: CE
Model Number: TDZ-213

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: USD 2-15per piece
Packaging Details: paper carton
Delivery Time: 5-7 working days
Payment Terms: T/T, D/A, L/C, Western Union, Western Union, MoneyGram
Supply Ability: 500 pieces per month
Detailed Product Description
Surface Finish: Black Painted Operation Voltage: 12V Or 24V
Voltage: 8~12VAC Quality Guarantee: 1year
High Light:

Electrical Door Lock

,

high security door locks

Custom Single cylinder PCB Electric Door Lock / Electrical Door Latch





Quick Details





·     Place of Origin: Guangdong, China (Mainland)

·     Brand Name: TDZ

·     Model Number: TDZ-213

·     Voltage: 8~12VAC

·     Operation Voltage: 12V or 24V

·     Current : 500mA 12V ,250mA

·     Single cylinder

·     Surface finish: black painted

·     12V AC power to unlock, with printed circuit board (PCB) for AC power input

·      MS 58 solid brass deadbolt, latch, cylinder, and keys

·     Multiple wave standard 5 keys

·     2 x 0.5mm cables

·     With M58 solid brass ball latch polished finish to reduce door close force and noise when door close, 16mm width

·     With micro switch inside to cut off power to protect the coil

·     Reversible deadbolt, 32mm width

·     2.0mm thick steel body and strike

·     High temperature-resistant copper coil

·     55mm cylinder

·     Authority certification: CE approved

·     Quality guarantee: 1 years
