Double Sided PCB

  • High Precision Double Sided PCB suppliers
  • High Precision Double Sided PCB suppliers





Introduction


Double sided circuit board means has a double-sided copper, and metallized holes, that is double-sided copper, and copper are holes inside

Both sides have double wiring board, but to use the wire on both sides. Both sides must be in the room with appropriate electrical connections. "Bridge" between this circuit called vias. Guide hole in the PCB, metal filled or coated with holes, which can be connected to the conductors on both sides. Because dual-panel area twice as big than the single panel, double panel to solve the single-panel wiring staggered because of difficulty (can be turned to the other side of the hole), it is more suitable for use in more complex than single-panel circuit.





Advantages


Compared with single-board: wiring convenient, simple, labor-intensive wiring smaller, shorter line length.





Double Circuit Board Design Steps



     1. Prepare circuit schematics

     2. Create a new file and loaded PCB component package library

     3, planning board

     4, into the network table and components

     5, automatic layout components

     6, layout adjustment

     7, the network density analysis

     8, wiring rules set

     9, automatic routing

     10, manually adjust the wiring

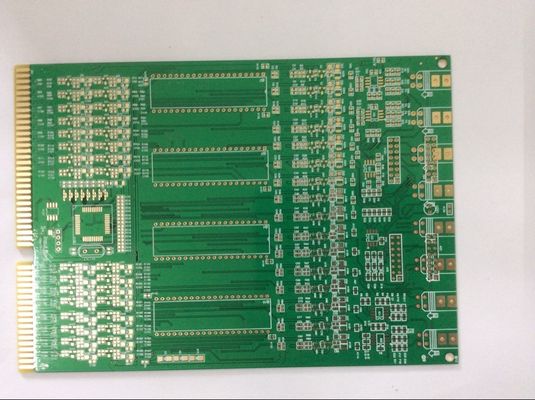

Double-sided PCB

Double-sided PCB
Double-sided PCB

Large Image :  Double-sided PCB

Product Details:

Place of Origin: China
Brand Name: KS
Certification: ISO9001
Model Number: KS16

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: 0.1-2 USD/piece(s)
Packaging Details: vacum packing
Delivery Time: 1-2weeks
Payment Terms: FOB/TT/L/C
Supply Ability: 10000/month
Detailed Product Description
High Light:

Double sided PCB

,

circuit boards

,

PCB

Double-sided PCB

Layer Count : 2 Layers

Raw Materials :FR-4

Board Thickness : 1.6mm

Copper Thickness : 1 OZ

Min trace width /space: 0.15 / 0.15 mm

Min hole size :0.2 mm

Surface treatment :Immersion Gold

Solder Mask: Green

Silkscreen: White
