Double Sided PCB

  • High Precision Double Sided PCB suppliers
  • High Precision Double Sided PCB suppliers





Introduction


Double sided circuit board means has a double-sided copper, and metallized holes, that is double-sided copper, and copper are holes inside

Both sides have double wiring board, but to use the wire on both sides. Both sides must be in the room with appropriate electrical connections. "Bridge" between this circuit called vias. Guide hole in the PCB, metal filled or coated with holes, which can be connected to the conductors on both sides. Because dual-panel area twice as big than the single panel, double panel to solve the single-panel wiring staggered because of difficulty (can be turned to the other side of the hole), it is more suitable for use in more complex than single-panel circuit.





Advantages


Compared with single-board: wiring convenient, simple, labor-intensive wiring smaller, shorter line length.





Double Circuit Board Design Steps



     1. Prepare circuit schematics

     2. Create a new file and loaded PCB component package library

     3, planning board

     4, into the network table and components

     5, automatic layout components

     6, layout adjustment

     7, the network density analysis

     8, wiring rules set

     9, automatic routing

     10, manually adjust the wiring

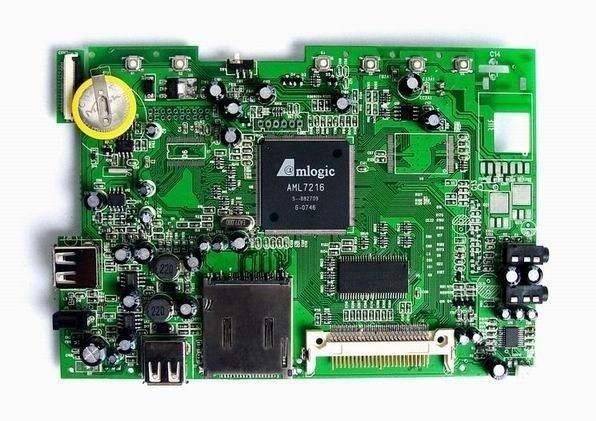

Double sided pcb board for motherboard , printed circuit board assembly

Double sided pcb board for motherboard , printed circuit board assembly
Double sided pcb board for motherboard , printed circuit board assembly

Large Image :  Double sided pcb board for motherboard , printed circuit board assembly

Product Details:

Place of Origin: China
Brand Name: Pacific PCB
Certification: UL,SONY GP,TSO9001:2000,ISO14000,TS16949,QC080000,OHSAS 18001,
Model Number: Pacific 001
Base Material: FR-4
Copper Thickness: 1oz
Board Thickness: 1.2mm
Surface Finishing: HASL

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negociation
Packaging Details: Vacuum packaging
Delivery Time: 5-7 Working days
Payment Terms: T/T,credit cards, direct deposit, paypal
Supply Ability: 1,000,000 square feet / month
Detailed Product Description



Double sided pcb board for motherboard , printed circuit board assembly



Specifications



1.Double-side pcb board
2.HASL surface finishing
3.short delivery time
4.small order are vailabe
5.OEM are provided

How to get a quotation from me?
In order to enable me to make you a quotation, please provide me below information.

1. PCB Files
Please send me your PCB files in gerber file, .pcb or .pcbdoc file by email( sales@pcb-pacific.com).

2. Available PCB Base Material:
FR4 1.6mm, FR4 1.2mm, FR4 1.0mm, FR4 0.8mm, Aluminium 1.6mm

3. Available Copper Thickness:
0.5oz, 1oz, 2oz, 3oz, 4oz

4. Surface Treatment
   Immersion Gold Over Nickle, HASL Lead Free, OSP

5. Available Colors for Solder Mask and Top Overlay(Component Legend)
   Green, Blue, Red, Black, White

One example of common specification for PCB is as below:
FR4 1.6mm, ROHS, 1/1oz, Immersion Gold over Nickle, Green Solder Mask, White Top Overlay


Lead Time:
For small quantity prototypes, it takes about 3~4 days for us to ship the goods out.
For some hard PCB and batch production, it takes about 7 days for shipment.
For PCB assembly, it takes about 10 days for shipment.


Contact us:

Any concerns or questions, please feel free to contact me by email.
Any of your email would be read carefully, I am looking forward to your message.






•  HDI Printed Circuit Board
Pacific PCB is a leading production company specialized in producing small quantity and diverse PCB prototypes. We manage fast time-to market to the standard for quality assurance.

• General Manufacturing Capability

CategoryDescriptionCapability
File FormatsGerber files- preferred274-X,274-D,DPF,ODB++
Drill fileX & Y coordinates, with tool sizes included
SizeMax. finished dimensions580mm x 800mm – Single/ Double-sided
550mm x 800mm – Multilayer
Board ThicknessStandard1.6mm ±10%
Min.Single/ Double-sided:0.2mm ±0.1mm
4-layer:0.4mm ±0.1mm
6-layer:0.6mm ±0.1mm
8-Layer:1.0mm ±0.1mm
10-layer:1.0mm ±0.12mm
12-layer:1.2mm ±0.12mm
32-layer:4.0mm ±0.4mm and above
Max.6.3mm ±10%
Bow and twist< 7/1000
CopperOuter Cu weight1oz ~ 10oz
WeightInner Cu wight1/3oz ~ 6oz
Laminate MaterialsFR4(High TG,halogen-free),FR5,ISOLA(FR408,370HR),TEFLON,POLYIMIDE,ROGERS(RO4003,RO4350,RO4450),Aluminum plate (Single,Double-sided)
FR4 Thickness1.6mm
High TG FR4 (170 deg C)1.6mm
Board CuttingMax. number of layers32
Min. thickness for inner layers (Cu thickness are excluded)0.07mm
DrillingMin. size0.1mm
Max. size6.0mm
Drill Deviation±0.002” (0.050mm)
PTH hole tolerance±0.003” (0.075mm)
NPTH hole tolerance±0.002” (0.050mm)
Angle of Countersink80°,90°,100°,120°
PlatingMin. hole size0.0008”
Aspect ratio20
EtchingTrace width tolerance±20%
Min. trace width / space (1oz finished Cu weight starting from 1/3oz)0.003”/ 0.003”(0.08mm)
Min. trace width / space  (1oz finished Cu weight starting from 1/2oz)0.004”/ 0.004”(0.1mm)
Min. trace width / space (2oz finished Cu weight)0.005”/ 0.005”(0.127mm)
Min. trace width / space  (3oz finished Cu weight)0.008”/ 0.008”(0.2mm)
Min. trace width / space (4oz finished Cu weight)0.012”/ 0.012” (0.3mm)
Inner LayersMin. space from drilling to inner pattern0.1mm
Min. space from annular ring to inner pattern0.1mm
Layer-to-layer registration±0.003”(0.08mm)
Solder MaskColorgreen,light green,matte green,white,extreme white,black,matte black,dark brown,yellow,red,blue,transparent
Min. solder mask clearance0.003”
Thickness0.0004”
SilkscreenColorWhite,black,yellow,red,blue,green
Min. trace width0.005”
Min. size0.028” / 0.028”
Electrical TestAOI Y
Flying Probe TesterY
Controlled ImpedanceTolerance±10%
Impedance testerTektronix TDS8200
RoutingEnd Mills Test±0.15mm(0.006”)
CNC Tolerance±0.15mm(0.006”)
V-Cut Depth±0.1mm(0.004”)
V-cut angle deviation±0.1mm(0.004”)
Semi-holeY
Surface FinishHASL,HASL pb free,immersion gold,immersion silver,immersion tin,O.S.P (Entek),S/G plating,ENEPIG,G/F plating,carbon…
Blind and Buried Vias3+N+3Y
Resin,hole-filling ink,PTHY
OthersUL Cert.Y
ISO Cert.ISO9001/ISO14001/RoHS

Pacific PCB’s transparent factory allows our customers to witness the fascinating process of PCB production!



Double sided pcb board for motherboard , printed circuit board assembly
