Introduction
Double sided circuit board means has a double-sided copper, and metallized holes, that is double-sided copper, and copper are holes inside
Both sides have double wiring board, but to use the wire on both sides. Both sides must be in the room with appropriate electrical connections. "Bridge" between this circuit called vias. Guide hole in the PCB, metal filled or coated with holes, which can be connected to the conductors on both sides. Because dual-panel area twice as big than the single panel, double panel to solve the single-panel wiring staggered because of difficulty (can be turned to the other side of the hole), it is more suitable for use in more complex than single-panel circuit.
Advantages
Compared with single-board: wiring convenient, simple, labor-intensive wiring smaller, shorter line length.
Double Circuit Board Design Steps
1. Prepare circuit schematics
2. Create a new file and loaded PCB component package library
3, planning board
4, into the network table and components
5, automatic layout components
6, layout adjustment
7, the network density analysis
8, wiring rules set
9, automatic routing
10, manually adjust the wiring
Product Details:
Payment & Shipping Terms:
|
| Material: | Polymide | Surface Plating: | ENIG |
|---|---|---|---|
| Layer: | 2 Layers | Thickness: | 0.15mm |
| Copper Thickness: | 1oz | Reinforcement: | Polymide |
| High Light: | Flexible Pcb Board,Pcb Custom |
||

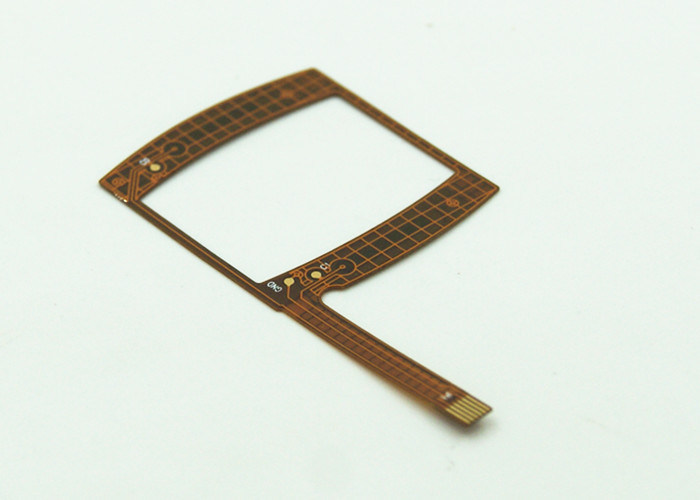

Double Sided PCB Flexible Printed Circuit Boards with Gold Plating PI Reinforcement
|
Item |
Description | Common | Special |
| 1 | NO. OF Layer | 1--6 | |
| 2 | FINISHED BOARD SIZE(MAX) | 250*500mm | OK |
| 3 | FINISHED BOARD SIZE(MIN) | 10*15mm | OK |
| 4 | BOARD THICKNESS(MAX) | 0.016"(0.4mm) | OK |
| 5 | BOARD THICKNESS(MIN) | 0.00328"(0.085) | OK |
| 6 | FINISHED BOARD THICKNESS FOLERANCE 0.085mm≦Board Thickness＜0.4mm | ±2mil(±0.05mm) | OK |
| 7 | DRILL HOLE DIAMETER(MAX) | 0.236"(6.0mm) | OK |
| 8 | DRILL HOLE DIAMETER(MIN) | 0.010"(0.25mm) | OK |
| 9 | For Machine Drill FINISHED VIA DIAMETER(MIN) | 0.008"(0.2mm) | OK |
| 10 | OUTER LAYER BASE COPPER THICKNESS(MIN) | 1/2OZ(0.01778mm) | OK |
| 11 | OUTER LAYER BASE COPPER THICKNESS(MAX) | 1OZ(0.0355mm) | OK |
| 12 | INNER LAYER DIELECTRIC THICKNESS(MIN) | 0,0127mm(1/2mil) | OK |
| 13 | INNER LAYER DIELECTRIC THICKNESS(MAX) | 0.0254mm(1mil) | OK |
| 14 | BASE.MATERIAL | PI(260℃ TG) | OK |
| 15 | HOLE DIAMETER TOLERANCE(PTH) | ±2mil(±0.05mm) | ±1.5mil |
| 16 | HOLE DIAMETER TOLERANCE(NPTH) | ±1mil(±0.025mm) | ±1.5mil |
| 17 | HOLE POSITION TOLERANCE (COMPARED WITH CAD DATA) | ±3mil(±0.076mm) | OK |
| 18 | PTH HOLE COPPER THICKNESS | ≧0.5mil(≧0.0125mm) | OK |
| 19 | LAVER DESIGN LINE WIDTH/SPACING(MIN) | 4mil/4mil(0.1016mm/0.1016mm)Multilayer 2.5mil/2.5mil(0.0635mm/0.06 35mm)Double side,single layer 0.5OZ | OK |
| 20 | TOLERANCE AFTER ETCHING | ≦±20%(common) | ±10% for impedance |
| 21 | IMAGE TO IMAGE TOLERANCE(MIN) | ±5mil(±0.127mm) ±4mil | ±3mil(0.076mm) |
| 22 | IMAGE TO EDGE TOLERANCE(MIN) | ±4mil(±0.1mm) | OK |
| 23 | LEGEND MASK REGISTARTION(MIN) | ±6mil(±0.15mm) | OK |
| 24 | SOLDERMASK REGISTARTION(MIN) | ±6mil(±0.15mm) | OK |
| 25 | SOLDERMASK THICKNESS(MIN) | 10UM | OK |
| 26 | CVL REFISTRATION(MIN) | 8mil(4mil) | OK |
| 27 | CVLL Pressure and glue quantity (MIN) | 5.6mil(2.4mil) | OK |
| 28 | SOLDER TIN LEAD THICKNESS ON FINGER OR PAD.(MAX) (MIN)AND TOLEARANCE THICKNESS | (1.0mil)(0.1mil) ±0.30mil | ±0.15mil |
| 29 | GOLD FINGER NICKEL THICKNESS(MAX) | 200u"±100u" | OK |
| 30 | SOLDER THICKNESS ON PADS(HAL)(MIN) | 0.1mil | OK |
| 31 | NICKEL THICKNESS FOR ELECTROLESS NICKEL AND INMERSION GOLD(MEASLRED AT THE MINTMUM POINT)(MAX) | 200u"±50u"/1-4u" | OK |
| 32 | SOLDER THICKNESS ON PADS (HAL)(MAX) | 1.2mil | OK |
| 33 | SOLDERTHICKNESS ON PADS (HAL)(MIN) | 0.1mil | OK |
| 34 | PUNCHING HOLE (MIN-MAX)DIAMETER TOLERANCE | 0.5-6.0mm±0.05mm | OK |
| 35 | THE TOLERANCE OF PASTEING ADHESIVE AND STIFFER | ±0.20mm | ±0.10mil |
| 36 | PUNCHING DIE DIMENSION TOLERANCE (EDGE TO EDGE)(STEELDIE)Steel Die | ±4mil(±0.1mm) | ±2mil |
| 37 | PUNCHING DIE DIMENSION TOLERANCE (HOLE TO EDGE)(STEELDIE)Steel Die | ±4mil(±0.1mm) | ±2mil |
| 38 | PUNCHING DIE DIMENSION TOLERANCE (HOLE TO EDGE)(STEELDIE)cutting die | ±8mil(±0.2mm) |
±6mil |
Double sided flexible circuit (FPC) consists of double-sided copper clad material with top and bottom cover films (PI or Green/Yellow Oil, Carbon Ink, etc). Two
conductive layers with an insulating layer between, plus conver layers on outer layer. The cover films are pre-routed to access copper from both sides using plated thru
holes(PTH).
