Single Sided PCB

  • High Precision Single Sided PCB suppliers
  • High Precision Single Sided PCB suppliers
  • High Precision Single Sided PCB suppliers
  • High Precision Single Sided PCB suppliers
  • High Precision Single Sided PCB suppliers
  • High Precision Single Sided PCB suppliers


Focus on the most basic of PCB, components focused on one side, the other side of the wire is concentrated.Because wires only appear on one side, so this kind of PCB is called single sided PCB.

Single panel wiring diagram is given priority to with the network printing, that is, in the copper surface printed on resistance agent, to prevent welding resistance after etching printed on mark, and then punching processing way to complete the parts guide hole and the appearance.In addition, part of a small amount of diverse products, are using photosensitive resistance agent forming pattern of the photographic method.

Operating temperatures range from 130 C to 230 C.  Single sided boards are available with surface finishes including Organic surface protectant (OSP), Immersion Silver, Tin, and Gold plating along with both leaded or lead-free Hot Air Solder Level (HASL).






Single sided PCB base material in paper phenolic copper paper laminated board, epoxy resin copper laminated plate is given priority to.





First, the copper foil to be etched, etc. Process to obtain a circuit required, a protective film to be drilled to expose the corresponding pad. After cleaning and then rolling method to combine the two. Then the pad portion exposed gold plating or tin protection.



Production Process:

Single copper-clad plate - blanking - photochemical method/screen printing image transfer - remove corrosion was printed - cleaning, dry - hole machining - shape - dry cleaning - printing resistance welding coating - cure - printing mark symbol - cure - dry cleaning drying - pre coated flux - a finished product




Single sided PCB most use in the radio, heating machine, cold storage, washing machines and other electrical appliances product, as well as the printer, vending machines, LED lighting, electronic components, such as commercial machine circuit

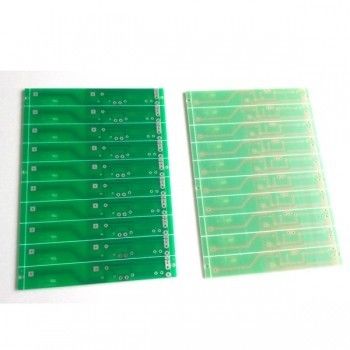

Electronic FR4 Single-sided PCB

Electronic FR4 Single-sided PCB
Electronic FR4 Single-sided PCB

Large Image :  Electronic FR4 Single-sided PCB

Product Details:

Place of Origin: China
Brand Name: Sonlin
Certification: ROHS, UL, ISO9001-2000, ISO14001
Model Number: FR4 PCB-02

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: FOB US $ 0.018- 0.584 / Inch
Packaging Details: - Inner packing: Vacuum packing / Plastic bag - Outer packing: Standard carton packing
Delivery Time: Depends on your quantity
Payment Terms: T/T ; Western Union ; Paypal
Supply Ability: 40,000 Square Meter/Square Meters / Month
Detailed Product Description

Electronic FR4 Single-sided PCB


Manufacturer Specifications:

  • Layer: 1 layer
  • Base Material: FR-4
  • Copper Thickness: 1OZ
  • Board Thickness: 1.6mm
  • Min. Hole Size: 0.15mm
  • Min. Line Width: 0.15mm
  • Min. Line Spacing: 0.1mm
  • Surface Finishing: HASL
  • Legent color: White




At the most basic PCB, parts focused on one side, the other side of the wire is concentrated. Because the wire only in one side, so we call this is called single-sided PCB board. There are many single-sided circuit boards strict limits on the design lines.


Production process


Single-sided copper clad board - cutting - photochemical method / screen printing image transfer - removing the resist printed material - washing, drying - Hole - shape processing - washing and drying - printed solder coatings - Curing - printed marks, - curing - cleaning and drying - pre-coated flux - drying a finished product.


Single-sided circuit board substrate material with copper sheets of paper phenolic laminates, paper laminates, epoxy-based copper sheets. Most single-sided circuit boards used in radios, heaters, refrigerators, washing machines and other appliances, as well as printers, vending machines, circuits, electronic components and other business machines, single-sided printed circuit boards advantage of low prices.
PCB Packing


- Inner packing: Vacuum packing / Plastic bag
- Outer packing: Standard carton packing


Contact us to check out great PCBs and full details, we will reply to you with prices in one working day!

  • OEM services provided
  • Certificate: ROHS, UL, ISO9001-2000, ISO14001
  • Factory direct price
  • Paypal availabl
