Introduction
Double sided circuit board means has a double-sided copper, and metallized holes, that is double-sided copper, and copper are holes inside
Both sides have double wiring board, but to use the wire on both sides. Both sides must be in the room with appropriate electrical connections. "Bridge" between this circuit called vias. Guide hole in the PCB, metal filled or coated with holes, which can be connected to the conductors on both sides. Because dual-panel area twice as big than the single panel, double panel to solve the single-panel wiring staggered because of difficulty (can be turned to the other side of the hole), it is more suitable for use in more complex than single-panel circuit.
Advantages
Compared with single-board: wiring convenient, simple, labor-intensive wiring smaller, shorter line length.
Double Circuit Board Design Steps
1. Prepare circuit schematics
2. Create a new file and loaded PCB component package library
3, planning board
4, into the network table and components
5, automatic layout components
6, layout adjustment
7, the network density analysis
8, wiring rules set
9, automatic routing
10, manually adjust the wiring
Product Details:
Payment & Shipping Terms:
|
| High Light: | fr4 circuit board,custom pcb board |
||
|---|---|---|---|

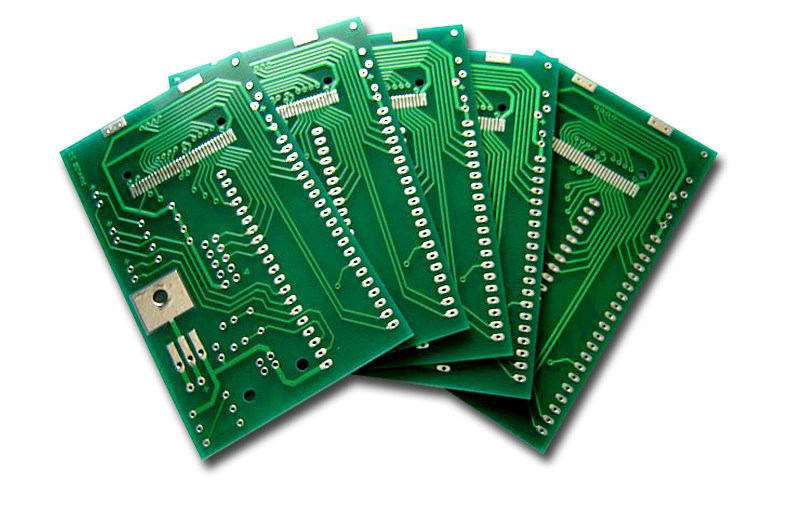

Electronics Multilayer PCB Prototyping Service For Card Reader / Speaker
Description:
We offer manufacturing service of custom PCB boards from single-side, double side and multilayer. With decade’s years of experience in this PCB field, we are now serving customers from more than 40 countries in various electronic industries. Based in China, Agile Circuit mainly specializes in prototypes and medium volume custom PCB boards manufacturing with high quality and low cost.
Applications:
Digital Theater Systems, Card Reader, Speaker, Digital Wrist Watch, Audio and Video Equipment, CD Player, AM/FM/Radio/Alarm Clock, Television, Guitar electronics, Calculator, Digital Coffee Pot, Digital Cameras CCD- and CMOS-cameras, Microwave Oven, Home Alarm Systems, Housing electronics, Cooling and Washing machine, Home Computer, Home Theater/Stereo Surround Sound System, Cable Television Converter Box, Hand Held Video Games, Digital and analog Switching, Remote control electronic toys, Disk Drive duplication systems, LOJACK auto recovery system, Electronic Television Audience Measurement Systems/Electronic Audience Measurement Systems ect
Our advantages:
Our professional engineer can provide PCB Prototype
Quick and economic delivery term
Provides PCB prototype, and medium and low volume quick board services
Two hours quote response, 24 hours quick-turn produce
FR4 double-sided and single-sided sample in 24 hours
Now get best PCB boards and Price from East PCB.
> Prototypes PCB builds, reduce your prototyping cost with our great quotation.
> Ready to production, no repeat tooling cost.
> Faster lead time, Best service.
> Quote now, get more cheaper price
