Rigid PCB Board

  • High Precision Rigid PCB Board suppliers
  • High Precision Rigid PCB Board suppliers





Introduction


Rigid flex printed circuit boards are boards using a combination of flexible and rigid board technologies in an application. Most rigid flex boards consist of multiple layers of flexible circuit substrates attached to one or more rigid boards externally and/or internally, depending upon the design of the application. The flexible substrates are designed to be in a constant state of flex and are usually formed into the flexed curve during manufacturing or installation.

Rigid flex designs are more challenging than the design of a typical rigid board environment, as these boards are designed in a 3D space, which also offers greater spatial efficiency. By being able to design in three dimensions rigid flex designers can twist, fold and roll the flexible board substrates to achieve their desired shape for the final application's package.




Material Types


FR-4, CEM-1,CEM-3, IMS, High TG,High Frequency, Halogen Free,Aluminum base, metal core base





Surface Treatment


HASL(LF), Flash gold, ENIG,OSP(Lead free compatible), Carbon ink,
Peelable S/M, Immersion Ag/Tin, Gold finger plating, ENIG+ Gold finger




Production Process



Whether producing a rigid flex prototype or production quantities requiring large scale rigid flex PCB fabrication and PCB assembly, the technology is well proven and reliable. The flex PCB portion is particularly good in overcoming space and weight issues with spatial degrees of freedom.

Careful consideration of flex-rigid solutions and a proper assessment of the available options at the early stages in the rigid flex PCB design phase will return significant benefits. It is critical the rigid flex PCB fabricator is involved early in the design process to ensure the design and fab portions are both in coordination and to account for final product variations.

The rigid flex manufacturing phase is also more complex and time consuming than rigid board fabrication. All the flexible components of the rigid flex assembly have completely different handling, etching and soldering processes than rigid FR4 boards.




Application


LED, telecommunication, computer application, lighting, game machine, industrial control, power, automobile and high-end consumer electronics, ect.a

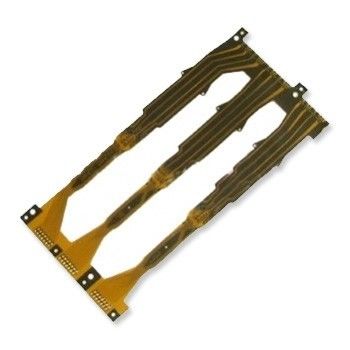

Flexible Rigid PCB Board with 4 Layer

Flexible Rigid PCB Board with 4 Layer
Flexible Rigid PCB Board with 4 Layer

Large Image :  Flexible Rigid PCB Board with 4 Layer

Product Details:

Place of Origin: Flexible Rigid PCB Board with 4 Layer
Brand Name: Flexible Rigid PCB Board with 4 Layer
Certification: UL, ISO 9001, ISO 14001
Model Number: Flexible Rigid PCB Board with 4 Layer

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: FOB USD0.15~6 / Piece
Packaging Details: Inner package: Vacuum package+dryer Outer package: Carton package+Bulb package
Delivery Time: Depends on your quantity
Payment Terms: T/T ; Western Union ; Paypal
Supply Ability: 40,000 Square Meter/Square Meters / Month
Detailed Product Description

Flexible Rigid PCB Board with 4 Layer

Our PCB products experiences include telecommunications, automatic mobile assemblies, consumer electronics, computer, medical equipment, industrial products and others no matter it is quick-turn prototype, short-run or high volume mass production.



The flex-rigid pcb board is now available with OEM service and ISO9001:2008, UL, RoHS, ISO14000 certificates. Also features ENIG surface finish, 1oz copper thickness and 1.6mm board thickness.



We're specializing in rigid PCBflex PCB and rigid-flex PCB, meanwhile, we supply all kinds of rigid and flex printed circuit boards. we can offer you a wide range of selection of rigid-flex PCB at affordable price. Welcome to visit us!



Specifications:



  • Layer: 4 layer
  • Base Material: PI
  • Copper Thickness: 1oz
  • Board Thickness: 1.6mm
  • Min. Hole Size: 0.2mm
  • Min. Line Width: 4mil
  • Min. Line Spacing: 4mil
  • Surface Finishing: ENIG
  • Colour: yellow



Flexible Rigid PCB Board with 4 Layer





Applications:



  • Medical apparatus
  • Automobiles
  • Aerospace
  • Industrial equipment
  • Detecting instrument
  • Smart-home controller
  • Consumer electronics







Flexible Rigid PCB Board with 4 Layer







The Relevant Product Parames



Product name
Flexible PCB
Rigid PCB
Rigid-flex PCB
Layers
1-6L
1-28L
1-8L
Base Material
PI
Alu,FR1,FR2,FR4,CEM1,CEM2,cte
PI,FR4
Copper thickness
1-3OZ
1-6OZ
1-6OZ
Min.Hole size
0.1mm
Min.Line Width
0.1mm
Solder masker color
Green, red, black, white, yellow
Silkscreen color
Black, white, yellow







FPC Manufacturer Capability:



Layers
1-6layers
Finished Board Thickness
0.1-0.2mm
Max.(Min.)panel size
600*250mm
Available Laminates Material
PI, PET,ED, RA
Finished Board Thickness tolerance
±10%
Finished hole diameter(Min)
0.2mm
Finished Hole diameter(Max)
6mm
NPTH Hole diameter tolerance
±0.05mm
PTH Hole Diameter tolerance
±0.05mm
Copper foil thickness
9/12/18/35/70um
Circuit width/spacing(Min)
0.075mm
Surface Finished type
immersion tin
immersion gold
OSP
plated gold
plate tin
Gold flash Ni/Au thickness
1-3U
Immersion Tin thickness
6-12um
Tin platig thickeess
10-15um
Drill hole position tolerance
±0.075mm
Punching dimension tolerance
±0.05mm





Our Production Capability for PCB :



Layer

1 to 28 layers

Material type

FR-4, CEM-1, CEM-3, High TG, FR4 Halogen Free, Rogers

Board thickness

0.21mm to 7.0mm

Copper thickness

0.5 OZ to 7.0 OZ

Copper thickness in hole

>25.0 um (>1mil)



Size

Max. Board Size: 23 × 25 (580mm×900mm)

Min. Drilled Hole Size: 3mil (0.075mm)

Min. Line Width: 3mil (0.075mm)

Min. Line Spacing: 3mil (0.075mm)



Surface finishing

HASL / HASL lead free, HAL, Chemical tin, Chemical Gold, Immersion Silver/Gold, OSP, Gold plating



Tolerance



Shape tolerance: ±0.13

Hole tolerance: PTH: ±0.076              NPTH: ±0.05

Certificate

UL, ISO 9001, ISO 14001

Special requirements

Buried and blind vias+controlled impedance +BGA

Profiling

Punching, Routing, V-CUT, Beveling

Provides OEM services to all sorts of printed circuit board assembly as well as electronic encased products.





Contact us to check out great PCBs and full details, we will reply to you with prices in one working day!

- OEM services provided
- Certificate: ROHS, UL, ISO9001-2000, ISO14001
- Factory direct price

Our advantages:

1. We’ll return the tooling cost and give discount for repeat order more than 3 square meters.

2. Within 6 hours, quotations and suggestions can be given after checking the gerber.

3. If you have schematic without gerber, pleasure to design it for you.

You are welcomed to contact us or visit us at any time. Thanks!


Contact Us:

Sales Manager: Angle

Email:sales@sonlinpcb.com

Skype:anglepcb

Web: www.sonlinpcb.com

Tex/Fax:86-0311-80661162

Mobile: 86-15717601162
