Introduction：
Focus on the most basic of PCB, components focused on one side, the other side of the wire is concentrated.Because wires only appear on one side, so this kind of PCB is called single sided PCB.
Single panel wiring diagram is given priority to with the network printing, that is, in the copper surface printed on resistance agent, to prevent welding resistance after etching printed on mark, and then punching processing way to complete the parts guide hole and the appearance.In addition, part of a small amount of diverse products, are using photosensitive resistance agent forming pattern of the photographic method.
Operating temperatures range from 130 C to 230 C. Single sided boards are available with surface finishes including Organic surface protectant (OSP), Immersion Silver, Tin, and Gold plating along with both leaded or lead-free Hot Air Solder Level (HASL).
Material：
Single sided PCB base material in paper phenolic copper paper laminated board, epoxy resin copper laminated plate is given priority to.
Structure：
First, the copper foil to be etched, etc. Process to obtain a circuit required, a protective film to be drilled to expose the corresponding pad. After cleaning and then rolling method to combine the two. Then the pad portion exposed gold plating or tin protection.
Production Process：
Single copper-clad plate - blanking - photochemical method/screen printing image transfer - remove corrosion was printed - cleaning, dry - hole machining - shape - dry cleaning - printing resistance welding coating - cure - printing mark symbol - cure - dry cleaning drying - pre coated flux - a finished product
Application
Single sided PCB most use in the radio, heating machine, cold storage, washing machines and other electrical appliances product, as well as the printer, vending machines, LED lighting, electronic components, such as commercial machine circuit
Product Details:
Payment & Shipping Terms:
|
| Material: | FR4 | Board Thickness: | 1.6mm |
|---|---|---|---|
| Finish Copper: | 1OZ | SOlder Mask: | Green |
| Finished: | V-Cut/CNC | ||
| High Light: | single layer pcb,single sided circuit board |
||

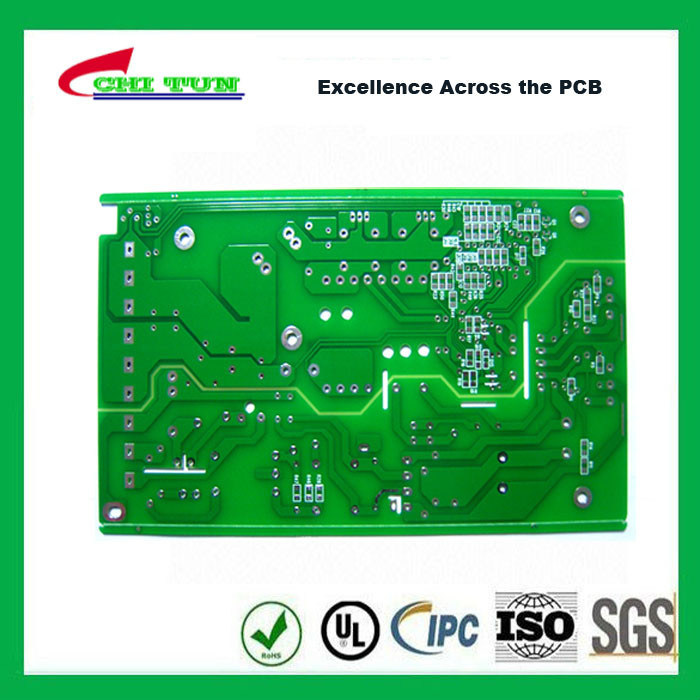

FR4 1.6MM HASL Single Sided PCB Board Green Solder Mask PCB 1OZ
|
|
Product Description |
|
Model Number: |
CTE-001 |
|
Number of Layer: |
1layer |
|
Material: |
FR4 |
|
Finish Thickness: |
1.6mm |
|
Finish copper: |
1OZ |
|
Surface Finish: |
HASL |
|
|
Green solder mask |
|
|
White silkscreen |
|
|
CNC routing |
|
Place of Origin: |
China |
|
Brand Name: |
CHITUN |
|
Certification: |
UL,ROHS,ISO |
|
Standard: |
IPC or base on customers' requestion |
CTE Leading the Printed Circuit Board Industry
With over 15years of experience, Chi Tun Electronics LTD is rapidly becoming the logical choice for PCB manufacturers in China. We're proud to manufacture high-quality products. We can handle production orders on 1 layers all the up to 24 layers. and we have quick turn , Small volume and large volume service type without MOQ.
Technology Capability
|
Feature |
2015 |
2016 |
2017 |
|
|
Base Material |
CEM1,CEM3, Aluminum base material |
CEM1,CEM3, Aluminum base material |
CEM1,CEM3, Aluminum base material |
|
|
Max. Layer Count |
24 |
30 |
32 |
|
|
Max. PCB Size (max.) |
558mm X 660mm |
558mm X 660mm |
558mm X 660mm |
|
|
Base copper |
1/3 oz - - 5 oz |
1/3 - - 5 oz |
1/3 - - 5 oz |
|
|
Copper thickness (outer) |
6 oz |
6 oz |
6 oz |
|
|
Max. Board Thickness mm (mil) |
3.4 (134) |
3.4 (134) |
3.4 (134) |
|
|
Min. Board Thickness mm (mil) |
0.1 (4) |
0.1 (4) |
0.1 (4) |
|
|
Min. Line Width / Spacing |
Inner um (mil) |
75/100 (3 4) |
75/75 (3/3) |
75/75 (3/3) |
|
Outer um (mil) |
100/100 (4/4) |
75/75 (3/3) |
75/75 (3/3) |
|
|
Min. Mechanical Drill Size (mm) |
0.2 |
0.2 |
0.2 |
|
|
Min. HWTC um (mil) |
175 (7) |
175 (7) |
175 (7) |
|
|
Min. Soldermask Opening um (mil) |
50 (2) |
50 (2) |
50 (2) |
|
|
Finest SMT Pitch mm (mil) |
0.40 (16) |
0.45 (18) |
0.45 (18) |
|
|
BGA Device Pitch (Base Copper 1oz) (mil) |
0.25-0.3 (10-12) |
0.25-0.3 (10-12) |
0.25-0.3 (10-12) |
|
|
Type of Surface Finish |
HASL, lead free HASL, ENIG, Flash gold, Thick gold, Selective gold plating, OSP, Selective OSP /HASL, Immersion Tin, Immersion Silver |
HASL, lead free HASL, ENIG, Flash gold, Thick gold, Selective gold plating, OSP, Selective OSP /HASL, Immersion Tin, Immersion Silver |
HASL, lead free HASL, ENIG, Flash gold, Thick gold, Selective gold plating, OSP, Selective OSP /HASL, Immersion Tin, Immersion Silver |
|
|
Impedance Control |
+/- 10% |
+/- 8% |
+/- 8% |
|
|
Warpage |
0.7% |
0.5% |
0.5% |
|
Special Technology: Impendence Control, Differencial PCB printed circuit board, Peelabemask PCB , High Density PCB HDI, Heavy copper PCB ,Metal Core circuit boards ,Copper Clad PCB printed circuit board, Blind & Buried Vias, Laser Drilled Vias, Burn-in Boards,Flex Boards, Rigid Flex PCB printed circuit board , Edge half plated thru hole Circuit boards, Selective Plating Hard Gold, Special Thin or Special Thick PCB board, PCB with Resin Plugged Hole
Advantage:
Trade Terms:
|
Minimum Order Quantity: |
1pcs |
|
Price: |
negotiation |
|
Packaging Details: |
box |
|
Delivery Time: |
quick turn and normal type |
|
Payment Terms: |
TT, LC, and others base on negotiation |
|
Supply Ability: |
1, 000, 000PCS/week |
Contact Person: admin
