Flexible PCB Board

  • High Precision Flexible PCB Board suppliers
  • High Precision Flexible PCB Board suppliers
  • High Precision Flexible PCB Board suppliers
  • High Precision Flexible PCB Board suppliers





Introduction:



Flex PCBs, also known as flexible printed circuits or flexible electronics, provide greater options for designers and engineers when assembling electronic circuits.

They are constructed from flexible, high-performance plastic material, usually polyimide, which enables the board to bend or "flex" during use. This flexibility opens them up to use in a wide range of applications.

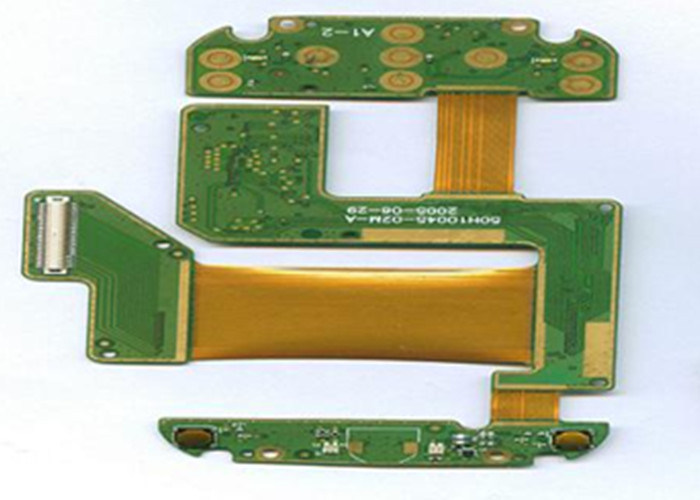

FR4 + PI 4 Layer Rigid Flexible PCB ENIG Finish Green Masking White Lengend

FR4 + PI 4 Layer Rigid Flexible PCB ENIG Finish Green Masking White Lengend
FR4 + PI 4 Layer Rigid Flexible PCB ENIG Finish Green Masking White Lengend

Large Image :  FR4 + PI 4 Layer Rigid Flexible PCB ENIG Finish Green Masking White Lengend

Product Details:

Place of Origin: China
Brand Name: LT
Certification: ISO 9001:2008, UL

Payment & Shipping Terms:

Minimum Order Quantity: NO MOQ
Price: USD
Payment Terms: T/T, Western Union, Paypal
Detailed Product Description
Material: Polymide, FR4 Surface Plating: ENIG
Layer: 4 Layers Board Thickness: 1.0mm For Rigid PCB, 0.15mm For FPC
Copper Thickness: 1oz Soldermask: Green
High Light:

Printed Circuit Board Fabrication

,

Printed Circuit Board Pcb



High precision prototype

PCB bulk production

Max Layers

1-28 layers

1-14 layers

MIN Line width(mil)

3mil

4mil

MIN Line space(mil)

3mil

4mil

Min via (mechanical drilling)

Board thickness≤1.2mm

0.15mm

0.2mm

Board thickness≤2.5mm

0.2mm

0.3mm

Board thickness>2.5mm

Aspect Ration≤13:1

Aspect Ration≤13:1

Aspect Ration

Aspect Ration≤13:1

Aspect Ration≤13:1

Board thickness

MAX

8mm

7mm

MIN

2 layers:0.2mm;4 layers:0.35mm;6 layers:0.55mm;8 layers:0.7mm;10 layers:0.9mm

2 layers:0.2mm;4 layers:0.4mm;6 layers:0.6mm;8layers:0.8mm

MAX Board size

610*1200mm

610*1200mm

Max copper thickness

0.5-6oz

0.5-6oz

Immersion Gold/

Gold Plated Thickness

Immersion Gold:Au,1—8u”
Gold finger:Au,1—150u”
Gold Plated:Au,1—150u”
Nickel Plated :50—500u”



Hole copper thick

25um 1mil

25um 1mil

Tolerance

Board thickness

Board thickness≤1.0mm:+/-0.1mm
1.0mm<Board thickness≤2.0mm:+/-10%
Board thickness>2.0mm:+/-8%

Board thickness≤1.0mm:+/-0.1mm
1.0mm<Board thickness≤2.0mm:+/-10%
 Board thickness>2.0mm:+/-8%

Outline Tolerance


≤100mm:+/-0.1mm
100< ≤300mm:+/-0.15mm
 >300mm:+/-0.2mm

≤100mm:+/-0.13mm
100<  ≤300mm:+/-0.15mm
 >300mm:+/-0.2mm

Impedance

±10%

±10%

MIN Solder mask bridge

 0.08mm

 0.10mm

Plugging Vias capability

 0.25mm--0.60mm

 0.70mm--1.00mm


Multi-Layer flexible circuit is a combination of single and/or double-sided flex circuits laminated with thermoset adhesive onto a single and/or double-sided FR-4 clad material.  Three or more flexible conductive layers with flexible insulating layers between each one, which are interconnected by way of plated through holes (PTH). Layers range from 1 to 8 layers in the flex area and up to 10 layers in the rigid area.
