Introduction
Double sided circuit board means has a double-sided copper, and metallized holes, that is double-sided copper, and copper are holes inside
Both sides have double wiring board, but to use the wire on both sides. Both sides must be in the room with appropriate electrical connections. "Bridge" between this circuit called vias. Guide hole in the PCB, metal filled or coated with holes, which can be connected to the conductors on both sides. Because dual-panel area twice as big than the single panel, double panel to solve the single-panel wiring staggered because of difficulty (can be turned to the other side of the hole), it is more suitable for use in more complex than single-panel circuit.
Advantages
Compared with single-board: wiring convenient, simple, labor-intensive wiring smaller, shorter line length.
Double Circuit Board Design Steps
1. Prepare circuit schematics
2. Create a new file and loaded PCB component package library
3, planning board
4, into the network table and components
5, automatic layout components
6, layout adjustment
7, the network density analysis
8, wiring rules set
9, automatic routing
10, manually adjust the wiring
Product Details:
Payment & Shipping Terms:
|
| High Light: | Double Side Pcb,Making Printed Circuit Boards |
||
|---|---|---|---|

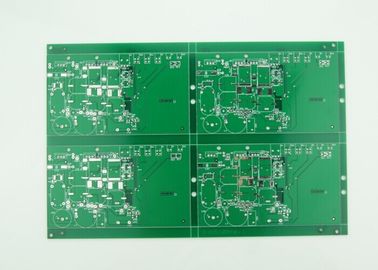

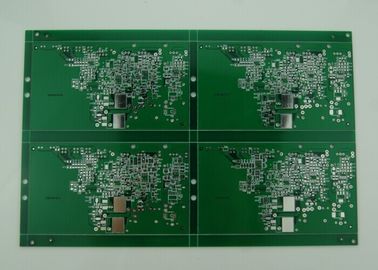

Green Solder Mask 2 oz PCB High Precision Prototype PCB Fabrication
Key Specifications/Special Features
| Number. of Layers: | 2 |
| Laminate Material: | FR4 |
| Surface Finish: | HASL |
| Copper Thickness: | 2 OZ after plating |
| Board Thickness: | 1.6mm (0.062”) |
| Board Size: | 10.50” X 6.82” |
| Color of Mask: | Green |
| Color of Silkscreen: | White with Non-Conductive Ink |
| Flammability: | UL 94V-0 |
| Workmanship: | Compliance with IPC-A-600 & IPC-6012 CLASS II |
| Thermal Conductivity | - |
Product Application
PCBs are applied to a wide range of High-tech industries such as: LED, telecommunication, computer application, lighting, game machine, industrial control, power, automobile and high-end consumer electronics, ect. By unremitting work and effort to the marketing, products exports to American, Canada, Europe counties, Africa and other Asia-pacific countries
Capacity
| High precision prototype | PCB bulk production | ||
| Max Layers | 1-28 layers | 1-14 layers | |
| MIN Line width(mil) | 3mil | 4mil | |
| MIN Line space(mil) | 3mil | 4mil | |
| Min via (mechanical drilling) | Board thickness≤1.2mm | 0.15mm | 0.2mm |
| Board thickness≤2.5mm | 0.2mm | 0.3mm | |
| Board thickness＞2.5mm | Aspect Ration≤13:1 | Aspect Ration≤13:1 | |
| Aspect Ration | Aspect Ration≤13:1 | Aspect Ration≤13:1 | |
| Board thickness | MAX | 8mm | 7mm |
| MIN | 2 layers:0.2mm;4 layers:0.35mm;6 layers:0.55mm;8 layers:0.7mm;10 layers:0.9mm | 2 layers:0.2mm;4 layers:0.4mm;6 layers:0.6mm;8layers:0.8mm | |
| MAX Board size | 610*1200mm | 610*1200mm | |
| Max copper thickness | 0.5-6oz | 0.5-6oz | |
|
Immersion Gold/ Gold Plated Thickness |
Immersion Gold:Au,1—8u” Gold finger:Au,1—150u” Gold Plated:Au,1—150u” Nickel Plated :50—500u” |
||
| Hole copper thick | 25um 1mil | 25um 1mil | |
| Tolerance | Board thickness | Board thickness≤1.0mm:+/-0.1mm 1.0mm<Board thickness≤2.0mm:+/-10% Board thickness>2.0mm:+/-8% |
Board thickness≤1.0mm:+/-0.1mm 1.0mm<Board thickness≤2.0mm:+/-10% Board thickness>2.0mm:+/-8% |
| Outline Tolerance | ≤100mm:+/-0.1mm 100< ≤300mm:+/-0.15mm >300mm:+/-0.2mm |
≤100mm:+/-0.13mm 100< ≤300mm:+/-0.15mm >300mm:+/-0.2mm |
|
| Impedance | ±10% | ±10% | |
| MIN Solder mask bridge | 0.08mm | 0.10mm | |
| Plugging Vias capability | 0.25mm--0.60mm | 0.70mm--1.00mm | |
We have passed ISO9001-2000 quality control system authentication and certified by UL. To further expand international market, we are implementing clean production and working hard meeting the requirements of ISO:TS16949. We will continuously take the advantage of our technology, personnel, marketing, etc, to serve our customers from all over the word by high quality product.
