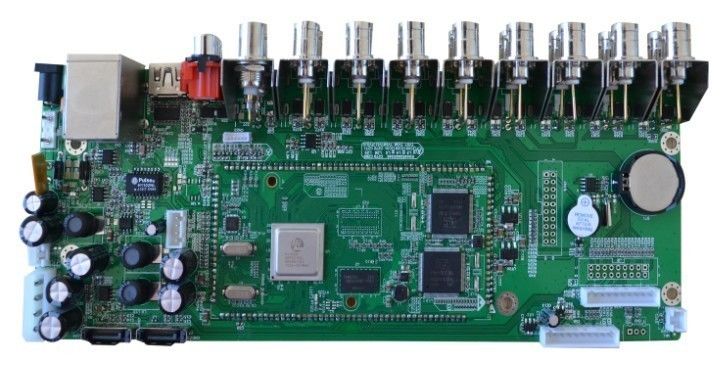

HD Dual Stream DVR PCB Board DHCP , PPPOE , FTP , DNS , DDNS , NTP
Feature:
· Intelligence analysis system:Intelligent analyze function including girth detection (cordon, alert area), items, care (loss, left), video diagnosis, as well as the core intelligent analysis function, at the same time support alarm linkage, let monitoring more secure.
· HD iDVR Three in one: combines the functions of DVR/HVR/NVR together, multi-mode input, support 2ch D1 +14ch CIF for encode, support analog + network HD video hybrid input, support full HD network video input.
· Step on the Internet:Can penetrate through all kinds of network via XM cloud service, to do remote control easily & conveniently without any complicated setting.
· Compression algorithm ideal:Compression algorithm upgraded to H.264 Main Profile,the advanced space-time filter technique makes the code stream lowered at least 30%.
· Playback quality:real-time recording synchronously(2ch D1 + 14ch CIF real-time encode),real-time multi-channel playback synchronously(2ch D1 + 6ch CIF real-time decode)
· Main and Sub Stream:Support main stream and extra steam encode synchronously. Main stream is for local storage to maintain the image quality, extra stream is for network real-time transmission, to easily solve the bottleneck problem of bandwidth.
· Mobile monitor: Support all kinds of mobile monitor(iPhone, Windows Mobile, BlackBerry, Symbian, Android)
· Display:Support TV,VGA & HDMI output synchronously, VGA, HDMI full hd 1080 p display output, make the traditional monitor display effect upside down
· Operation interface:similar WINDOWS operating style,powerful right button menu function of mouse, make it easy for using.
· Network:Powerful net service(support DHCP,PPPOE,FTP,DNS,DDNS,NTP,UPNP,EMAIL,IP authority,IP search,alarm center, etc),complete enclosure(WEB,CMS,SDK),to easily achieve interconnection.
· Browsers:Support multi-browser(IE,Chrome,Firefox,Safari)
· Remote Access:Self enclosed with DNS function (ARSP),one-key to enable remote control, and support DNS of 3322,dyndns,oray,myq-see, etc
· Device port:Device port:support 2 SATA port,2HDD of 3T ,2 USB2.0 port for operation of mouse control, back up, burning and upgrade；
· Differentiation: change boot screen freely, support more than 20 kinds of languages, more than 10 kinds of GUI interface, ten kinds of remote controller, dozens of front panel board for selection, to make different products.
· Others:Completed protective circuit, unique treble watchdog function, make device never crashed; special “black-box” technology to monitor the device process, greatly reduce the maintenance cost
Specification:
|
|
Model |
NSTHfPW3-2285E006(MBD6516T-EL) |
|
System |
Main processor |
Hi3521 |
|
Operating system |
Embedded LINUX operating system |
|
|
System resource |
Multi-channel real-time recording synchronously, multi-channel real-time playback, multi-channel multi-user network operation, USB back up. |
|
|
Interface |
Operation interface |
16bit real color GUI interface support mouse operation |
|
Display screen |
1/4/8/9/16 screen (take analog channel as an example, other is base on the selected channel mode) |
|
|
Video |
Video standard |
PAL(625lines,50fps)； NTSC(525 lines,60fps) |
|
Image encode |
H.264(High Profile) |
|
|
Monitor quality |
Monitor:D1；VGA,HDMI:High definition(support 1920*1080, 1280*720,1440*900,1280*1024, 1024*768,800*600) |
|
|
Playback quality |
D1/HD1/CIF |
|
|
Encode capability |
16ch HD1/ 4ch D1 + 12ch CIF/ 16ch D1 real-time |
|
|
Decode capability |
16ch HD1/ 2ch D1 + 6ch CIF/ 1ch D1 real-time |
|
|
Multi-mode video input |
Local analog input: 16*D1/4*D1+12ch*CIF/16*D1 Local analog + network digital input: 4*D1+(1*1080P+3*720P) All network digital input: 16*D1/2*1080P+2*720P/1*1080P+1*720P+6*960H/8*720P |
|
|
Motion detection |
Each channel can set 192(16*12)detection area；can set multi-level of flexibility (for local analog channel only) |
|
|
Audio |
Audio compression |
G711A |
|
Bidirectional talk |
support |
|
|
Record and playback |
Record mode |
manual>alarm>motion detection>timing |
|
Local playback |
1-16ch playback, local 16*D1 mode, Maximum support 1 road playback (1*D1@25 FPS) |
|
|
Video search |
time,date,event,channel search |
|
|
Storage and Backup |
Space occupation |
Video:CIF 4~5G/day*channel, D1 16~20G/day*channel； |
|
Video storage |
Local HDD ,Network |
|
|
Back up mode |
Network backup,USB portable HDD,USB imprint,SATA imprint |
|
|
Interface |
Video input |
16ch BNC(1.0Vp-p,75Ω) |
|
Video output |
1ch CVBS/BNC(1.0Vp-p,75Ω),1ch VGA,1ch HDMI |
|
|
Loop output |
optional |
|
|
Audio input |
2ch RCA(200-2800mV,30KΩ,can extend to 8ch) |
|
|
Audio input |
2ch RCA(200-2800mV,30KΩ) |
|
|
Alarm input |
N/A(can extend to 4ch) |
|
|
Alarm output |
N/A(can extend to 1ch) |
|
|
Network port |
RJ45 10M/100M self-adaptive Ethernet port |
|
|
PTZ control |
1 RS485；support multi kinds of PTZ protocol |
|
|
USB port |
2*USB2.0 |
|
|
HDD port |
2 SATA ports(each max to 3T) |
|
|
Wireless port |
3G,WIFI(extension via USB port) |
|
|
Other |
Power |
12V/4A |
|
Consumption |
<15W(not including HDD) |
|
|
Temperature |
0℃-＋55℃ |
|
|
Humidity |
10%－90% |
|
|
Atmosphere pressure |
86kpa－106kpa |
|
|
Dimension |
257mm(Length)*96mm(Width) |
|
|
Weight |
290g |
