Introduction
Double sided circuit board means has a double-sided copper, and metallized holes, that is double-sided copper, and copper are holes inside
Both sides have double wiring board, but to use the wire on both sides. Both sides must be in the room with appropriate electrical connections. "Bridge" between this circuit called vias. Guide hole in the PCB, metal filled or coated with holes, which can be connected to the conductors on both sides. Because dual-panel area twice as big than the single panel, double panel to solve the single-panel wiring staggered because of difficulty (can be turned to the other side of the hole), it is more suitable for use in more complex than single-panel circuit.
Advantages
Compared with single-board: wiring convenient, simple, labor-intensive wiring smaller, shorter line length.
Double Circuit Board Design Steps
1. Prepare circuit schematics
2. Create a new file and loaded PCB component package library
3, planning board
4, into the network table and components
5, automatic layout components
6, layout adjustment
7, the network density analysis
8, wiring rules set
9, automatic routing
10, manually adjust the wiring
|
|
Product Details:
Payment & Shipping Terms:
|
| High Light: | pcb printed circuit boards,double sided printed circuit board |
||
|---|---|---|---|

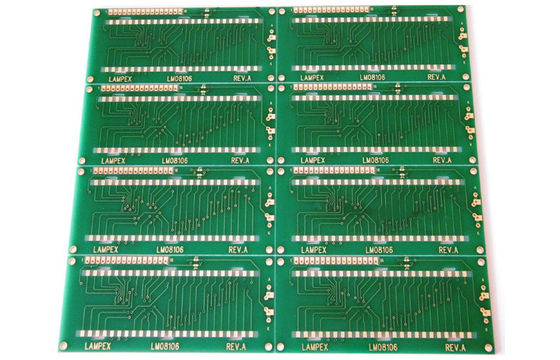

Heavy Copper 2 Layers PCB Printed Circuit Board Fabrication For Computer / Laptop
|
Product Name: |
Printed Circuit Boards PCB |
Material: |
Standard FR4 |
|
Layer count |
2 layers |
Board Thickness: |
1.6mm |
|
Manufacturing |
PCB Fabricator |
Surface Finish: |
Immersion Gold |
Description:
We offer manufacturing service of custom PCB boards and PCBA in single-side, double-side and multilayer. With decade’s years of experience in this PCB field, we are now serving customers from more than 40 countries in various electronic industries. Based in China, Agile Circuit mainly specializes in prototypes and medium volume custom PCB boards manufacturing with high quality and low cost.
Double sided PCB board, single sided PCB and multilayer PCB board manufacturing is our main service.With decade’s years of experience in this PCB field, we are now serving customers from more than 40 countries in various electronic industries. Based in China, we mainly specializes in prototypes and medium volume custom PCB boards manufacturing with high quality and low cost
Specification:
|
Layer count |
Single sided, double sided, multilayer to 26 Layers |
|
Base material |
High TG, High CTI, High Frequency, Heavy Copper |
|
Board thickness |
0.2mm, 0.4mm, 0.8mm, 1.0mm. 1.2mm.1.6mm.2.0mm-2.4mm, 3.2mm,4.0mm |
|
Maximum Board Size |
580mmx700mm |
|
Copper thickness |
0.5oz, 1oz, 2oz ,3oz., 4oz,5oz,6oz |
|
Minimum Hole Size |
0.2mm |
|
Minimum Trace/Space |
4mil/4mil |
|
Surface finish |
Leaded / Lead Free HASL, ENIG,OSP, Immersion Tin/Silver |
|
Solder Mask |
Green, Red, Blue, Black, Matte Green, Orange |
|
Silk Screen |
White, Yellow, Black |
|
PCB Fabrication |
Scoring, Route, V-Score, Counter Sink, Bevel, Cutouts and Slots |
|
Quality Control |
IPC 6012 Class 2, Electrical Testing, Flying probe Testing, 100% Netlist Testing |
|
Special Technology |
Impendence Control, Peelabemask PCB , High Density PCB HDI, Heavy copper PCB ,Metal Core circuit boards, Edge half plated thru hole Circuit boards, Selective Plating Hard Gold, Special Thin or Special Thick PCB board, PCB with Resin Plugged Hole |
Applications:
Digital Theater Systems,Electronic Monitoring Systems,Vacuum Tube Electronics Displays, Linear Motors and Motion Products, Computer Subsystems, Computers, Industrial Power Supplies, Audio Equipment, Electronics, Electronics, Photography, Television, Hardware & DIY, Building, LED & Energy-efficient Lighting, Solar, Wind & Hydropower Technologies, Kitchen Appliances, Audio Equipment, Automobiles & Motorcycles, TV Tires, Diagnostic Tools, Car DVD Player, Auto Lighting System, Motorcycles Navigation & GPS, Computer, Laptops ,USB Flash Drives, CPUs Keyboards, LCD Monitors, Desktops Routers, Electronic Security Systems, Automated ITVMs (Ticket Machines)
Advantages:
|
On Spec, on Time, on Budget |
|
Fast Quotation, cost aggressive |
|
24 hour prompt response |
|
Flexible tackle and quick operation on urgent issue |
|
High & advanced production capabilities |
|
ISO/TS approved facilities |
|
Technical and professional support |
|
Integrated supply service, one stop PCB solution |
Contact us today for your PCB board requirement!
