Double Sided PCB

  • High Precision Double Sided PCB suppliers
  • High Precision Double Sided PCB suppliers





Introduction


Double sided circuit board means has a double-sided copper, and metallized holes, that is double-sided copper, and copper are holes inside

Both sides have double wiring board, but to use the wire on both sides. Both sides must be in the room with appropriate electrical connections. "Bridge" between this circuit called vias. Guide hole in the PCB, metal filled or coated with holes, which can be connected to the conductors on both sides. Because dual-panel area twice as big than the single panel, double panel to solve the single-panel wiring staggered because of difficulty (can be turned to the other side of the hole), it is more suitable for use in more complex than single-panel circuit.





Advantages


Compared with single-board: wiring convenient, simple, labor-intensive wiring smaller, shorter line length.





Double Circuit Board Design Steps



     1. Prepare circuit schematics

     2. Create a new file and loaded PCB component package library

     3, planning board

     4, into the network table and components

     5, automatic layout components

     6, layout adjustment

     7, the network density analysis

     8, wiring rules set

     9, automatic routing

     10, manually adjust the wiring

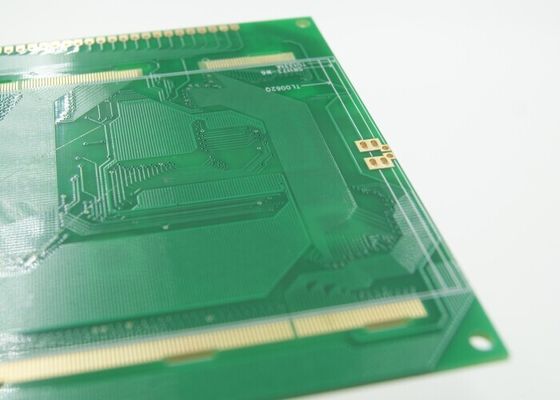

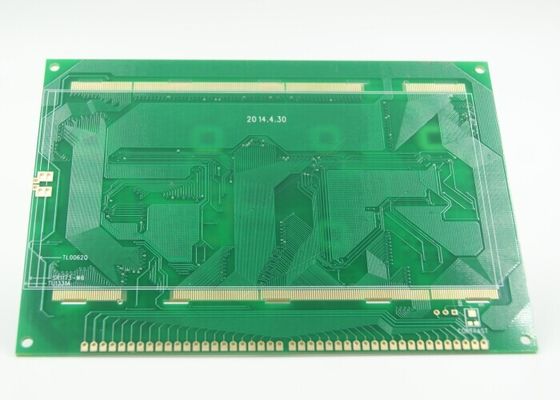

Immersion Gold Finish Double Sided PCB 2 Layer with Minimum 4 mil Trace Width

Immersion Gold Finish Double Sided PCB 2 Layer with Minimum 4 mil Trace Width
Immersion Gold Finish Double Sided PCB 2 Layer with Minimum 4 mil Trace Width Immersion Gold Finish Double Sided PCB 2 Layer with Minimum 4 mil Trace Width Immersion Gold Finish Double Sided PCB 2 Layer with Minimum 4 mil Trace Width

Large Image :  Immersion Gold Finish Double Sided PCB 2 Layer with Minimum 4 mil Trace Width

Product Details:

Place of Origin: China
Brand Name: LT CIRCUIT
Certification: UL E354810, SGS, ISO9001:2008

Payment & Shipping Terms:

Minimum Order Quantity: NO MOQ
Price: Negotiable
Packaging Details: Vacuum + Carton
Delivery Time: 3-20 days
Payment Terms: T/T,OA, L/C, Western Union, PayPal, etc.
Supply Ability: Ten thousand square meters/month
Detailed Product Description
Material: FR4 No Of Layers: 2
Surface Finish: ENIG (Immersion Gold) Board Thickness: 1.2 Mm
Copper Thickness: 1oz Solder Mask: Green
Silkscreen: White
High Light:

Double Side Pcb

,

Custom Pcb Manufacturing



Immersion Gold Finish Double Sided PCB 2 Layer with Minimum 4 mil Trace Width





Key Specifications/Special Features





Number. of Layers: 2
Laminate Material: FR4
Surface Finish: ENIG
Copper Thickness: 1 OZ after plating
Board Thickness: 1.6mm (0.062”)
Board Size:
Color of Mask: Green
Color of Silkscreen: White with Non-Conductive Ink
Flammability: UL 94V-0
Workmanship: Compliance with IPC-A-600 & IPC-6012 CLASS II
Thermal Conductivity -



Immersion Gold Finish Double Sided PCB 2 Layer with Minimum 4 mil Trace Width


Immersion Gold Finish Double Sided PCB 2 Layer with Minimum 4 mil Trace Width



 "2L PCB" is also named as "Double Sided PCB" (D/S PCB). PTH (Via) is a must, but it doesn't have Buried or Blind hole. Components can be assembled on both top and bottom side, so you don't need to worry about where to put components on the board, and not need to use through hole components which is always expensive than SMD one.



Currently this is one of the most popular types of PCB on the Earth, and we can provide 24 hours quick-turn service for them.
