Rigid Flex PCB

  • High Precision Rigid Flex PCB suppliers
  • High Precision Rigid Flex PCB suppliers


Rigid flex printed circuit boards are boards using a combination of flexible and rigid board technologies in an application. Most rigid flex boards consist of multiple layers of flexible circuit substrates attached to one or more rigid boards externally and/or internally, depending upon the design of the application. The flexible substrates are designed to be in a constant state of flex and are usually formed into the flexed curve during manufacturing or installation.

Rigid flex designs are more challenging than the design of a typical rigid board environment, as these boards are designed in a 3D space, which also offers greater spatial efficiency. By being able to design in three dimensions rigid flex designers can twist, fold and roll the flexible board substrates to achieve their desired shape for the final application's package.



Production Process

Whether producing a rigid flex prototype or production quantities requiring large scale rigid flex PCB fabrication and PCB assembly, the technology is well proven and reliable. The flex PCB portion is particularly good in overcoming space and weight issues with spatial degrees of freedom.

Careful consideration of flex-rigid solutions and a proper assessment of the available options at the early stages in the rigid flex PCB design phase will return significant benefits. It is critical the rigid flex PCB fabricator is involved early in the design process to ensure the design and fab portions are both in coordination and to account for final product variations.

The rigid flex manufacturing phase is also more complex and time consuming than rigid board fabrication. All the flexible components of the rigid flex assembly have completely different handling, etching and soldering processes than rigid FR4 boards.




Rigid flexible PCBs offer a wide array of applications, ranging from military weaponry and aerospace systems to cell phones and digital cameras. Increasingly, rigid flex board fabrication has been used in medical devices such as pacemakers for their space and weight reduction capabilities. The same advantages for rigid flex PCB usage can be applied to military weaponry and weapon control systems.

In consumer products, rigid flex doesn't just maximize space and weight but greatly improves reliability, eliminating many needs for solder joints and delicate, fragile wiring that are prone to connection issues. These are just some examples, but rigid flex PCBs can be used to benefit nearly all advanced electrical applications including testing equipment, tools and automobiles. Not sure what technology needs to be used for your project? Call our experts and we can help you figure out whether you need rigid flex, flex or HDI PCB technology.

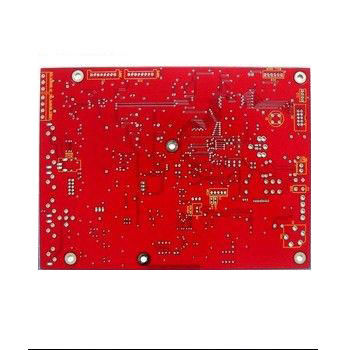

Immersion gold FR4 rigid flex pcb 0.5 oz , 4mil 6 Layer multilayer pcb

Immersion gold FR4 rigid flex pcb 0.5 oz , 4mil 6 Layer multilayer pcb
Immersion gold FR4 rigid flex pcb 0.5 oz , 4mil 6 Layer multilayer pcb

Large Image :  Immersion gold FR4 rigid flex pcb 0.5 oz , 4mil 6 Layer multilayer pcb

Product Details:

Place of Origin: shen zhen ,china
Brand Name: WonDa
Certification: CE, ROHS, UL

Payment & Shipping Terms:

Minimum Order Quantity: None
Price: Negotiable
Packaging Details: Vacuum bag + Outer carton
Delivery Time: 5-15 days
Payment Terms: L/C,T/T,Paypal
Supply Ability: 10000 Sq.meter/month
Detailed Product Description
Base Material: FR4 Copper Thickness: 0.5oz
Board Thickness: 1.4mm Min. Hole Size: 0.3MM
Min. Line Width: 4mil Min. Line Spacing: 4mil
Surface Finishing: Immersion Gold Number Of Layers: 6-Layer
Drilling Tolerance (NPTH): ±0.05mm Drilling Tolerance (PTH) ±0.075mm
High Light:

flexible rigid pcb


high density pcb

Immersion gold FR4 rigid flex pcb 0.5 oz , 4mil 6 Layer multilayer pcb



rigid and flex pcb
2.Many years experience in PCB
3.Drill Size:0.1mm,line:3mil.


Immersion gold circuit pcb, pcba & fpc , multilayer pcb,   rigid and flex pcb


Our Factory Manufacture Capability



Manufacture Capability


FR-4 / Hi Tg FR-4 / Lead free Materials (RoHS Compliant) /CEM-3, Aluminum, Metal based

Layer No.

1-- 20

Finished  Board thickness

0.2 mm-4.0mm’(8 mil-160 mil)

Board  Thickness Tolerance


Cooper thickness

0.5 OZ-6OZ (18 um-210 um)

Copper Plating Hole

18-40 um

Impedance Control


Warp &Twist





Min Trace Width

0.075mm (3mil)

Min Space Width

0.075mm (3mil)

Min Annular Ring

0.1mm (4 mil)

Solder Mask

Min Solder Mask Dam

0.0635 mm (2.5mil)

Solder mask Clearance

0.1mm (4 mil)


Min Hole size (CNC)

0.1 mm (4 mil)

Min Punch Hole Size

0.9 mm (35 mil)

Hole Size Tol (+/-)

PTH:±0.075mm;NPTH: ±0.05mm

Hole Position Tol





Lead free HASL


Immersion Gold

Nickel  3-7um  Au:1-5u''




ROHS, SGS, UL, ISO9001: 2008.


if you have specific requirements, please feel free to contact us.

We can do the best.
