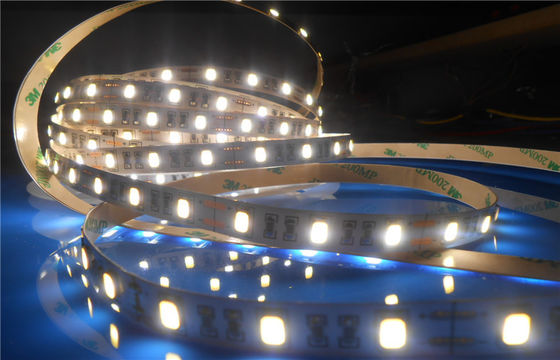

IP20 CIR90 SMD5630 LED Strip Light With PCB boards 3 Years Warranty

Large Image : IP20 CIR90 SMD5630 LED Strip Light With PCB boards 3 Years Warranty

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	Raymates
Certification:	CE ROHS
Model Number:	RM-F5630IP20-60P

Payment & Shipping Terms:

Minimum Order Quantity:	10meters
Packaging Details:	Individually Packed
Delivery Time:	3-5days
Payment Terms:	T/T Western Union Paypal Bank Transfer
Supply Ability:	50000 Piece/Pieces / Month

Contact Now

Detailed Product Description

Luminous Efficiency:	50-55lm/leds	CIR:	90
Chip:	Epistar	Voltage:	DC12V/24V
IP Grade:	IP65/IP67/IP20/IP68	Certification:	CE, RoHS, FCC
LED Type:	SMD5630	Length:	5M
Frequency:	60 Hz Led	Color Temperature:	CW(6000-7000K)\|PW(4000-5500K)\|WW(2700-3500K)
High Light:	Flexibele LED Strip Light , waterproof led strip lights

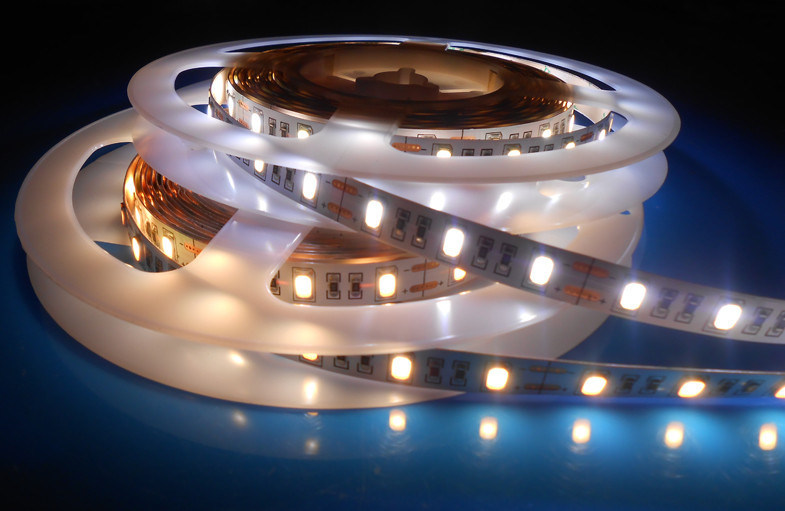

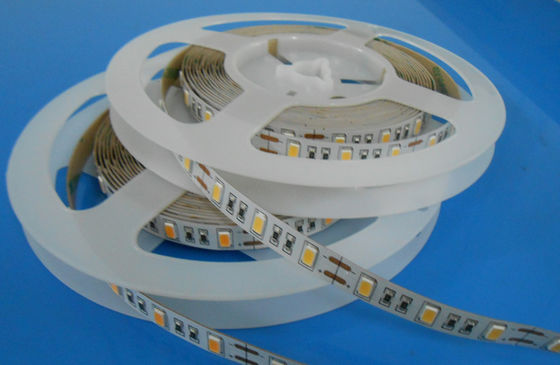

IP20 CIR90 SMD5630 LED Strip Light With PCB boards 3 Years Warranty

Description:

CRI90 SMD5630 50-55LM/LED super brightness

IP20 Non waterproof

3leds or 6leds cutable, 5 meter per roll

IP20,IP65,IP67 and IP68 is availavle for choose

Double-sided copper-clad boards,good cooling

CE,ROHS,FCC certificate, 3 years warranty.

Applications:

Widely used in Architectural light for canopy, corridor, window, archway ,Backlight for edge lighting for signage ,DIY lights for home use ,Path and contour marking ,Decorative lights for holiday, event, show exhibition,Cover lighting and so on.

Specifications:

Tech Date
Model		RM-F5630IP20-60P
LED Qty		60leds/m
LED Type		Epistar
LED Power		12W/M
LED Color		WW,W,CW
Input Voltage		12v / 24v dc
Power Factor		>98
Power Efficiency		>85%
Luminous Efficiency		50LM-55LM/LED
Color Temperature	Warm white	50-52lm/led
	White	52-54lm/led
	Cool White	53-55lm/led
Lamp Efficiency		>85%
Beam Angle		120° or 50°
Working Temperature		-40℃ ～ +55℃
Storage Temperature		-25℃ ～ +65℃(25℃best)
Life span		>50000hrs
Certification		CE, RoHS, FCC
IP Grade		IP20/IP65/IP67/IP68
Housing Color		Constant Current
Net Weight		0.2kgs
Dimension		1000100.5mm
package		5m/roll in each Anti-static bag

Competitive Advantage:

Health: Won't cause eye fatigue and helps to protect eye health.
Safety: Won't do harm to body with no harmful substances such as mercury and lead.
Color rendering: LEDs for flexible strip lighting applications have been designed to achieve a warm, white light that ranges >80 on the color rendering index (CRI).
Color temperature: From 2700K~6500K, customers can choose according to requirements.
High quality: High power factor, constant voltage power supply and constant flux.
Installation flexibility: Can be installed in any orientation with no restrictions.

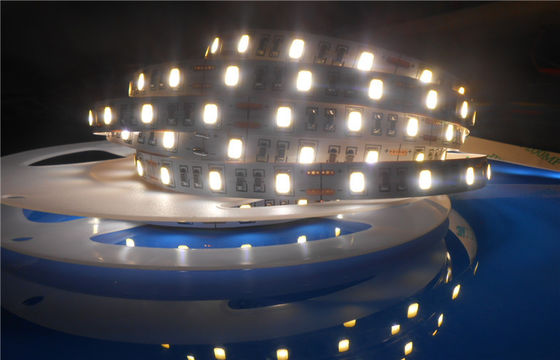

IP20 CIR90 SMD5630 LED Strip Light With PCB boards 3 Years Warranty
