Introduction
Double sided circuit board means has a double-sided copper, and metallized holes, that is double-sided copper, and copper are holes inside
Both sides have double wiring board, but to use the wire on both sides. Both sides must be in the room with appropriate electrical connections. "Bridge" between this circuit called vias. Guide hole in the PCB, metal filled or coated with holes, which can be connected to the conductors on both sides. Because dual-panel area twice as big than the single panel, double panel to solve the single-panel wiring staggered because of difficulty (can be turned to the other side of the hole), it is more suitable for use in more complex than single-panel circuit.
Advantages
Compared with single-board: wiring convenient, simple, labor-intensive wiring smaller, shorter line length.
Double Circuit Board Design Steps
1. Prepare circuit schematics
2. Create a new file and loaded PCB component package library
3, planning board
4, into the network table and components
5, automatic layout components
6, layout adjustment
7, the network density analysis
8, wiring rules set
9, automatic routing
10, manually adjust the wiring
Product Details:
Payment & Shipping Terms:
|
Layer: | 2 | Material: | FR4 |
---|---|---|---|
Thickness: | 1.6mm | Surface: | Lead Free HAL |
High Light: | double layer pcb,double sided circuit board |

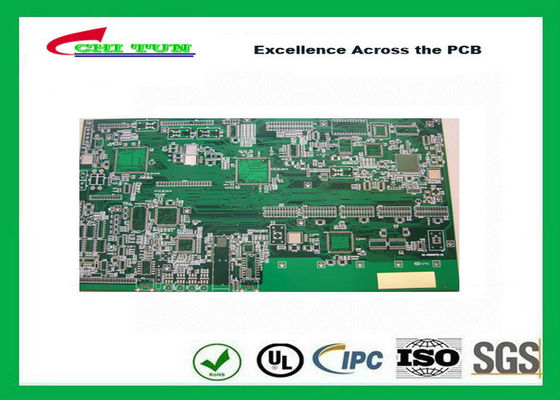

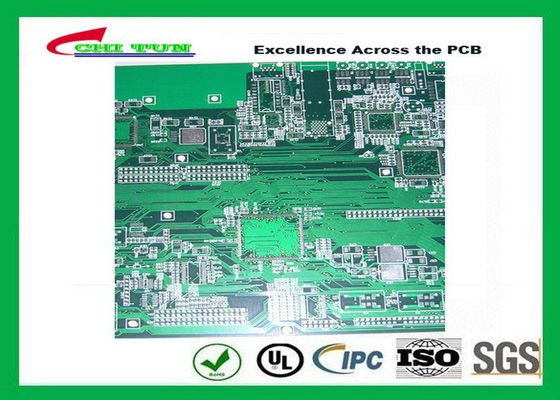

Lead Free White Silkscreen Double Sided Circuit Board for TV
|
Product Description |
Model Number: |
CTEL0210043 |
Number of Layer: |
2layer |
Material: |
FR4 |
Finish Thickness: |
1.6mm |
copper: |
1/1OZ |
PCB Size : |
200X400mm |
Line Width/line space |
4/4mil |
Min.Hole size : |
0.30MM |
Surface Finish: |
Lead Free HASL |
Green solder mask |
|
|
white silkscreen |
|
CNC |
Place of Origin: |
China |
Brand Name: |
CHITUN |
Certification: |
UL,ROHS,ISO |
Standard: |
IPC standard |
Business Benefits
Cost: Significant cost-savings - save up to 60% on your projects
Time: Time savings - process efficiency translate into reduced time to completion.
Quality: Improved quality - pre-planned work and management delivering quality results.
Business Process
It is imperative that the clients and software development firms be well acquainted with each other in order to ensure the smooth flow of business. As a firm with “ service first”, we believe in working together. We are aware that right from the minute of getting started; we make sure that we know the needs of our clients as much as they need to be familiar with our business policies.
Share Your needs: It is important for us to know your needs in definite terms, For a free consultation email us
