Introduction
Double sided circuit board means has a double-sided copper, and metallized holes, that is double-sided copper, and copper are holes inside
Both sides have double wiring board, but to use the wire on both sides. Both sides must be in the room with appropriate electrical connections. "Bridge" between this circuit called vias. Guide hole in the PCB, metal filled or coated with holes, which can be connected to the conductors on both sides. Because dual-panel area twice as big than the single panel, double panel to solve the single-panel wiring staggered because of difficulty (can be turned to the other side of the hole), it is more suitable for use in more complex than single-panel circuit.
Advantages
Compared with single-board: wiring convenient, simple, labor-intensive wiring smaller, shorter line length.
Double Circuit Board Design Steps
1. Prepare circuit schematics
2. Create a new file and loaded PCB component package library
3, planning board
4, into the network table and components
5, automatic layout components
6, layout adjustment
7, the network density analysis
8, wiring rules set
9, automatic routing
10, manually adjust the wiring
Product Details:
Payment & Shipping Terms:
|
| High Light: | quick turn pcb prototypes,custom made circuit boards |
||
|---|---|---|---|

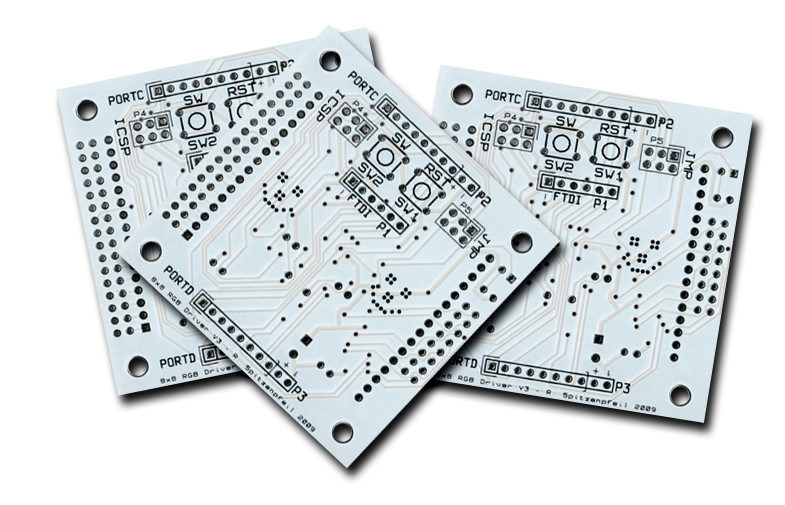

Double Sided PCB Prototype, PCB Board Prototyping, Low volume PCB Boards
> Brand Name: East PCB
> Material: FR4
> Layer Count: 2 layers
> Board Thickness: 1.6 mm
> Copper Thickness: 1OZ
> Surface Finish: Immersion Gold
> Solder Mask: White (top&bot)
> Silkscreen: Black screen (top&bot)
> Min drill/pad: 0.3mm/ 0.5mm
> Other:
> Certification: UL, RoHS, ISO9001,
ISO14001, TS16949
Low cost PCB
> The tooling cost be charged only once, when repeat order, it is FREE!
> All of solder mask include White, Yellow, Red etc. is FREE!
> HASL ( Lead Free ) Surface Finish is FREE!
> E-testing is FREE!
> Technical support is FREE!> Gerber file of the paste mask (Stencil) is FREE!
> Highly competitive prices once volume PCB Production coming!
> Better discount rates from DHL can save more shipping cost!
> High quality PCB product in order to bring about real and significant cost savings!
Now is the time to find out.
Now get best PCB boards and Price from East PCB.
> Prototypes PCB builds, reduce your prototyping cost with our great quotation.
> Ready to production, no repeat tooling cost.
> Faster lead time, Best service.
> Quote now, get more cheaper price
How to get PCB from EastPCB:
PCB Manufacturing is a long and complex process. East PCB make it so easy:
1, Fill on line or Email, Attached your design files (Gerber files, drill and readme file in a zip format ) and your quotation request.
2, Within 8 hours, you’ll receive the detailed and exact quotation that include PCB information and PCB price. If you are interesting with the quotation, you can send Purchase Order or Email tell us.
3, We’ll review your design files and start your job once get your payment.
then, all you need to do is waiting for the delivery person ringing your door.
4, You can payment by PayPal, Master, Visa or Western Union.
pls payment by Bank if you going to mid or big order.
5, DHL, FeDex, UPS, TNT are our shipping partner, usually only 1-2 days to USA, Canada, Australia, 2-3 days to France, England, Italy etc Europe country.
