Introduction
Double sided circuit board means has a double-sided copper, and metallized holes, that is double-sided copper, and copper are holes inside
Both sides have double wiring board, but to use the wire on both sides. Both sides must be in the room with appropriate electrical connections. "Bridge" between this circuit called vias. Guide hole in the PCB, metal filled or coated with holes, which can be connected to the conductors on both sides. Because dual-panel area twice as big than the single panel, double panel to solve the single-panel wiring staggered because of difficulty (can be turned to the other side of the hole), it is more suitable for use in more complex than single-panel circuit.
Advantages
Compared with single-board: wiring convenient, simple, labor-intensive wiring smaller, shorter line length.
Double Circuit Board Design Steps
1. Prepare circuit schematics
2. Create a new file and loaded PCB component package library
3, planning board
4, into the network table and components
5, automatic layout components
6, layout adjustment
7, the network density analysis
8, wiring rules set
9, automatic routing
10, manually adjust the wiring
|
Product Details:
Payment & Shipping Terms:
|

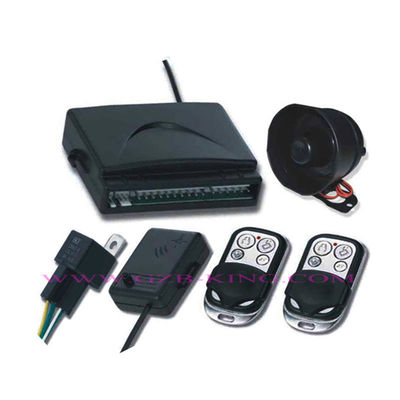

Item Name: One Way Car Alarm System (Double Side PCB)
Model: OW-898F
Main Features:
1). Arm/Disarm
2). Warning identification, Anti-hijacking
3). Central door locking system automation
4). Door unclosed well warning function
5). Car finding, Re-arm
6). Remote lock/unlock
7). Automatic anti-theft warning
8). Silent Arm
9). Over-taking warning
10). Remote trunk release
11). Emergency disarm, emergency call
12). Remote transmitter and receiver check code( learning code)
Package Information:
13). 10 PCS/CTN
14). Box Dimension: 27CM(L) * 27CM(W) * 9.2CM(H)
15). Carton Dimension: 56CM(L) * 29CM(W) * 48.5CM(H)
16). Gross Weight(SET) : 1.2 KG
17). Net Weight(SET): 1.1 KG
18). Gross Weight(CTN) : 12 KG
19). Net Weight(CTN): 11 KG
