Flexible PCB Board

  • High Precision Flexible PCB Board suppliers
  • High Precision Flexible PCB Board suppliers
  • High Precision Flexible PCB Board suppliers
  • High Precision Flexible PCB Board suppliers





Introduction:



Flex PCBs, also known as flexible printed circuits or flexible electronics, provide greater options for designers and engineers when assembling electronic circuits.

They are constructed from flexible, high-performance plastic material, usually polyimide, which enables the board to bend or "flex" during use. This flexibility opens them up to use in a wide range of applications.

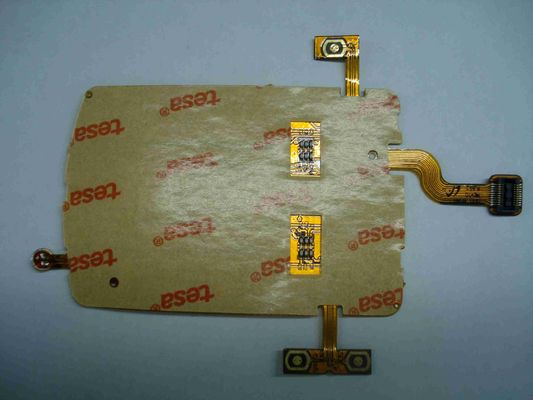

OSP, HAL Flexible PCB Board With 0.5 - 2oz Copper VO board Conventional plates

OSP, HAL Flexible PCB Board With 0.5 - 2oz Copper VO board Conventional plates
OSP, HAL Flexible PCB Board With 0.5 - 2oz Copper VO board Conventional plates

Large Image :  OSP, HAL Flexible PCB Board With 0.5 - 2oz Copper VO board Conventional plates

Product Details:

Place of Origin: China
Brand Name: Winnal
Model Number: CE, ROHS, UL
Detailed Product Description
High Light:

flex board pcb

,

FPC

,

Flexible board

OSP, HAL Flexible PCB Board With 0.5 - 2oz Copper VO board Conventional plates

Electrical Test 0.1-0.25mm Thickness OSP, HAL Flexible PCB Board With 0.5 - 2oz Copper



Quick Detail:

HAL/ENIG Surface finishing

Custom Layer :1 Layer ,2 Layer ,Layer, Layer

0.1-0.25mm Thickness

FR4 Material

0.5-3oz  Copper







Description:

Layer

1-6

Material

Polyimide

Thickness

0.1-0.25mm

Surface finishing

HAL/ENIG

Copper

0.5-2oz

Test

Electrical Test



Applications:


Flexible board can be used for all kinds of electrical products, such as computer, mobile, led and so on. It’s widely used in various of industries in the world. We have been FPC and assembly business for ten years and provide different customized FPC to many countries all over the world. Welcome to contact us for further news.



Competitive Advantage:

1, Excellent quality control service

2, Competitive price

3, Quick production time

4, PCB design/production/test integrated service



Specifications:

Product Technical Parameter

Basic technology

Parameter

Single/Double sided

Multilayer

Number of Layers

1-2

4~6

Copper Thickness

0.25~3.0OZ

0.5~3.0OZ

Base Board Thickness

0.1~0.3mm

0.1~0.3mm

Incombustibility

94V-0

94V-0

Peelable resistance

12.3N/cm

12.3N/cm

Twist

≤0.5%

≤0.5%

Insulation resistance

≥1011Ω

≥1011Ω

Test voltage

10-300V

10-300V

Finished board area

560×970mm

560×970mm

Min. Line Width and Spacing

0.1/0.1mm

0.1/0.1mm

Copper thickness in hole

≥25.0um

≥25.0um

Mini. pad diameter

Inner layer



0.05mm

Out layer

0.076mm

0.076mm

Mini. Hole Diameter

0.25mm

0.20mm

Hole tolerance

PTH

±0.076mm

±0.076mm

NPTH

±0.05mm

±0.05mm

Hole location tolerance

±0.076mm

±0.05mm

profile tolerance

Routing

±0.1mm

±0.1mm

Punching

±0.13mm

±0.13mm

Solder mask bridge ability

≥0.1mm

≥0.075mm

Solder mask rigidity

6H

6H

Solderable test

245℃     5 second

245℃     5 second

Thermal cycling ability

288℃     10 second

288℃     10 second

Surface Finishing

OSP, HAL, HAL Lead-free, Immersion gold , Gold plating, Rosin, Gold

finger, Immersion Tin and so on

Qaulity standard

IPC-A-600F   IPC-ML-950

Sample standard

STD-105E-Ⅱ



Contact Details
