Flexible PCB Board

  • High Precision Flexible PCB Board suppliers
  • High Precision Flexible PCB Board suppliers
  • High Precision Flexible PCB Board suppliers
  • High Precision Flexible PCB Board suppliers





Introduction:



Flex PCBs, also known as flexible printed circuits or flexible electronics, provide greater options for designers and engineers when assembling electronic circuits.

They are constructed from flexible, high-performance plastic material, usually polyimide, which enables the board to bend or "flex" during use. This flexibility opens them up to use in a wide range of applications.

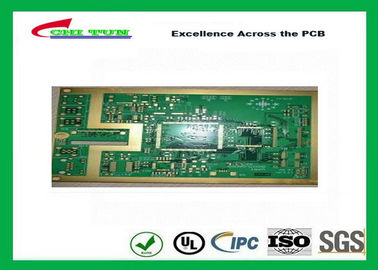

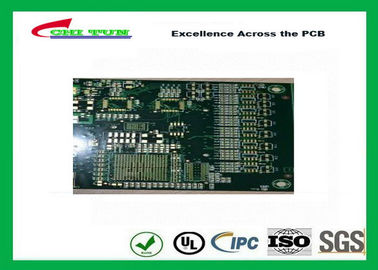

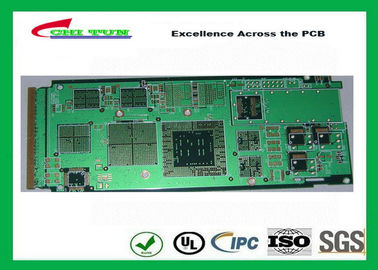

PCB Design And Fabrication 10 Layer Bga Tg170 Gold Finger Hole Size 0.2mm

PCB Design And Fabrication 10 Layer  Bga Tg170 Gold Finger Hole Size 0.2mm
PCB Design And Fabrication 10 Layer  Bga Tg170 Gold Finger Hole Size 0.2mm PCB Design And Fabrication 10 Layer  Bga Tg170 Gold Finger Hole Size 0.2mm PCB Design And Fabrication 10 Layer  Bga Tg170 Gold Finger Hole Size 0.2mm

Large Image :  PCB Design And Fabrication 10 Layer Bga Tg170 Gold Finger Hole Size 0.2mm

Product Details:

Place of Origin: China
Brand Name: ChiTunPCB
Certification: UL/ISO/ROHS/SGS
Model Number: CTEL1010200

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: base on gerberfiles
Packaging Details: Vacuum package and export standard corton
Delivery Time: 10-30days
Payment Terms: TT, LC, Western Union, D/A,, D/P,and others base on negotiation
Supply Ability: 50000 per week
Detailed Product Description
Material: FR4 TG170 Board Thickness: 2.4mm
Copper: 1oz Surface Finish: Lead Free HASL + Gold Finger
Solder Mask: Green Sillkscreen: White
Finish: Routing Standard: IPC Stardard
High Light:

quick turn pcb assembly

,

quick turn pcb fabrication

PCB Design And Fabrication 10 Layer  Bga Tg170 Gold Finger Hole Size 0.2mm



Product Description

Model Number:

CTEL1010200

Number of Layer:

10Layer

Material:

FR4 tg170

Finish  Thickness:

2.4mm

copper:

1oz

PCB Size :

55*109mm

Line Width/line space

10/8mil

Min.Hole size :

0.2mm

Surface finish : Gold finger


Green solder mask



White sillkscreen

Place of Origin:

China

Brand Name:

ChiTun

Certification:

UL,ROHS,ISO

Standard:

IPC  standard



TECHNOLOGY:

. RoHS/ Lead Free

. HDI Microvias

. Blind Vias

. Buried Vias

. Selective Plating

. Impedance Control

Manufacturing Standard:

. IPC-A-600G Class II

. IPC-A-600G Class III

. PERFAG 2E for Double-Sided Board

. PERFAG 3C for Multilayer Board



Capability

Min. Finished Holes Size: 0.008" (0.20mm)

Micro vias diameter: 0.004 TO 0.010 inches (0.10 - 0.25mm)

Minimum line width/spacing: 0.004/0.004 inches (0.10mm/ 0.10mm)

Maximum copper thickness: 5oz (140um)



Thin board thickness:

. DS - 0.008 inches (0.20mm)

. 4/L - 0.016 (0.40mm)

. 6/L - 0.020 inches (0.60mm)



Maximum board thickness:

. 275.8mil (7.0mm)



Surface treatment:

. HASL/lead free HAL/gold plating

. Immersion gold

. Immersion tin

. Immersion silver

. Gold fingers (hard gold)

. OSP

Contact Details
