Introduction
Double sided circuit board means has a double-sided copper, and metallized holes, that is double-sided copper, and copper are holes inside
Both sides have double wiring board, but to use the wire on both sides. Both sides must be in the room with appropriate electrical connections. "Bridge" between this circuit called vias. Guide hole in the PCB, metal filled or coated with holes, which can be connected to the conductors on both sides. Because dual-panel area twice as big than the single panel, double panel to solve the single-panel wiring staggered because of difficulty (can be turned to the other side of the hole), it is more suitable for use in more complex than single-panel circuit.
Advantages
Compared with single-board: wiring convenient, simple, labor-intensive wiring smaller, shorter line length.
Double Circuit Board Design Steps
1. Prepare circuit schematics
2. Create a new file and loaded PCB component package library
3, planning board
4, into the network table and components
5, automatic layout components
6, layout adjustment
7, the network density analysis
8, wiring rules set
9, automatic routing
10, manually adjust the wiring
Product Details:
Payment & Shipping Terms:
|

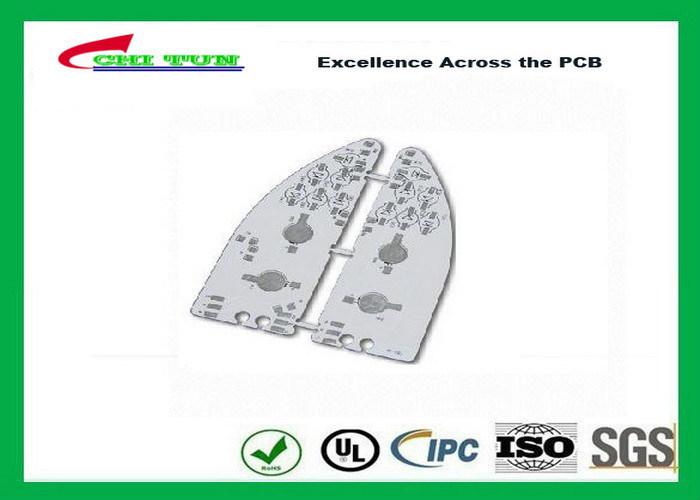

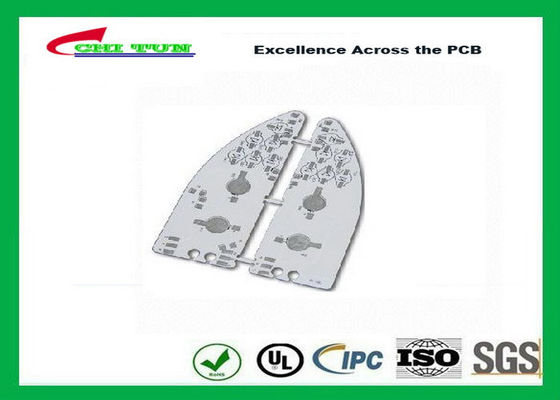

Material: | Aluminum | Layer: | 2 |
---|---|---|---|
Thickness: | 1.6mm | ||
High Light: | double layer pcb,double side pcb |
|
Product Description |
Model Number: |
CTEL0210124 |
Number of Layer: |
2Layer |
Material: |
AL |
Finish Thickness: |
1.6mm |
copper: |
35UM |
PCB Size : |
1369*145.5mm |
Line Width/line space |
10/10mil |
Min.Hole size : |
0.5mm |
Surface finish : | HASL |
Green solder mask |
|
|
no sillkscreen |
|
milling and plating half holes |
|
CNC/One Panel with 8 different types |
Place of Origin: |
China |
Brand Name: |
CHITUN |
Certification: |
UL,ROHS,ISO |
Standard: |
IPC standard |
Technical Options for Metal Core Circuit boards
1 layer |
|
Notes |
---|---|---|
Material |
Aluminum core, FR4 covering |
|
Max. size |
500mm x 500mm |
|
Aluminum thickness |
1.5mm, 2.0mm |
|
Initial copper |
35µm (for 1.5mm), 140µm (for 2.0mm) |
|
Surface |
Lead-free HAL, immersion gold, immersion tin |
|
RoHS compliant |
yes |
|
2 layers plated through |
|
|
Material |
Aluminum core, FR4 covering |
|
Max. size |
600mm x 600mm |
|
Aluminum thickness |
1.2mm, 1.5mm, 1.6mm |
|
|
0.8mm, 1.0mm, 2.0mm |
|
Basis copper |
18µm, 35µm, 70µm, 105µm, 140µm |
|
Surface |
Lead-free HAL, immersion gold, immersion tin |
|
RoHS compliant |
yes |
|
Design parameters |
|
|
Min. conductor width |
200µm |
|
Min. conductor spacing |
200µm |
|
Min. annular ring |
150µm |
|
Min. via (pth) |
0.3mm |
|
Q: 1. Can I have a sample ?
A: Yes, we can send you our sample to check our quality
Q: 2. What is the lead time?
A: Sample needs 1-3 days, mass production needs 7-10 days, also according to the order volume
Q 3. Do you have any MOQ limit?
A: Our MOQ is 1pcs
Q: 4. How do you ship the goods and how long does it take arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.
Q: 5. what file we should offer?
A: Making PCB should offer gerber file (protel ,power pcb,PADs file), PCBA should offer gerber file and BOM list.
Q: 6. We want to visit your company?
A: No problem, we are a production and processing enterprises, look forward to your arrival and we will lead you to visit our factory and processing factory.
