Single Sided PCB

  • High Precision Single Sided PCB suppliers
  • High Precision Single Sided PCB suppliers
  • High Precision Single Sided PCB suppliers
  • High Precision Single Sided PCB suppliers
  • High Precision Single Sided PCB suppliers
  • High Precision Single Sided PCB suppliers

Introduction:

Focus on the most basic of PCB, components focused on one side, the other side of the wire is concentrated.Because wires only appear on one side, so this kind of PCB is called single sided PCB.

Single panel wiring diagram is given priority to with the network printing, that is, in the copper surface printed on resistance agent, to prevent welding resistance after etching printed on mark, and then punching processing way to complete the parts guide hole and the appearance.In addition, part of a small amount of diverse products, are using photosensitive resistance agent forming pattern of the photographic method.

Operating temperatures range from 130 C to 230 C.  Single sided boards are available with surface finishes including Organic surface protectant (OSP), Immersion Silver, Tin, and Gold plating along with both leaded or lead-free Hot Air Solder Level (HASL).








Material:





Single sided PCB base material in paper phenolic copper paper laminated board, epoxy resin copper laminated plate is given priority to.





Structure:



First, the copper foil to be etched, etc. Process to obtain a circuit required, a protective film to be drilled to expose the corresponding pad. After cleaning and then rolling method to combine the two. Then the pad portion exposed gold plating or tin protection.





Production Process:


Single copper-clad plate - blanking - photochemical method/screen printing image transfer - remove corrosion was printed - cleaning, dry - hole machining - shape - dry cleaning - printing resistance welding coating - cure - printing mark symbol - cure - dry cleaning drying - pre coated flux - a finished product




Application



Single sided PCB most use in the radio, heating machine, cold storage, washing machines and other electrical appliances product, as well as the printer, vending machines, LED lighting, electronic components, such as commercial machine circuit




Professional Single PCBA / PCB Nibbler CWV-LT With Pneumatic Control

Professional Single PCBA / PCB Nibbler CWV-LT With Pneumatic Control
Professional Single PCBA / PCB Nibbler CWV-LT With Pneumatic Control Professional Single PCBA / PCB Nibbler CWV-LT With Pneumatic Control

Large Image :  Professional Single PCBA / PCB Nibbler CWV-LT With Pneumatic Control

Product Details:

Place of Origin: Dongguan City, Guangdong province, China
Brand Name: ChuangWei
Certification: CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000
Model Number: CWV-LT

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: seaworthy plywood case,safe, no need to fumigated
Delivery Time: within 2 days after receipt the payment.
Payment Terms: T/T ,L/C
Supply Ability: 1000 sets/year
Detailed Product Description
High Light:

Pneumatic Nibbler

,

pcb cutting machine



Professional Single PCBA / PCB Nibbler CWV-LT With Pneumatic Control



Printed Circuit Board Nibbler Machine Specifications:



Action stroke times 12 times / min
Working dry air pressure 0.50-0.70 Mpa
Slide stroke 2 mm
PCB Nibbler Machine Weight 2 kg
PCB Nibbler Machine Size 280x105x185mm

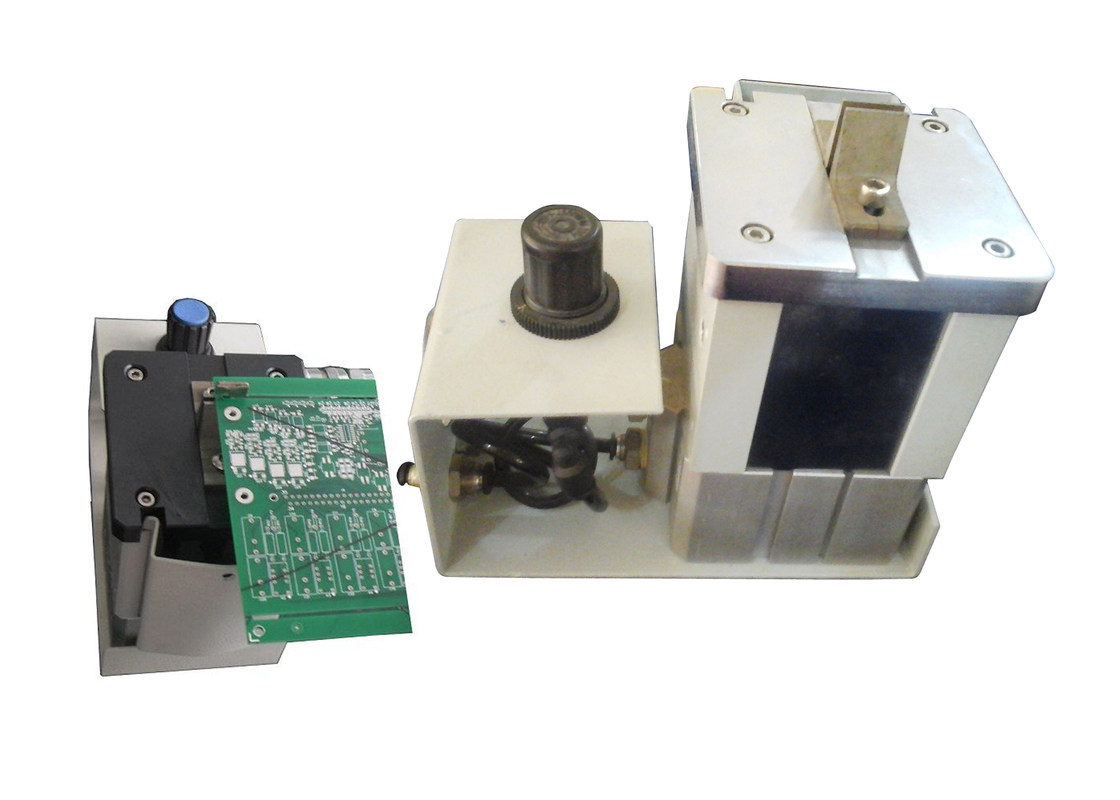

Printed Circuit Board Nibbler Machine Features:


1, all pneumatic control, easy to operate
2, suitable for slitting various PCB connection points
3, hook blade work, hook blade shape can be customized
4, convenience for replacing hook blade
5, hook blade for "T" type or "L" type blade
6, small size, does not damage the part of the PCB and PCB substrate



Safe operation with PCB nibbler CWV-LT



The PCB is slipped with its milled groove over the blade and is placed onto the matrix. The off-cut is pulled under the blade. When the foot switch is pressed, the off-cut is punched out and the waste material is collected inside the machine.



"T"-Blade

TTTTTTTTTTTTTT.jpg      With the T-blade off-cuts can be punched out right and left of the blade without turning the PCB.


"L"-Blade

LLLLLLLLLLLL.jpg           The L-blade will be used if there are small distances between the off-cuts





Matrix
