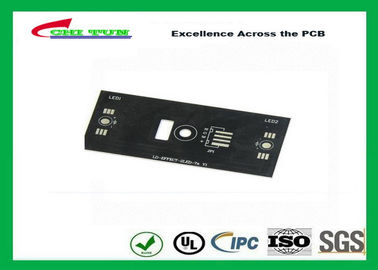

Prototype PCB Aluminum Base Board Single Side 1.6mm Milling PCB Surface HASL

Prototype PCB Aluminum Base Board Single Side 1.6mm Milling PCB Surface  HASL
Prototype PCB Aluminum Base Board Single Side 1.6mm Milling PCB Surface  HASL

Large Image :  Prototype PCB Aluminum Base Board Single Side 1.6mm Milling PCB Surface HASL

Product Details:

Place of Origin: Shenzhen China
Brand Name: ChiTunPCB
Certification: UL/ISO/ROHS/SGS
Model Number: CTEL0110118

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: base on gerberfiles
Packaging Details: Vacuum package and export standard corton
Delivery Time: 8-15days
Payment Terms: TT, LC, Western Union, D/A,, D/P,and others base on negotiation
Supply Ability: 80000 Square Meters Per Month
Detailed Product Description
Material: AL-Base 1.6mm Surface: HASL
Solder Mask: Black
High Light:

quick turn pcb fabrication

,

quick turn printed circuit boards

Prototype PCB Aluminum Base Board Single Side 1.6mm Milling PCB





Product Description

Model Number:

CTEL0110118

Number of Layer:

1Layer

Material:

ALu

Finish  Thickness:

1.6mm

copper:

1oz

PCB Size :

65*65mm

Line Width/line space



Min.Hole size :



Surface finish : HASL


Black solder mask



no sillkscreen



E-TEST



Milling

Place of Origin:

China

Brand Name:

CHITUN

Certification:

UL,ROHS,ISO

Standard:

IPC  standard





Technical Options for Metal Core Circuit boards

1 layer



Notes

Material

Aluminum core, FR4 covering



Max. size

500mm x 500mm



Aluminum thickness

1.5mm, 2.0mm



Initial copper

35µm (for 1.5mm), 140µm (for 2.0mm)



Surface

Lead-free HAL, immersion gold, immersion tin



RoHS compliant

yes



2 layers plated through





Material

Aluminum core, FR4 covering



Max. size

600mm x 600mm



Aluminum thickness

1.2mm, 1.5mm, 1.6mm





0.8mm, 1.0mm, 2.0mm



Basis copper

18µm, 35µm, 70µm, 105µm, 140µm



Surface

Lead-free HAL, immersion gold, immersion tin



RoHS compliant

yes



Design parameters





Min. conductor width

200µm



Min. conductor spacing

200µm



Min. annular ring

150µm



Min. via (pth)

0.3mm





Application:

1. Audio and Video equipment: Input/output amplifier, balanced amplifiers, audio amplifiers, preamplifier, power amplifier

2. Communication electronic equipment: high-frequency amplifier, filter amplifier, transmitter circuit

3. Office automation equipment: motor drive, and so on.

4. Automotive: Electronic regulator, lighter, power controller

5. Computer: CPU board, floppy disk drive, power supply devices

6. Power Modules: converter, rectifier,UPS,bridge solid-state relay

7. Lighting lamps: LED Lights ect.
