Rigid Flex PCB

  • High Precision Rigid Flex PCB suppliers
  • High Precision Rigid Flex PCB suppliers

Introduction


Rigid flex printed circuit boards are boards using a combination of flexible and rigid board technologies in an application. Most rigid flex boards consist of multiple layers of flexible circuit substrates attached to one or more rigid boards externally and/or internally, depending upon the design of the application. The flexible substrates are designed to be in a constant state of flex and are usually formed into the flexed curve during manufacturing or installation.

Rigid flex designs are more challenging than the design of a typical rigid board environment, as these boards are designed in a 3D space, which also offers greater spatial efficiency. By being able to design in three dimensions rigid flex designers can twist, fold and roll the flexible board substrates to achieve their desired shape for the final application's package.





Production Process


Whether producing a rigid flex prototype or production quantities requiring large scale rigid flex PCB fabrication and PCB assembly, the technology is well proven and reliable. The flex PCB portion is particularly good in overcoming space and weight issues with spatial degrees of freedom.

Careful consideration of flex-rigid solutions and a proper assessment of the available options at the early stages in the rigid flex PCB design phase will return significant benefits. It is critical the rigid flex PCB fabricator is involved early in the design process to ensure the design and fab portions are both in coordination and to account for final product variations.

The rigid flex manufacturing phase is also more complex and time consuming than rigid board fabrication. All the flexible components of the rigid flex assembly have completely different handling, etching and soldering processes than rigid FR4 boards.






Applications


Rigid flexible PCBs offer a wide array of applications, ranging from military weaponry and aerospace systems to cell phones and digital cameras. Increasingly, rigid flex board fabrication has been used in medical devices such as pacemakers for their space and weight reduction capabilities. The same advantages for rigid flex PCB usage can be applied to military weaponry and weapon control systems.

In consumer products, rigid flex doesn't just maximize space and weight but greatly improves reliability, eliminating many needs for solder joints and delicate, fragile wiring that are prone to connection issues. These are just some examples, but rigid flex PCBs can be used to benefit nearly all advanced electrical applications including testing equipment, tools and automobiles. Not sure what technology needs to be used for your project? Call our experts and we can help you figure out whether you need rigid flex, flex or HDI PCB technology.

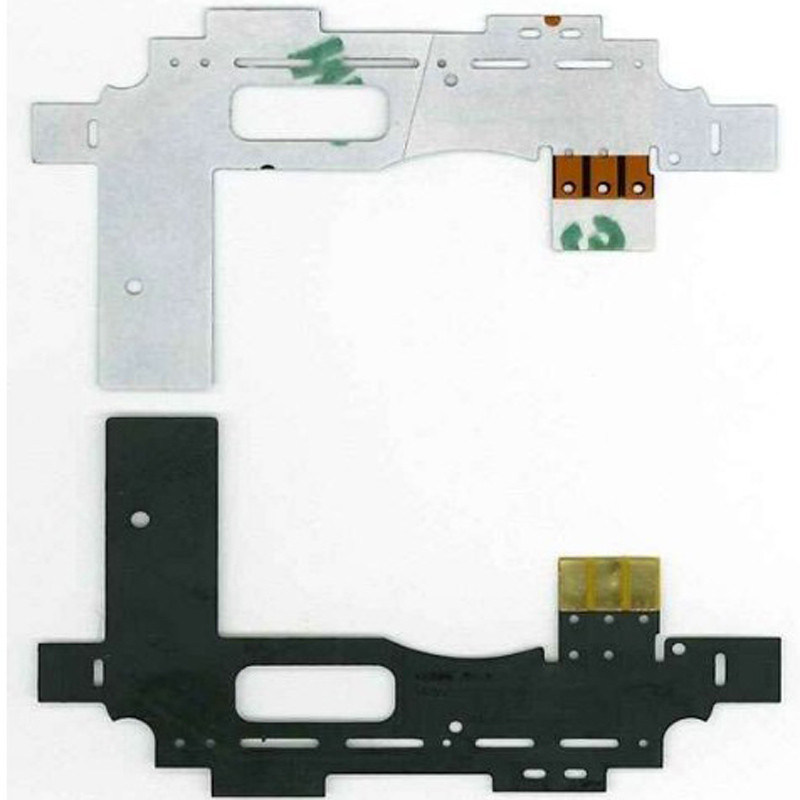

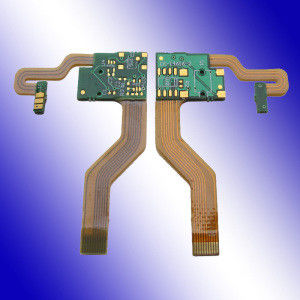

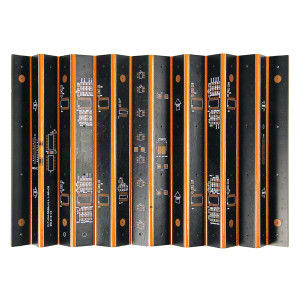

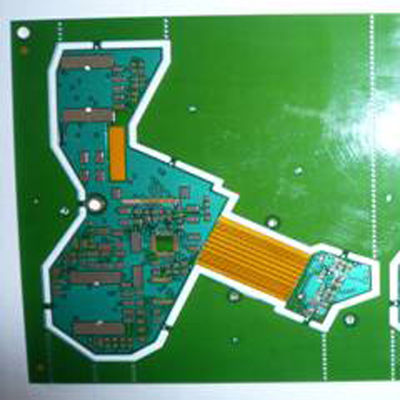

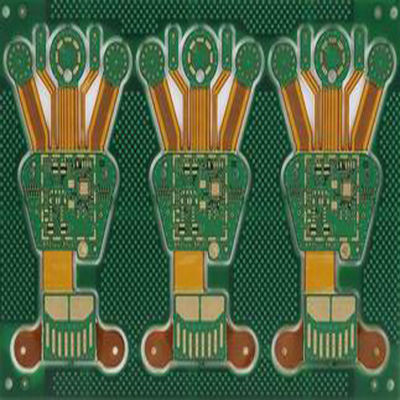

Rigid-Flex PCB in Fr4 Material of Electronic

Rigid-Flex PCB in Fr4 Material of Electronic
Rigid-Flex PCB in Fr4 Material of Electronic Rigid-Flex PCB in Fr4 Material of Electronic Rigid-Flex PCB in Fr4 Material of Electronic Rigid-Flex PCB in Fr4 Material of Electronic Rigid-Flex PCB in Fr4 Material of Electronic

Large Image :  Rigid-Flex PCB in Fr4 Material of Electronic

Product Details:

Place of Origin: China
Brand Name: FL
Certification: ISO9001 , UL, ROHS
Model Number: FL018

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: 0.86/piece
Packaging Details: vacuum + carton
Delivery Time: 3-5 days for samples, 12-15 days for mass production
Payment Terms: L/C,T/T,Paypal
Supply Ability: 200000 square metres/month
Detailed Product Description
High Light:

flexible rigid pcb

,

rigid flexible pcb

Base MaterialFr4+PI
Copper Thickness1Oz
Board Thickness1.6mm
Min. Hole Size0.2mm
Min. Line Width0.09mm
Min. Line Spacing0.075mm
Surface FinishingENIG
is_customizedYes

1-26 Layer pcb board: FR4 PCB,Rigid pcb,Aluminum based PCB, HDI PCB, Rigid-flex PCB,High multilayer PCB, heavy copper PCB, and PCB assembly as well. Our products are widely applied in telecom, industrial control, power electronics, medical instrument , security electronics, aerospace and so on.And Provides "PCB One-stop PCB solution" to meet customers’ diverse demands.

Please send to

sales01(at)fastlinepcb.com

All PCBs are custom design of our main products. These are only reference info, not the final prices and PCB images.The PCB pictures and prices are just one exhibition and display .

PCB manufacture capability:

Item

Manufacture Capability

Layers

1-26 Layers

Material Types

Fr-4, Fr-5, High-Tg, Halogen Free, Rogers, Isola, Taconic, Arlon Teflon, Aluminum Based

Max. Panel Dimension

39000mil * 47000mil / 1000mm * 1200mm

Outline Tolerance

± 4mil ± 0.10mm

Board Thickness

8mil-236mil

Board Thickness Tolerance

mil-236mil / 0.2mm-6.0mm

Board Thickness Tolerance

± 10%

Dielectric Thickness

3mil-8mil / 0.075mm-0.20mm

Min. Track Width

3mil / 0.075mm

Min. Track Space

3mil / 0.075mm

External Cu Thickness

HOZ-6OZ / 17um~210um

Internal Cu Thickness

HOZ-6OZ / 17um~210um

Drilling Bit Size ( CNC )

6mil-256mil / 0.15mm-6.50mm

Finished Hole Dimension

4mil-236mil / 0.1mm_6.0mm

Hole Tolerance

± 2mil / ± 0.05mm

Hole Position Tolerance

± 2mil / ± 0.05mm

Laser Drilling Hole Size

4mil / 0.1mm

Aspect Ration

12: 1

Solder Mask

Green, Blue, White, Black, Red, Yellow, Purple, etc.

Min Solder mask Bridge

2mil / 0.050mm

Plugged Hole Diameter

8mil-20mil/ 0.20mm-0.50mm

Impedance Control V-scoring

± 10%

Surface Finishing

HASL, HASL(lead Free), Immersion Gold, Immersion Tin, Immersion Silver, OSP, Hard Gold( up to 100u" )

If you are interested , please feel free to contact us .
