Introduction:
Focus on the most basic of PCB, components focused on one side, the other side of the wire is concentrated.Because wires only appear on one side, so this kind of PCB is called single sided PCB.
Single panel wiring diagram is given priority to with the network printing, that is, in the copper surface printed on resistance agent, to prevent welding resistance after etching printed on mark, and then punching processing way to complete the parts guide hole and the appearance.In addition, part of a small amount of diverse products, are using photosensitive resistance agent forming pattern of the photographic method.
Operating temperatures range from 130 C to 230 C. Single sided boards are available with surface finishes including Organic surface protectant (OSP), Immersion Silver, Tin, and Gold plating along with both leaded or lead-free Hot Air Solder Level (HASL).
Material:
Single sided PCB base material in paper phenolic copper paper laminated board, epoxy resin copper laminated plate is given priority to.
Structure:
First, the copper foil to be etched, etc. Process to obtain a circuit required, a protective film to be drilled to expose the corresponding pad. After cleaning and then rolling method to combine the two. Then the pad portion exposed gold plating or tin protection.
Production Process:
Single copper-clad plate - blanking - photochemical method/screen printing image transfer - remove corrosion was printed - cleaning, dry - hole machining - shape - dry cleaning - printing resistance welding coating - cure - printing mark symbol - cure - dry cleaning drying - pre coated flux - a finished product
Application
Single sided PCB most use in the radio, heating machine, cold storage, washing machines and other electrical appliances product, as well as the printer, vending machines, LED lighting, electronic components, such as commercial machine circuit
Product Details:
Payment & Shipping Terms:
|
High Light: | Single-sided PCB with Lead-free Surface Finish and 2oz Copper Thickness,single sided printed circuit board,Heavy Copper 2OZ Printed Circuit Board |
---|

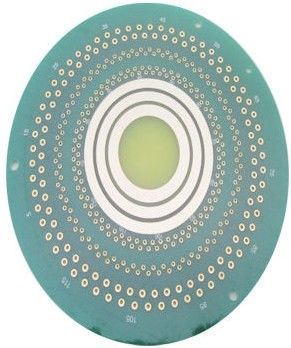

Single-sided PCB with Lead-free Surface Finish and 2oz Copper Thickness:
Material: FR4
Board Layer: 1
Board thickness: 1.6mm
Surface technique: HASL-LF
Minimum hole size: 0.5mm
Copper Thickness:2OZ
Application: electronic appliance board
Base materials: high temperature FR4, aluminum based, polyimide, royers, arlon and other Teflon
Layers: 1 to 26 layers standard PCB, blind via and buried via board
Minimum track space: 4 and 3 mil partial allowed
Maximum board thickness: 6mm
Finishes: HAL, lead-free HAL, organic OSP, hard and soft gold-plated tin, immersion silver, immersion tin and electro less nickel immersion gold
Shenzhen Meidearare with many years development we always committed to offer excellent one-stop service to our respected customers,
we welcome yourPCB,Aluminum PCB,FPC,Long PCB and CEM-3,Rigid and Flex PCB board RFQ,no matter the small or big quantity.
If you will firstly consider to choose ourShenzhen Meidearto be your partner,the Fast delivery、Good quality control、Competitive Price、Professional team and Personalized VIP servicewe offered will prove your wise choice.
For further information, pls feel free to contact us. You can also access to our website:www.me-pcb.com
Or you can send your enquiry tomkt at me-pcb.com
