Double Sided PCB

  • High Precision Double Sided PCB suppliers
  • High Precision Double Sided PCB suppliers





Introduction


Double sided circuit board means has a double-sided copper, and metallized holes, that is double-sided copper, and copper are holes inside

Both sides have double wiring board, but to use the wire on both sides. Both sides must be in the room with appropriate electrical connections. "Bridge" between this circuit called vias. Guide hole in the PCB, metal filled or coated with holes, which can be connected to the conductors on both sides. Because dual-panel area twice as big than the single panel, double panel to solve the single-panel wiring staggered because of difficulty (can be turned to the other side of the hole), it is more suitable for use in more complex than single-panel circuit.





Advantages


Compared with single-board: wiring convenient, simple, labor-intensive wiring smaller, shorter line length.





Double Circuit Board Design Steps



     1. Prepare circuit schematics

     2. Create a new file and loaded PCB component package library

     3, planning board

     4, into the network table and components

     5, automatic layout components

     6, layout adjustment

     7, the network density analysis

     8, wiring rules set

     9, automatic routing

     10, manually adjust the wiring

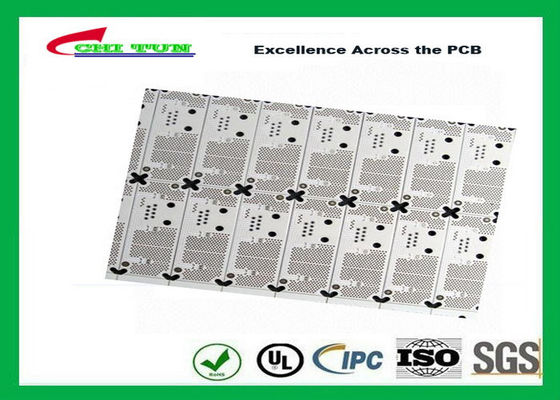

White Solder Mask Double Sided PCB , Lead Free Hasl ( RoHS ) for Audio Equipment

White Solder Mask Double Sided PCB , Lead Free Hasl ( RoHS ) for Audio Equipment
White Solder Mask Double Sided PCB , Lead Free Hasl ( RoHS ) for Audio Equipment White Solder Mask Double Sided PCB , Lead Free Hasl ( RoHS ) for Audio Equipment White Solder Mask Double Sided PCB , Lead Free Hasl ( RoHS ) for Audio Equipment White Solder Mask Double Sided PCB , Lead Free Hasl ( RoHS ) for Audio Equipment

Large Image :  White Solder Mask Double Sided PCB , Lead Free Hasl ( RoHS ) for Audio Equipment

Product Details:

Place of Origin: China
Brand Name: ChiTunPCB
Certification: UL/ISO/ROHS/SGS
Model Number: base on customers' requestion

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: base on gerberfiles
Packaging Details: Vacuum package
Delivery Time: 8-15days
Payment Terms: TT, LC, Western Union, D/A,, D/P,and others base on negotiation
Supply Ability: 80000 Square Meters Per Month
Detailed Product Description
High Light:

double sided circuit board

,

double side pcb

White Solder Mask Double Sided PCB , Lead Free Hasl ( RoHS ) for Audio Equipment





Product Description

Model Number:

CTEL0210135

Number of Layer:

2Layer

Material:

FR4

Finish  Thickness:

1.6mm

copper:

35UM

PCB Size :

11*214.61.5mm

Line Width/line space

10/10mil

Min.Hole size :

0.4mm

Surface finish : Lead free HASL


White solder mask



White sillkscreen



NO x-out allow



CNC

Place of Origin:

China

Brand Name:

CHITUN

Certification:

UL,ROHS,ISO

Standard:

IPC  standard





White Solder Mask Double Sided PCB , Lead Free Hasl ( RoHS ) for Audio Equipment

Aluminium PCB Advantage:

 1.  Dissipation of heat without using additional heatsinks.

 2.  Mechanically rigid, increasing the physical strength of the assembly

 3.  Reduces the effect of thermal stress on all components, increasing life and durability

 4.  Improved thermal conduction leading to versatility in component and tracking layout enabling PCB dimensions to be reduced.

 5.  Reduces component operating temperatures, improving reliability.

 6.  Substrate aluminum can be drilled / machined and routed, aiding PCB mounting
