Material
FR4 fiberglass panels, aluminum plate, copper substrate, iron substrate, PTFE, F4B, F4BM, Kangtai Li, CER-10, Rogers, FPC soft board and some other high-precision plate.
Crafts
Light copper, nickel, gold, tin spray; Immersion Gold, antioxidant, HASL, immersion tin, etc.
Double Layer PCB Leadfree HASL with blue solder mask
- Leadfree HASL Surface finish required to meet ROHS compliant
-FR-4 material with 0.25mm-6mm boards thickness
-Copper weight:1/3OZ,0.5OZ,1OZ,2OZ,3OZ,4OZ,5OZ,6OZ
-3-3mils min track width & spacing -0.2mm min finished hole size
-Certificate: UL,ISO14001,TS16949 and ROHS
-Company management: ISO9001
-Markets: Europe, America, Asia,etc.
Application
electronic products, like
computer peripherals,aerospace,telecommunication,automotives,medicaldevices,camermas,optoelectronic devices,VCD,LCD and verious other comsumer electronic products.
Product Details:
Payment & Shipping Terms:
|
Number Of Layers: | Double Layer PCB | Base Material: | FR4 TG150 |
---|---|---|---|
Copper Thickness: | 1/1OZ | Board Thickness: | 1.6mm |
Min. Hole Size: | 0.35mm | Min. Line Width: | 12mil |
Min. Line Spacing: | 16mil | Surface Finishing: | Gold Plated |
Solder Mask Color: | Green | Silkscreen Color: | White |
High Light: | custom printed circuit boards,2 layer pcb |
NO MOQ

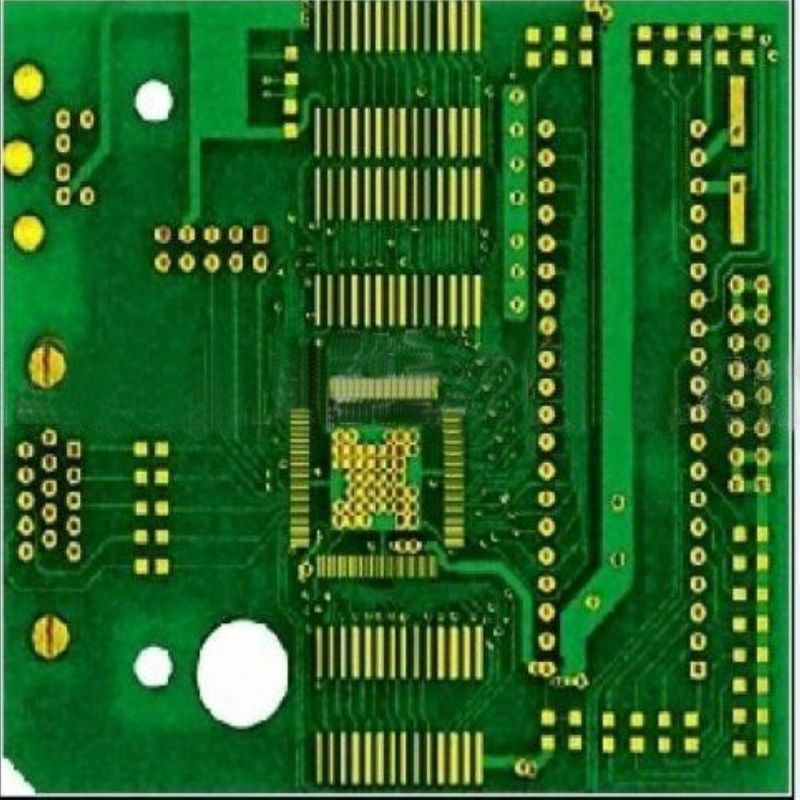

1.2 layers PCB with gold plated
2.Base material: FR-4 based with TG150
3.Board thickness:1.6mm
4.Copper thickness:1 OZ
5.Min line width :12mil
6.Min line spacing: 16mil
7.soldermask color: green
8.low price and good quality.
9.4-7days small order;8-15days mass order
10.ISO9001, UL, ROHS,SGS complianted
UL:E320045
ROHS: A001C100827049001-2
SGS: CANEC1000312001
ISO9001:2000:110801011
With 12 years experience We can do for you:
1-16 layer FR-4 PCB board, 1-2 layer Aluminum PCB
1-6 oz copper thickness
0.2 mm hole size
0.1 mm line width/space
Our PCBs are used for wide range of electronic products,
Like Inverter, Medical devices, CCTV, Power supply, GPS, UPS, Set-top Box, Telecomunication ,LED, etc.
Our Factory Manufacture Capability
Item |
Manufacture Capability |
Material |
FR-4 / Hi Tg FR-4 / Lead free Materials (RoHS Compliant) /CEM-3, Aluminium, Metal based |
Layer No. |
1-16 |
Finished Board thickness |
0.2 mm-3.8mm’(8 mil-150 mil) |
|
|
Board Thickness Tolerance |
±10% |
Cooper thickness |
0.5 OZ-6OZ (18 um-210 um) |
Copper Plating Hole |
18-40 um |
Impedance Control |
±10% |
Warp&Twist |
0.70% |
Peelable |
0.012"(0.3mm)-0.02’(0.5mm) |
Images |
|
Min Trace Width (a) |
0.1mm (4mil) |
Min Space Width (b) |
0.1mm (4 mil) |
Min Annular Ring |
0.1mm (4 mil) |
SMD Pitch (a) |
0.2 mm(8 mil) |
BGA Pitch (b) |
0.2 mm (8 mil) |
|
0.05mm |
Solder Mask |
|
Min Solder Mask Dam (a) |
0.0635 mm (2.5mil) |
Soldermask Clearance (b) |
0.1mm (4 mil) |
Min SMT Pad spacing (c) |
0.1mm (4 mil) |
Solder Mask Thickness |
0.0007"(0.018mm) |
Holes |
|
Min Hole size (CNC) |
0.2 mm (8 mil) |
Min Punch Hole Size |
0.9 mm (35 mil) |
Hole Size Tol (+/-) |
PTH:±0.075mm;NPTH: ±0.05mm |
Hole Position Tol |
±0.075mm |
Plating |
|
HASL |
2.5um |
Lead free HASL |
2.5um |
Immersion Gold |
Nickel 3-7um Au:1-5u'' |
OSP |
0.2-0.5um |
Outline |
|
Panel Outline Tol (+/-) |
CNC: ±0.125mm, Punching: ±0.15mm |
Beveling |
30°45° |
Gold Finger angle |
15° 30° 45° 60° |
Certificate |
ROHS, ISO9001:2008, SGS, UL certificate |
