Double Sided Industrial PCB Board Service FR4 Base , 1 oz Copper Thickness

PCB Certifications
Good quality Flexible PCB Board
Good quality Flexible PCB Board
Customer Reviews
The board quality is very good! We have been WonDa’s customer for more than 4 years. Your good service and quality is too good.

—— Jay

Cooperation is very satisfactory and the Company of the past few years, we are very willing to continue long-term cooperation.

—— Rob

The board quality is very good! I’m surprised with the low cost and quick delivery. It is totally out of my expectation. I will definitely come back.

—— Victoria, Australia

I'm Online Chat Now

Industrial PCB

  • High Precision Industrial PCB suppliers
  • High Precision Industrial PCB suppliers

Service Details:


1) Fast PCB with in 12 hours, 24 hours and 48 hours are available.
2) No MOQ for PCB ,PCBA ,FPC and Alu pcb.
3) Boards are RoHS compliant with UL.
4) Engineers with over 10 years of working experience can offer you professional suggestions.
5) Factory production Capability of 15000 sqm/month.
6) Quality inspection standard: IPC-6012 Class II.
7) Base material: FR4, Hi-tg FR4, Aluminum, High frequency (Rogers, Taconic, F4B, Arlon etc.), PI, PET.





Surface Finish


HAL, HASL Lead Free, Immersion gold, Gold plating, Gold finger, immersion silver, immersion Tin, OSP, Carbon ink





Advantages


1.Embedded high performance industrial motherboard. (2.0cm ultrathin)

2.DDR3 1066/1333/1600MHz memory,SO-DIMM socket maximum up to 4GB.

3.Support WIFI,3G SIM card,dual 1000M RJ45 LAN port,support Mini SATA SSD ,more efficiency.

4.Support power booting/plug and play,Timer-power-on.

5.Support 1080P HDMI resolution maximum up to:1920*1200;Support 24bit dual channel LVDS;VGA resolution maximum up to:2048*1536.

6.Reliable, High stability, Low noise, low power consumption.Perfectly suitable for AD Player/AIO machine/IPC/VOD/Car PC/HTPC etc.





Industrial Control PCB Specification



CPU Processor


• ATMEL AT91SAM9G45, ARM926EJ-S Core
• 400MHz



DDR RAM Memory


• 128MB DDR2 RAM, 133MHz, 32bit data bus



FLASH Storage


• On-board 512K DataFlash (DB45041D)
• On-board 128M*8bits NandFlash (K9F1G08U0B)could change a large capacity or industrial chip according to customer's requirement



Interfaces


• 2*100 pin 0.8mm spacing B to B(the connectors are 350°C high temperature-tested and seismic-tested)



Other Onboard Resources


• DM9161 net chip, support 10M/100M Ethernet with MII mode, more compatible than RMII;
• 1.8V, 3.3V, 5.0V voltage input



PCB Specification & Size


• Using six floors of PCB high precision process, and has the best electrical properties and anti-jamming performance
• 74 x 53 x 1.5mm



Working Parameters


• Working temperature: -20°C~ 70°C (batch user could customize -40°C~ 85°C)
• Humidity Range: 5%~ 95%, Non-Condensing

Low Power Consumption
• 5v Dc power supply, low power consumption, <1W

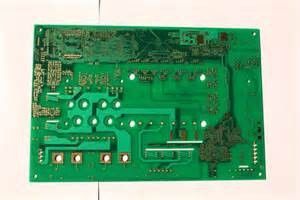

Double Sided Industrial PCB Board Service FR4 Base , 1 oz Copper Thickness

Double Sided Industrial PCB Board Service FR4 Base , 1 oz Copper Thickness
Double Sided Industrial PCB Board Service FR4 Base , 1 oz Copper Thickness

Large Image :  Double Sided Industrial PCB Board Service FR4 Base , 1 oz Copper Thickness

Product Details:

Place of Origin: shen zhen ,china
Brand Name: WonDa
Certification: CE, ROHS, UL

Payment & Shipping Terms:

Minimum Order Quantity: None
Price: Negotiable
Packaging Details: Vacuum bag + Outer carton
Delivery Time: 5-15 days
Payment Terms: L/C,T/T,Paypal
Supply Ability: 10000 Sq.meter/month
Detailed Product Description
Base Material: FR4 Copper Thickness: 1oz
Board Thickness: 1.6mm Min. Hole Size: 0.25mm
Min. Line Width: 0.1mm Min. Line Spacing: 0.1mm
Surface Finishing: HAL Max Panel Size: 800*508mm
Board Finished Thickness: 0.2-4.0mm Surface Treating Process Of Inner Layer: Brown Oxide
High Light:

printed circuit board industry

,

pcb fr4

Double Sided Industrial PCB Board Service FR4 Base , 1 oz Copper Thickness



Specifications


1.Double Sided Industrial PCB Service
2.UL,SGS,RohsCertificated
3.OEM&ODM PCB service offered
4.Delivery On Time




Double Sided Industrial PCB Service





WonDa are able to offer one stop 1 to 12 Layer PCB fabrication,PCB manufacturing,component sourcing,



PCB Assembly,PCBA Function Test, design solution,Reverse engineering service



Our PCB board manufacture and PCB assembly service:


o PCB board file with parts list provided by customers
o PCB board made, circuit board parts purchased by us
o PCB board with parts assembled
o Electronic testing circuit board or PCBA
o Fast delivery, anti-static package
o RoHS Directive-compliant, lead-free
o One stop service for PCB design, PCB layout, PCB manufacture, components purchasing,

PCB assembly, test, packing and PCB delivery



Technical Specification For PCB



Number of Layer 1,2,4 or 6,upto 18 layer
Order Quantity 1 to 50,000
Board Shape Retangular,round,slots,cutouts,complex,irregular
Board Type Rigid, Flexible, Rigid-flexible
Board Material FR-4 glass epoxy, FR-4 high Tg, Rohs compliant,Aluminum,Rogers,etc.
Board Cutting Shear,V-score,Tab-routed
Board Thickness 0.2-4.0mm, Flex 0.01-0.25mm
Copper Weight 1.0, 1.5, 2.0 oz
Solder Mask Double-sided green LPI,Also support Red,White,Yellow,Blue,Black
Silk Screen Double-sided or single-sided in white,yellow,black,or negative
Silk Screen Min Line Width 0.006'' or 0.15mm
Max Board Dimensions 20 inch*20inch or 500mm*500mm
Min Trace/Gap 0.10mm, or 4mils
Min Drill Hole Diameter 0.01'',0.25mm, or 10mils
Surface Finish HASL,Nickle,Immersion Gold,Immersion Tin,Immersion Silver,OSP,etc.
Board Thickness Tolerance ±10%
Copper Weight Tolerance ± 0.25 oz
Minimal Slot Width 0.12'', 3.0mm, or 120mils
V-Score Depth 20-25% of board thickness
Design File Formate Gerber RS-274,274D,Eagle and AutoCAD's DXF,DWG





PCB Assembly Capabilities



Quantity Prototype&Low Volume PCB Assembly,from 1 Board to 250,is specialty,or up to 1000
Type of Assembly SMT,Thru-hole
Solder Type Water Soluble Solder Paste,Leaded and Lead-Free
Components

Passive Down to 0201 size

BGA and VFBGA

Leadless Chip Carriers/CSP

Double-sided SMT Assembly

Fine Pitch to 0.8mils

BGA Repair and Reball

Part Removal and Replacement

Bare Board Size

Smallest:0.25*0.25 inches

Largest:20*20 inches

File Formate

Bill of Materials

Gerber files

Pick-N-Place file

Types of Service Turn-key,partial turn-key or consignment
Component packaging Cut Tape,Tube,Reels,Loose Parts
Turn Time Same day service to 15 days service
Testing Flying Probe Test,X-ray Inspection AOI Test
PCB assembly process

Drilling-----Exposure-----Plating-----Etaching & Stripping-----Punching-----Electrical Testing-----SMT-----Wave Soldering-----Assembling-----ICT-----Function Testing-----Temperature & Humidity Testing



Detailed Terms for Pcb Assembly



Technical requirement for pcb&pcb assembly:
---- Professional Surface-mounting and Through-hole soldering Technology
---- Various sizes like 1206,0805,0603 components SMT technology
----ICT(In Circuit Test),FCT(Functional Circuit Test) technology.
----PCB Assembly With UL,CE,FCC,Rohs Approval
----Nitrogen gas reflow soldering technology for SMT.
----High Standard SMT&Solder Assembly Line
---- High density interconnected board placement technology capacity.



Quote requirement for pcb&pcb assembly:
----Gerber file and Bom list
----Clear pics of pcba or pcba sample for us
----Test method for PCBA
