Flexible PCB Board

Introduction：

Flex PCBs, also known as flexible printed circuits or flexible electronics, provide greater options for designers and engineers when assembling electronic circuits.

They are constructed from flexible, high-performance plastic material, usually polyimide, which enables the board to bend or "flex" during use. This flexibility opens them up to use in a wide range of applications.

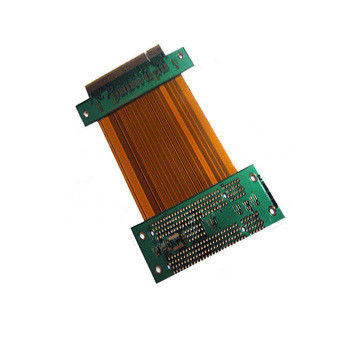

FR4 & PI rigid flexible pcb board 1.6mm Thickness Printed Circuit Board

Large Image : FR4 & PI rigid flexible pcb board 1.6mm Thickness Printed Circuit Board

Product Details:

Place of Origin:	shen zhen ,china
Brand Name:	WonDa
Certification:	CE, ROHS, UL

Payment & Shipping Terms:

Minimum Order Quantity:	None
Price:	Negotiable
Packaging Details:	Vacuum bag + Outer carton
Delivery Time:	5-15 days
Payment Terms:	L/C,T/T,Paypal
Supply Ability:	10000 Sq.meter/month

Contact Now

Detailed Product Description

Base Material:	FR4 & PI	Copper Thickness:	1oz
Board Thickness:	1.6mm	Min. Hole Size:	0.1mm
Min. Line Width:	0.1mm	Min. Line Spacing:	0.1mm
Surface Finishing:	Immersion Gold
Highlight:	flexible printed circuit board , flexible printed circuit

FR4 & PI rigid flexible pcb board 1.6mm Thickness Printed Circuit Board

Specifications

Manufacture Rigid Flexi pcb board
Efficient Quotation,Strict Production,Reliable Quality
Approval: UL,ISO9001
Fast Delivery

Your Best Choice for Flex PCB and Rigid-Flex PCB Manufacturing & Assembly

Manufacture Rigid Flexi pcb board

1. Material Combination Polyimide & FR4

2. PCB have solid Rigid Areas and Flex areas with reduced Layer Count

3. Improves design freedom

4. Used in Automotive, Camera systems back & Front, Rain Sensors, Sensors.

ADVANTAGES:

We provide small and medium-volume Rigid-Flex PCB production, can make up to 10 layers Rigid-Flex Circuit Boards. Rigid-Flex PCB line width / spacing can be achieved minimum 3mil, we also provide Rigid-Flex Circuit Boards with HDI, Impedance Control.

TECHNICAL DATA:

Capabilities	Standard Production	Advanced Production
Layer Count / Technology	2 layer - 10 Layer	2 layer - 12 Layer
PCB Thickness Range	75µm - 1600µm	50µm - 2000µm
Materials	Polyimide / FR4	Polyimide / FR4
Thinnest Core	50µm without adhesive	25µm without adhesive
Copper thickness	9µm / 12µm / 18µm / 35µm	9µm / 12µm / 18µm / 35µm
Copper Plating Holes	20µm (25µm)	13µm / 20µm / 25µm
Min. Line / Spacing	125µm / 125µm	65µm / 65µm ( LDI )
Soldermask Registration	+/- 100µm (Photoimageable)	+/- 50µm (Photoimageable)
Min. Soldermask Dam	100µm	65µm
Soldermask Color	amber (green)	amber (green)
Cover Layer Polyimide	laser cutting / punching / drilled	laser cutting / punching / drilled
Production Panel	609,6 mm x 457,2 mm 250 mm x (250 - 410 mm)	609,6 mm x 457,2 mm 250 mm x (250 - 410 mm)
Min. Annular Ring	150µm	150µm
smallest drill	0,28 mm	0,2 mm
smalles Routing bit	0,8 mm	0,8 mm
Surfaces	OSP / Immersion Tin Immersion Ni/Au Plated Ni/Au	OSP/ Immersion Tin Immersion Ni/Au Plated Ni/Au
ID print	White	White
Adhesive Tape	Yes	Yes
SMT Service	Yes	Yes
Stiffner material	FR4,PI	FR4,PI

LEAD TIME FOR PRODUCTION ORDERS:

	Sample Lead time	Mass production lead time
Single sided PCB	1~3	4~7
Double sided PCB	2~5	7~10
Multilayer PCB	7~8	10~15
PCB and Assembly	8~15	15~20

QUOTE REQUIREMENTS FOR PCB AND PCB ASSEMBLY:

- Gerber File and Bom List;
- Quantity;
- Technical requirements for quoting reference;
- Clear pictures of PCB or PCB Assembly sample if avaliable.
- Inspection method for PCB Assembly.
