Rigid flex printed circuit boards are boards using a combination of flexible and rigid board technologies in an application. Most rigid flex boards consist of multiple layers of flexible circuit substrates attached to one or more rigid boards externally and/or internally, depending upon the design of the application. The flexible substrates are designed to be in a constant state of flex and are usually formed into the flexed curve during manufacturing or installation.
Rigid flex designs are more challenging than the design of a typical rigid board environment, as these boards are designed in a 3D space, which also offers greater spatial efficiency. By being able to design in three dimensions rigid flex designers can twist, fold and roll the flexible board substrates to achieve their desired shape for the final application's package.
Whether producing a rigid flex prototype or production quantities requiring large scale rigid flex PCB fabrication and PCB assembly, the technology is well proven and reliable. The flex PCB portion is particularly good in overcoming space and weight issues with spatial degrees of freedom.
Careful consideration of flex-rigid solutions and a proper assessment of the available options at the early stages in the rigid flex PCB design phase will return significant benefits. It is critical the rigid flex PCB fabricator is involved early in the design process to ensure the design and fab portions are both in coordination and to account for final product variations.
The rigid flex manufacturing phase is also more complex and time consuming than rigid board fabrication. All the flexible components of the rigid flex assembly have completely different handling, etching and soldering processes than rigid FR4 boards.
Rigid flexible PCBs offer a wide array of applications, ranging from military weaponry and aerospace systems to cell phones and digital cameras. Increasingly, rigid flex board fabrication has been used in medical devices such as pacemakers for their space and weight reduction capabilities. The same advantages for rigid flex PCB usage can be applied to military weaponry and weapon control systems.
In consumer products, rigid flex doesn't just maximize space and weight but greatly improves reliability, eliminating many needs for solder joints and delicate, fragile wiring that are prone to connection issues. These are just some examples, but rigid flex PCBs can be used to benefit nearly all advanced electrical applications including testing equipment, tools and automobiles. Not sure what technology needs to be used for your project? Call our experts and we can help you figure out whether you need rigid flex, flex or HDI PCB technology.
Payment & Shipping Terms:
flexible rigid pcb,
rigid flexible pcb

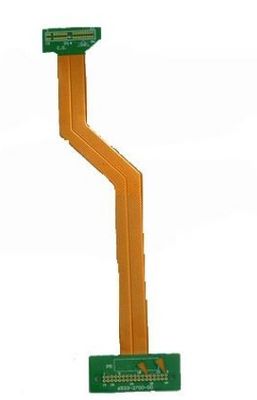

FR4 / polyimide rigid flex pcb display board pcb 1 oz legend black or custom
|Place of Origin:||China (Mainland)||Brand Name:||OEM||Model Number:||053|
|Base Material:||FR4/polyimide||Copper Thickness:||1oz,1oz or customized||Board Thickness:||1.0mm,1.6mm or customized|
|Min. Hole Size:||0.15mm||Min. Line Width:||0.1mm||Min. Line Spacing:||0.1mm|
|Surface Finishing:||tin/gold||solder mask color:||white or customized||legend color:||black or customized|
variable according to your product
|substrate:||FR4 or other|
rigid flex pcb display board pcb
1.factory price,fast delivery
2.parts purchase and assembly
Testing Procedures For PCB Board:
A) Visual Inspection
B) Flying probe
C) Bed of nails
D) Impedance control
E) Solder-ability detection
F) Digital metallograghic microscope
G) AOI (Automated Optical Inspection)
Detailed Terms for PCB Manufacturing
Technical requirement for pcb assembly:
a) Professional Surface-mounting and Through-hole soldering Technology
b) Various sizes like 1206,0805,0603 components SMT technology
c) ICT(In Circuit Test),FCT(Functional Circuit Test) technology.
d) PCB Assembly With UL,CE,FCC,Rohs Approval
e) Nitrogen gas reflow soldering technology for SMT.
f) High Standard SMT&Solder Assembly Line
g) High density interconnected board placement technology capacity.
Delivery Time for your PCBA project
1) PCB production time: 3-4 days for samples/ within 7 days for mass production
2) Component purchase: within 1 week if all your parts are in stock locally.
If some parts are imported and IC programmed, time takes longer.
3) PCB Assembly: within 1 week if everything is ready,such as stencil and components.
Accidentally #2 and #3 can be processed at the same time.
4) After assembly, if you offer test method, we’ll quote and measure the test time for every piece, free for samples.
No matter you’re local trader or electronics manufacturer, foreign trader or manufacturer, only if your target price is reasonable, we’re pleased to serve you in all satisfaction.:)
Quotation Requirement and Time:
Following specifications are needed besides Gerber for quotation:
a) Base material
b) Board thickness:
c) Copper thickness
d) Surface treatment
e) Color of solder mask and silkscreen
g) Quick turn time
Contact Person: Miss. aaa
Tel: 86 755 8546321
