Rigid Flex PCB

  • High Precision Rigid Flex PCB suppliers
  • High Precision Rigid Flex PCB suppliers

Introduction


Rigid flex printed circuit boards are boards using a combination of flexible and rigid board technologies in an application. Most rigid flex boards consist of multiple layers of flexible circuit substrates attached to one or more rigid boards externally and/or internally, depending upon the design of the application. The flexible substrates are designed to be in a constant state of flex and are usually formed into the flexed curve during manufacturing or installation.

Rigid flex designs are more challenging than the design of a typical rigid board environment, as these boards are designed in a 3D space, which also offers greater spatial efficiency. By being able to design in three dimensions rigid flex designers can twist, fold and roll the flexible board substrates to achieve their desired shape for the final application's package.





Production Process


Whether producing a rigid flex prototype or production quantities requiring large scale rigid flex PCB fabrication and PCB assembly, the technology is well proven and reliable. The flex PCB portion is particularly good in overcoming space and weight issues with spatial degrees of freedom.

Careful consideration of flex-rigid solutions and a proper assessment of the available options at the early stages in the rigid flex PCB design phase will return significant benefits. It is critical the rigid flex PCB fabricator is involved early in the design process to ensure the design and fab portions are both in coordination and to account for final product variations.

The rigid flex manufacturing phase is also more complex and time consuming than rigid board fabrication. All the flexible components of the rigid flex assembly have completely different handling, etching and soldering processes than rigid FR4 boards.






Applications


Rigid flexible PCBs offer a wide array of applications, ranging from military weaponry and aerospace systems to cell phones and digital cameras. Increasingly, rigid flex board fabrication has been used in medical devices such as pacemakers for their space and weight reduction capabilities. The same advantages for rigid flex PCB usage can be applied to military weaponry and weapon control systems.

In consumer products, rigid flex doesn't just maximize space and weight but greatly improves reliability, eliminating many needs for solder joints and delicate, fragile wiring that are prone to connection issues. These are just some examples, but rigid flex PCBs can be used to benefit nearly all advanced electrical applications including testing equipment, tools and automobiles. Not sure what technology needs to be used for your project? Call our experts and we can help you figure out whether you need rigid flex, flex or HDI PCB technology.

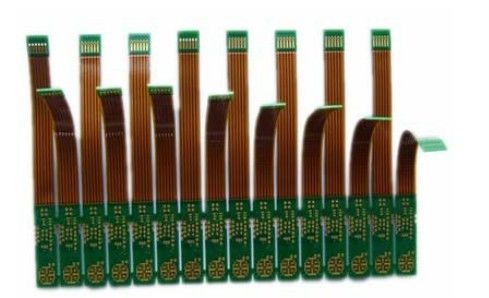

4-Layer rigid flex pcb for cell phone pcb Green / Blue Solder mask ENIG finish

4-Layer rigid flex pcb for cell phone pcb Green / Blue Solder mask ENIG  finish
4-Layer rigid flex pcb for cell phone pcb Green / Blue Solder mask ENIG  finish

Large Image :  4-Layer rigid flex pcb for cell phone pcb Green / Blue Solder mask ENIG finish

Product Details:

Place of Origin: shen zhen ,china
Brand Name: WonDa
Certification: CE, ROHS, UL

Payment & Shipping Terms:

Minimum Order Quantity: None
Price: Negotiable
Packaging Details: Vacuum bag + Outer carton
Delivery Time: 5-15 days
Payment Terms: L/C,T/T,Paypal
Supply Ability: 10000 Sq.meter/month
Detailed Product Description
High Light:

flexible rigid pcb

,

high density pcb

4-Layer rigid flex pcb for cell phone pcb Green / Blue Solder mask ENIG  finish



Quick Details



Place of Origin: China (Mainland) Brand Name: OEM Model Number: H015K
Number of Layers: 4-Layer Base Material: PI Copper Thickness: 1OZ
Board Thickness: 1.6mm Min. Hole Size: 0.2mm Min. Line Width: 0.1mm
Min. Line Spacing: 0.1mm Surface Finishing: ENIG Solder mask:
Green/Blue/Black/White/Yellow/Red etc
Max size of finish board: 9200*900mm Certification: UL/SGS/ROHS Controlled impedance: ±5%
Warp&Twist: 0.7% Rang of finish boards thickness: 0.21~7.0mm Layer count: 1~28
Impedance control: ±10% OEM/ODM: One-stop service PCB standard: IPC-A-610D



Specifications



rigid flex pcb
a.PCB OEM&ODM Clone/Copy
b.PCB Design
c.Turnkey service
d.UL,SGS,RoSH,TS



rigid flex pcb



1.ENIG  finish required to meet ROHS compliant;

2.PI material within 0.2mm-3.2mm boards thickness;

3.Copper weight:0.5OZ,1OZ,2OZ,3OZ;

4.0.2mm min finished hole size;

5.Certificate: UL, ROHS, T/S16949;
6.Company management: ISO9001:2000;
7.Markets: Europe, America, Asia etc all over the world.



PCB manufacturing capacity



NO

         Item

 Craft Capacity

1

Layer

1-28 Layers

2

Base Material for PCB

FR4, CEM-1, TACONIC, Aluminium,

High Tg Material, High Frequence ROGERS ,

TEFLON, ARLON, Halogen-free Material

3

Rang of finish baords Thickness

0.21-7.0mm

4

Max size of finish board

900MM*900MM

5

Minimum Linewidth

3mil (0.075mm)

6

Minimum Line space

3mil (0.075mm)

7

Min space between pad to pad

3mil (0.075mm)

8

Minimum hole diameter

0.10 mm

9

Min bonding pad diameter

10mil

10

Max proportion of drilling hole and board thickness

1:12.5

11

Minimum linewidth of Idents

4mil

12

Min Height of Idents

25mil

13

Finishing Treatment

HASL (Tin-Lead Free),  ENIG(Immersion Gold),

 Immersion Silver , Gold Plating

(Flash Gold), OSP, etc.

14

Soldermask

Green, White, Red, Yellow, Black, Blue,

transparent photosensitive soldermask,

Strippable soldermask.

15

Minimun thickness of soldermask

10um

16

Color of silk-screen

White, Black, Yellow ect.

17

E-Testing

100% E-Testing (High Voltage Testing);

 Flying Probe Testing

18

Other test

ImpedanceTesting,Resistance Testing,

Microsection etc.,

19

Date file format

GERBER FILE and DRILLING FILE,

PROTEL SERIES, PADS2000 SERIES,

Powerpcb SERIES, ODB++

20

Special technological requirement

Blind & Buried Vias and High Thickness copper

21

Thickness of Copper

0.5-14oz (18-490um)
