Flexible PCB Board

  • High Precision Flexible PCB Board suppliers
  • High Precision Flexible PCB Board suppliers
  • High Precision Flexible PCB Board suppliers
  • High Precision Flexible PCB Board suppliers





Introduction:



Flex PCBs, also known as flexible printed circuits or flexible electronics, provide greater options for designers and engineers when assembling electronic circuits.

They are constructed from flexible, high-performance plastic material, usually polyimide, which enables the board to bend or "flex" during use. This flexibility opens them up to use in a wide range of applications.

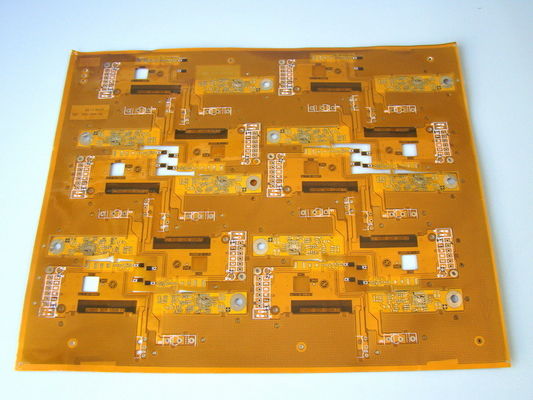

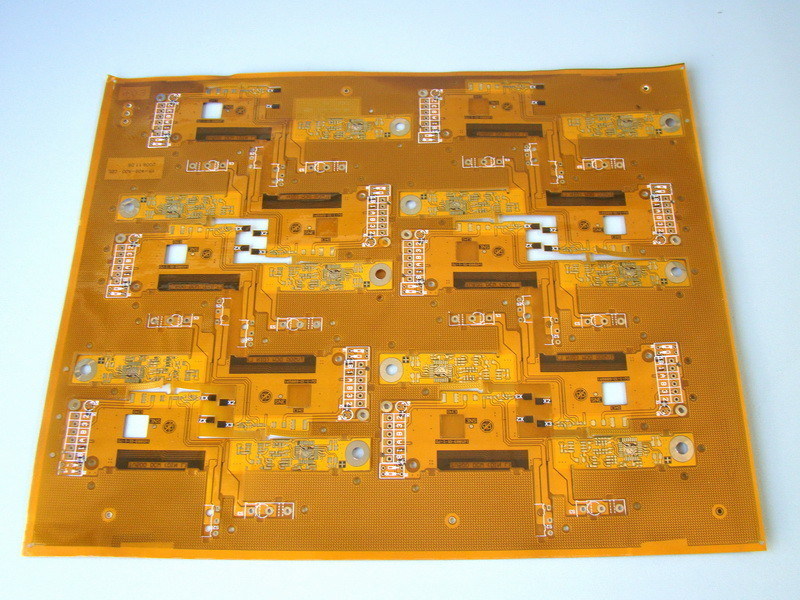

Bottom Contact FPC Connector Flexible PCB Board Yellow , Black Solder Mask

Bottom Contact FPC Connector Flexible PCB Board Yellow , Black Solder Mask
Bottom Contact FPC Connector Flexible PCB Board Yellow , Black Solder Mask

Large Image :  Bottom Contact FPC Connector Flexible PCB Board Yellow , Black Solder Mask

Product Details:

Place of Origin: shen zhen ,china
Brand Name: WonDa
Model Number: Rigao PCB-FPC048
Copper Thickness: 1 oz,35um
Board Thickness: 0.25 mm,0.25mm
Min. Hole Size: 0.2 mm,0.2mm
Min. Line Width: 2 mil,2mil
Min. Line Spacing: 2 mil,2mil
Product Name: bottom contact fpc connector for flexible board

Payment & Shipping Terms:

Payment Terms: L/C,T/T,Paypal
Detailed Product Description
High Light:

flexible printed circuit board

,

flex pcb board

Bottom Contact FPC Connector Flexible PCB Board Yellow , Black Solder Mask


--Good quality material and color for your choose
--Expert PCB & PCBA Manufacturer
--Provide OEM PCB, PCBA, copy service
--Components purchasing
--Fast turn around


Specification:


Types:

Single-sided, Double-sided, Multi-layers (max 6 layers) and
Rigid-flexible PCB, Aluminium board

Surface Finishing:

HASL(LF), Gold plating, Electroless nickel immersion gold,
Immersion Tin, OSP(Entek)

Base Material:Polyimide(Kapton), Polyester(PET), Aluminium, FR4
Copper Foil:ED/RA
Min. Line Width:2 mil
Min. Line Spacing:2 mil
Min. Hole Size:0.2mm
Max. Board Size:800x400mm
Min. Board Thickness:0.1mm
Min. Solder Mask Thickness:10um
Solder Mask Types:Green, yellow, black, white, blue, red and clear
Profiling:Punching, Routing, V-cut
Soldering Thermal Resistance:300°C/10 seconds
Peeling Strength:≥1.4kg/cm
Surface Resistance:105mΩ
Insulation Resistance:105mΩ
Dielectric Strength:9.8x105v/cm
Flammability:UL-94V-0
Performance Test:

100% electrical and electricity performance test


View of Rigao Factory :





Our Principle is simple, “Act by heart, Make the best.”

Our strengthis distinct, “Years of experiences in PCB and PCBA field”

Our Goal is achievable, “ To be the most reliable supplier of PCB and PCBA.”

Our orientation is clear, “Focus on prototypes and low to medium volume business ”
