Rigid Flex PCB

  • High Precision Rigid Flex PCB suppliers
  • High Precision Rigid Flex PCB suppliers

Introduction


Rigid flex printed circuit boards are boards using a combination of flexible and rigid board technologies in an application. Most rigid flex boards consist of multiple layers of flexible circuit substrates attached to one or more rigid boards externally and/or internally, depending upon the design of the application. The flexible substrates are designed to be in a constant state of flex and are usually formed into the flexed curve during manufacturing or installation.

Rigid flex designs are more challenging than the design of a typical rigid board environment, as these boards are designed in a 3D space, which also offers greater spatial efficiency. By being able to design in three dimensions rigid flex designers can twist, fold and roll the flexible board substrates to achieve their desired shape for the final application's package.





Production Process


Whether producing a rigid flex prototype or production quantities requiring large scale rigid flex PCB fabrication and PCB assembly, the technology is well proven and reliable. The flex PCB portion is particularly good in overcoming space and weight issues with spatial degrees of freedom.

Careful consideration of flex-rigid solutions and a proper assessment of the available options at the early stages in the rigid flex PCB design phase will return significant benefits. It is critical the rigid flex PCB fabricator is involved early in the design process to ensure the design and fab portions are both in coordination and to account for final product variations.

The rigid flex manufacturing phase is also more complex and time consuming than rigid board fabrication. All the flexible components of the rigid flex assembly have completely different handling, etching and soldering processes than rigid FR4 boards.






Applications


Rigid flexible PCBs offer a wide array of applications, ranging from military weaponry and aerospace systems to cell phones and digital cameras. Increasingly, rigid flex board fabrication has been used in medical devices such as pacemakers for their space and weight reduction capabilities. The same advantages for rigid flex PCB usage can be applied to military weaponry and weapon control systems.

In consumer products, rigid flex doesn't just maximize space and weight but greatly improves reliability, eliminating many needs for solder joints and delicate, fragile wiring that are prone to connection issues. These are just some examples, but rigid flex PCBs can be used to benefit nearly all advanced electrical applications including testing equipment, tools and automobiles. Not sure what technology needs to be used for your project? Call our experts and we can help you figure out whether you need rigid flex, flex or HDI PCB technology.

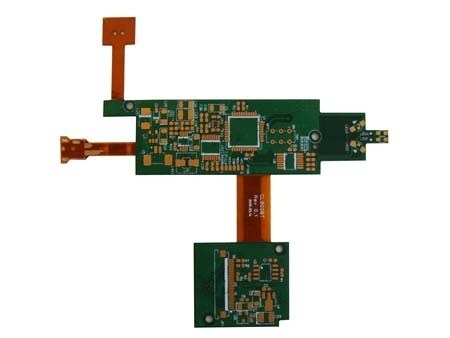

Aluminium Base Flex Rigid FPC PCB board / double - sided PCB

Aluminium Base Flex Rigid FPC PCB board / double - sided PCB
Aluminium Base Flex Rigid FPC PCB board / double - sided PCB

Large Image :  Aluminium Base Flex Rigid FPC PCB board / double - sided PCB

Product Details:

Place of Origin: shen zhen ,china
Brand Name: WonDa
Model Number: DCX-8188
Min. Line Width: 3mil
Min. Line Spacing: 3mil
Surface Finishing: HASL
Layer: 2+4
Delivery Detail: 7-20days
Board Thickness: 1.0mm
Copper Thickness: 1oz
Base Material: FR4+pi
Min. Hole Size: 3mil

Payment & Shipping Terms:

Payment Terms: L/C,T/T,Paypal
Detailed Product Description
High Light:

flexible rigid pcb

,

high density pcb

Aluminium Base Flex Rigid FPC PCB board / double - sided PCB

Specifications


Rigid-Flex
1.High quality pcb board
2.Export pcb many years
3.UL,ISO9001
4. fast delivery


We are the professional PCB (1-28 layers), FPC (1-10 layers) and Rigid-Flex (1-12 layers) manufacturer.

Description
1. Professional manufacturer of PCB and PCB assembly, specialized in single-sided PCB, double-sided PCB,
multilayer PCB, PCB layout and design and PCB assembly.
2. Material Type: FR4, CEM-1, non-halogen material, Aluminium Base, Cooper Base, high frequency material ,

Thick copper foil, 94-V0(HB), PI Material, High TG:SL S1000-2,ITEQ:IT180.
3. Surface treatment: HASL, HAL LF, Immersion Gold, Immersion Tin, Immersion silver, Gold Finger, OSP.



Application
Products are applied to a wide range of High-tech industries such as: LED, telecommunication, computer
application, lighting, game machine, industrial control, power, automobile and high-end consumer electronics,
 ect. By unremitting work and effort to the marketing, products exports to American, Canada, Europe counties,
Africa and other Asia-pacific countries


Advantage

1. PCB from factory directly
2. PCB which have the comprehensive quality control system
3. PCB with good price
4. PCB with quick turn delivery time from 48hours.
5. PCB with certification (ISO/UL/RoHS/SGS)
6. PCB with 10 years experience in exporting service
7. PCB is no MOQ/MOV.
8. PCB with high quality. strict test through AOI (Automated Optical Inspection),QA/QC, Flying Proble Test,

E-test fixture.

PCB

High precision prototype

PCB bulk production

Max Layers

1-28 layers

1-14 layers

MIN Line width(mil)

3mil

4mil

MIN Line space(mil)

3mil

4mil

Min via (mechanical drilling)

Board thickness≤1.2mm

0.15mm

0.2mm

Board thickness≤2.5mm

0.2mm

0.3mm

Board thickness>2.5mm

Aspect Ration≤13:1

Aspect Ration≤13:1

Aspect Ration

Aspect Ration≤13:1

Aspect Ration≤13:1

Board thickness

MAX

8mm

7mm

MIN

2 layers:0.2mm;
4 layers:0.35mm;
6 layers:0.55mm;
8 layers:0.7mm;
10 layers:0.9mm

2 layers:0.2mm;
4 layers:0.4mm;
6 layers:0.6mm;
8layers:0.8mm

MAX Board size

610*1200mm

610*1200mm

Max copper thickness

0.5-6oz

0.5-6oz

Immersion Gold/
Gold Plated Thickness

Immersion Gold:Au,1—8u”
Gold finger:Au,1—150u”
Gold Plated:Au,1—150u”
Nickel Plated :50—500u”



Hole copper thick

25um 1mil

25um 1mil

Tolerance

Board thickness

Board thickness≤1.0mm:+/-0.1mm
1.0mm<Board thickness≤2.0mm:+/-10%
Board thickness>2.0mm:+/-8%

Board thickness≤
1.0mm:+/-0.1mm
1.0mm<Board thickness≤
2.0mm:+/-10%
Board thickness>2.0mm:+/-8%

Outline Tolerance

≤100mm:+/-0.1mm
100< ≤300mm:+/-0.15mm
>300mm:+/-0.2mm

≤100mm:+/-0.13mm
100< ≤300mm:+/-0.15mm
>300mm:+/-0.2mm

Impedance

±10%

±10%

MIN Solder mask bridge

0.08mm

0.10mm

Plugging Vias capability

0.25mm--0.60mm

0.70mm--1.00mm
