Double Layer PCB

Material

FR4 fiberglass panels, aluminum plate, copper substrate, iron substrate, PTFE, F4B, F4BM, Kangtai Li, CER-10, Rogers, FPC soft board and some other high-precision plate.

Crafts

Light copper, nickel, gold, tin spray; Immersion Gold, antioxidant, HASL, immersion tin, etc.

Double Layer PCB Leadfree HASL with blue solder mask

- Leadfree HASL Surface finish required to meet ROHS compliant
-FR-4 material with 0.25mm-6mm boards thickness
-Copper weight:1/3OZ,0.5OZ,1OZ,2OZ,3OZ,4OZ,5OZ,6OZ
-3-3mils min track width & spacing -0.2mm min finished hole size
-Certificate: UL,ISO14001,TS16949 and ROHS
-Company management: ISO9001
-Markets: Europe, America, Asia,etc.

Application

electronic products, like

computer peripherals,aerospace,telecommunication,automotives,medicaldevices,camermas,optoelectronic devices,VCD,LCD and verious other comsumer electronic products.

Custom 2 layers PCB, Aluminum FR4 Gold Fingers Printed Circuit Board With UL

Name: Custom 2 layers PCB, Aluminum FR4 Gold Fingers Printed Circuit Board With UL
Brand: WonDa
SKU: WonDa
Rating: 4.9 (144 reviews)

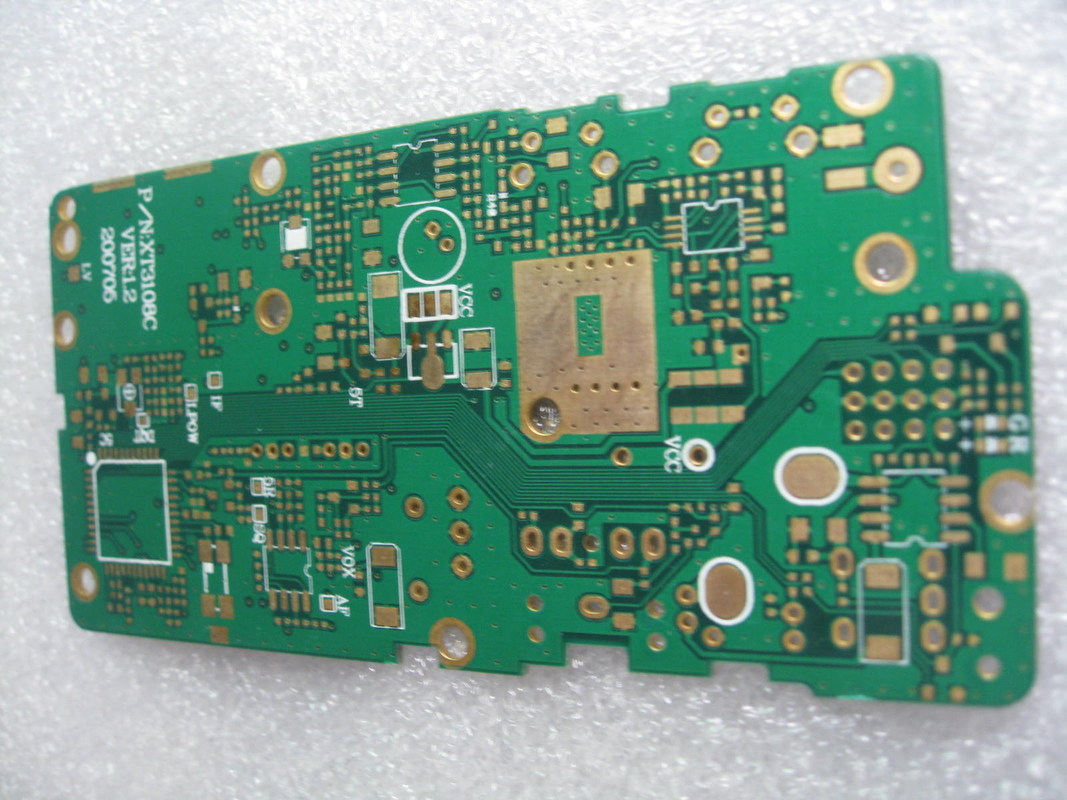

Large Image : Custom 2 layers PCB, Aluminum FR4 Gold Fingers Printed Circuit Board With UL

Product Details:

Place of Origin:	shen zhen ,china
Brand Name:	WonDa
Certification:	UL E354810,SGS

Payment & Shipping Terms:

Payment Terms:	L/C,T/T,Paypal

Contact Now

Detailed Product Description

Highlight:

two layer pcb

custom printed circuit boards

Custom 2 Layers PCB, Aluminum FR4 Gold Fingers Printed Circuit Board With UL

2 layers Printed Circuit Board manufacturer

Base material: Aluminum, Rogers, high Tg, TP, PF, FR4, FR1, FR2, CEM-1, CEM-3, etc.
Board thickness: 0.20 to 3.20mm (12 to 26mil)
Copper thickness: 0.50 to 5 ounce
Solder mask: LPI solder mask, conventional solder mask, peelable solder mask, UV solder mask
Minimum line width: 0.1mm (4mil)
Minimum hole diameter: 0.1mm (4mil)
Board finishing type: HASL, lead free HAL, OSP, soft gold, hard gold, immersion gold, gold fingers.
