Material
FR4 fiberglass panels, aluminum plate, copper substrate, iron substrate, PTFE, F4B, F4BM, Kangtai Li, CER-10, Rogers, FPC soft board and some other high-precision plate.
Crafts
Light copper, nickel, gold, tin spray; Immersion Gold, antioxidant, HASL, immersion tin, etc.
Double Layer PCB Leadfree HASL with blue solder mask
- Leadfree HASL Surface finish required to meet ROHS compliant
-FR-4 material with 0.25mm-6mm boards thickness
-Copper weight:1/3OZ,0.5OZ,1OZ,2OZ,3OZ,4OZ,5OZ,6OZ
-3-3mils min track width & spacing -0.2mm min finished hole size
-Certificate: UL,ISO14001,TS16949 and ROHS
-Company management: ISO9001
-Markets: Europe, America, Asia,etc.
Application
electronic products, like
computer peripherals,aerospace,telecommunication,automotives,medicaldevices,camermas,optoelectronic devices,VCD,LCD and verious other comsumer electronic products.
Product Details:
Payment & Shipping Terms:
|
| High Light: | custom printed circuit boards,2 layer pcb |
||
|---|---|---|---|

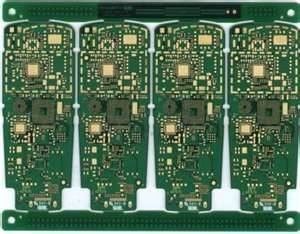

2-layer pcb manufacture, pcb prototype, pcb copy board with 0.5OZ copper thickness
2-Layer pcb manufacture
1.FR4 with immersion gold
2.2-layer pcb with 0.5OZ copper thickness
3.0.8mm board thickness with green solder mask
Our Factory Manufacture Capability.
|
Item |
Manufacture Capability |
|
|
Material |
FR-4 / Hi Tg FR-4 / Lead free Materials (RoHS Compliant), Aluminium, Metal based |
|
|
Layer No. |
1-16 |
|
|
Finished Board thickness |
0.20 mm-6.0mm’(8 mil-150 mil) |
|
|
|
||
|
Board Thickness Tolerance |
±10% |
|
|
Cooper thickness |
0.5 OZ-6OZ (18 um-210 um) |
|
|
Copper Plating Hole |
18-40 um |
|
|
Impedance Control |
±10% |
|
|
Warp&Twist |
0.70% |
|
|
Peelable |
0.012"(0.3mm)-0.02’(0.5mm) |
|
|
Images |
||
|
Min Trace Width (a) |
0.075mm (3mil) |
|
|
Min Space Width (b) |
0.1mm (4 mil) |
|
|
Min Annular Ring |
0.1mm (4 mil) |
|
|
SMD Pitch (a) |
0.2 mm(8 mil) |
|
|
BGA Pitch (b) |
0.2 mm (8 mil) |
|
|
|
0.05mm |
|
|
Solder Mask |
||
|
Min Solder Mask Dam (a) |
0.0635 mm (2.5mil) |
|
|
Soldermask Clearance (b) |
0.1mm (4 mil) |
|
|
Min SMT Pad spacing (c) |
0.1mm (4 mil) |
|
|
Solder Mask Thickness |
0.0007"(0.018mm) |
|
|
Holes |
||
|
Min Hole size (CNC) |
0.2 mm (8 mil) |
|
|
Min Punch Hole Size |
0.9 mm (35 mil) |
|
|
Hole Size Tol (+/-) |
PTH:±0.075mm;NPTH: ±0.05mm |
|
|
Hole Position Tol |
±0.075mm |
|
|
Plating |
||
|
HASL |
2.5um |
|
|
Lead free HASL |
2.5um |
|
|
Immersion Gold |
Nickel 3-7um Au:1-5u'' |
|
|
OSP |
0.2-0.5um |
|
|
Outline |
||
|
Panel Outline Tol (+/-) |
CNC: ±0.125mm, Punching: ±0.15mm |
|
|
Beveling |
30°45° |
|
|
Gold Finger angle |
15° 30° 45° 60° |
|
|
Certificate |
ROHS, ISO9001:2008, SGS, UL certificate |
|
Our PCBs are widely used in communication apparatus,automobile electronics,computers,
power supply,medical devices and network devices and consumer electronics class fields
such as GPS,UPS,Set-top Box,telecomunication,LED,etc.
If you are interested,pls sent me your Gerber files and PCB Specifications(such as copper thickness:18um or 35um?,board thickness:0.8mm or 1.6mm?,surface treatment:lead-free HASL or immersion gold?),if it’s the PCBA,pls sent me the BOM list(including all components details),then we will quote for your at first time,we always try our best,you will
find that we are the right PCB supplier you want.
