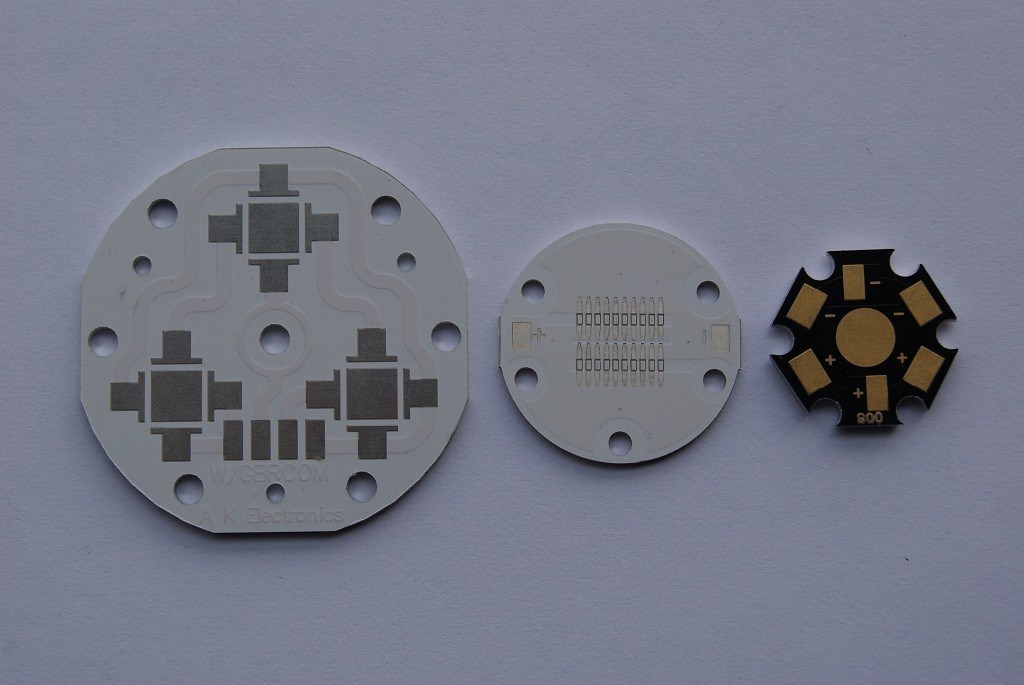

3 Layers Presensitized Round Aluminium Base High Power Led PCB Fabrication manufacture

3 Layers Presensitized Round Aluminium Base High Power Led PCB Fabrication manufacture
3 Layers Presensitized Round Aluminium Base High Power Led PCB Fabrication manufacture

Large Image :  3 Layers Presensitized Round Aluminium Base High Power Led PCB Fabrication manufacture

Product Details:

Place of Origin: shen zhen ,china
Brand Name: WonDa
Certification: CE、ROHS、 FCC,UL ,SGS

Payment & Shipping Terms:

Payment Terms: L/C,T/T,Paypal
Detailed Product Description
High Light:

led light pcb board

,

led lighting board

3 Layers Presensitized Round Aluminium Base High Power Led PCB Fabrication manufacture



Capability



layers:1-4layers

Base material: Aluminum/Copper/Iron Alloy

Thermal Conductivity (dielectrial layer): 0.8, 1.5, 2.0, 3.0 W/m.K.

Withstand voltage:2000-8000V

Board Thickness: 0.5mm~3.0mm(0.02"~0.12")

Copper thickness: 0.5 OZ, 1.0 OZ, 2.0 OZ, 3.0 OZ, up to 6 OZ

Outline: Routing, punching, V-Cut

Soldermask: White/Black/Blue/Green/Red ,Taiyo PSR4000 white

Legend/Silkscreen Color: Black/White

Surface finishing: Immersion Gold, HASL, OSP

Max Panel size: 600*1200mm(23.62"*47.24")

Packing: Vacuum/Plastic bag

Samples L/T: 4~6 Days





Detailed Product Description





Single Layer Metal Core PCB

A simple layer single sided MCPCB consists of a metal base (usually aluminum, or copper alloy), Dielectric (non-conducting) Layer, Copper Circuit Layer, IC components and solder mask.

The prepreg dielectric provides excellent heat transfer from the foil and components to the base plate, while maintaining excellent electrical isolation. The base aluminum/copper plate gives the single-sided substrate mechanical integrity, and distributes and transfers the heat to a heat sink, mounting surface or directly to the ambient air.

The Single-Layer MCPCB can be used with surface mount and chip & wire components, and provides much lower thermal resistance than FR4 PWB. The metal core provides lower cost than ceramic substrates, and allows much larger areas than ceramic substrates.



Double Layers Metal Core PCB



Double layers MCPCB is consisting of two layers of copper conductor, put them on same side of metal core (usually aluminum, copper or iron alloy). The metal base is on the bottom of whole MCPCB, which is different from double sided MCPCB(the two copper layers were put on the each side of metal core respectively), and you can only populate SMD on top side.

Different with Single layer MCPCB, 2 layers MCPCB requires an additional pressing step to laminate the imaged thermal conductive laminate and metal core (also known as metal base) together.

Compared with normal FR4, this sturcture need more technology and experience on laminating of two layers together with metal core.

The processing steps of the MCPCB with the metal base embedded in the PCB are comparatively complex as hole plugging is required after primary drilling on the metal base in order to isolate it from the circuitry.



Double Sided Metal Core PCB



It also has same two layers of copper conductor like Double layers MCPCB, but the metal core is in the middle of two conductor, so there're conductors (trace) on both sides of metal core, and were connected to each other by Vias. So we named it "Double sided MCPCB", and you can populated SMD on both top and bottom.

Different with Single layer MCPCB, double sided MCPCB also requires an additional pressing step to laminate the imaged thermal conductive laminate and metal core (also known as metal base) together. But sometimes, some raw Metal Clad material vendor will supply board material which already laminated.

Compared with normal FR4, this sturcture need more technology and experience on laminating of two layers together with metal core.



Multi Layers Metal Core PCB



Just like FR4 PCB, we can also make boards with more than 2 layers of traces and we named it "Multi Layers MCPCB". The structure is similar with FR4 Multi Layers, but it much more complex to make.

You can populated more components on the boards, put signal and ground layer into seperated layers, to achieve better performance in electrical performance.

Compared with normal FR4, this sturcture need more technology and experience on laminating of more than two layers together with metal core and the cost is much higher than 2 layers MCPCBor double sided MCPCB.



Application of MCPCB



LED lights:High-current LED, Spotlight, high-current PCB



Industrial power equipment:High-power transistors, transistor arrays, push-pull or totem pole output circuit (to tem pole), solid-state relay, pulse motor driver, the engine Computing amplifiers (Operational amplifier for serro-motor), pole-changing device (Inverter)



Cars:firing implement, power regulator, exchange converters, power controllers, variable optical system



Power:voltage regulator series, switching regulator, DC-DC converters



OA:Printer driver, large electronic display substrate, thermal print head



Audio:input - output amplifier, balanced amplifier, pre-shield amplifier, audio amplifier, power amplifier



Others:Semiconductor thermal insulation board, IC arrays, resistor arrays, Ics carrier chip, heat sink, solar cell substrates, semiconductor refrigeration device







Advantage:

1.Aluminium  PCB & LED PCB factory directly
2. Aluminium  PCB & LED PCB Have the comprehensive quality control system

 3. Aluminium  PCB & LED PCB good price
4. Aluminium  PCB & LED PCB quick turn Delivery time from 48hours.
5. Aluminium  PCB& LED PCBcertification(ISO/UL E354810/RoHS).

6.8 years experience in exporting service

7.Aluminium PCB& LED PCB is no MOQ.

8.PCB is high quality.Strict through theAOI(Automated Optical Inspection),QA/QC,fly porbe ,Etesting





material



our Aluminium base material :bergquist(usa),Polytronics(Taiwan),totking(china),etc. thermal conductivity range from 1W/m.K to 8 W/m.K Withstand Voltage range is 2KV to 8KV which can help us to meet any need of our clients,also reduce purchasing cost.
