Hard Drive PCB

  • High Precision Hard Drive PCB suppliers
  • High Precision Hard Drive PCB suppliers





Service Details:


1) Fast PCB with in 12 hours, 24 hours and 48 hours are available.
2) No MOQ for PCB ,PCBA ,FPC and Alu pcb.
3) Boards are RoHS compliant with UL.
4) Engineers with over 10 years of working experience can offer you professional suggestions.
5) Factory production Capability of 15000 sqm/month.
6) Quality inspection standard: IPC-6012 Class II.
7) Base material: FR4, Hi-tg FR4, Aluminum, High frequency (Rogers, Taconic, F4B, Arlon etc.), PI, PET.





Our Advantages (why us ?):



1) Every board is to IPC Class II or higher standard.
2) All boards are UL approved and made in ISO-9001 certified facilities.
3) 100% tested (flying probe or E-test).
4) PCB Design Rule Check with no extra cost.
5) Impedence control test.
6) Free panelizing.
7) Special price/service package for partners.
8) Professional engineering support. We work with customers closely to ensure the boards are standards compliant.
9) On time delivery.
10) No minimum/maximum order.
11) Worldwide shipping.





FAQ


What are the available holes sizes?


14 mils to 150 mils - 1 mil increments
150 mils to 200 mils - 5 mil increments
above 200 mils - holes would be routed out
We only use drills in imperial units. Files submitted in metric units (mm)  would be converted to imperial units (mils) and rounded up to the next mil.



I am used to designing in metric units while the website is specified in imperial units. Is there a conversion chart I can refer to ?


When requesting an online quote, the quote form can handle mm units as well as inches for dimensions.



How do I specify internal cutouts/milling in my design?


All internal cutouts/slots/milling should be specified on the same layer is the board outline. The the minimum routable slot size is 32 mils. During order time, please state this requirement in the "Special Request" section so that our CAM engineers is aware of it. This is not something we encounter often - so there are chances we may overlook it. Make sure it's known to us.

Blue Solder and Semi Holes Custom PCB Boards / Multilayer PCB Fabrication 20 Layer

Blue Solder and Semi Holes Custom PCB Boards / Multilayer PCB Fabrication 20 Layer
Blue Solder and Semi Holes Custom PCB Boards / Multilayer PCB Fabrication 20 Layer

Large Image :  Blue Solder and Semi Holes Custom PCB Boards / Multilayer PCB Fabrication 20 Layer

Product Details:

Place of Origin: China
Brand Name: LT Circuit
Certification: UL E354810,SGS

Payment & Shipping Terms:

Payment Terms: L/C,T/T,Paypal
Detailed Product Description
High Light:

replace hard drive pcb

,

hard drive pcb replacement

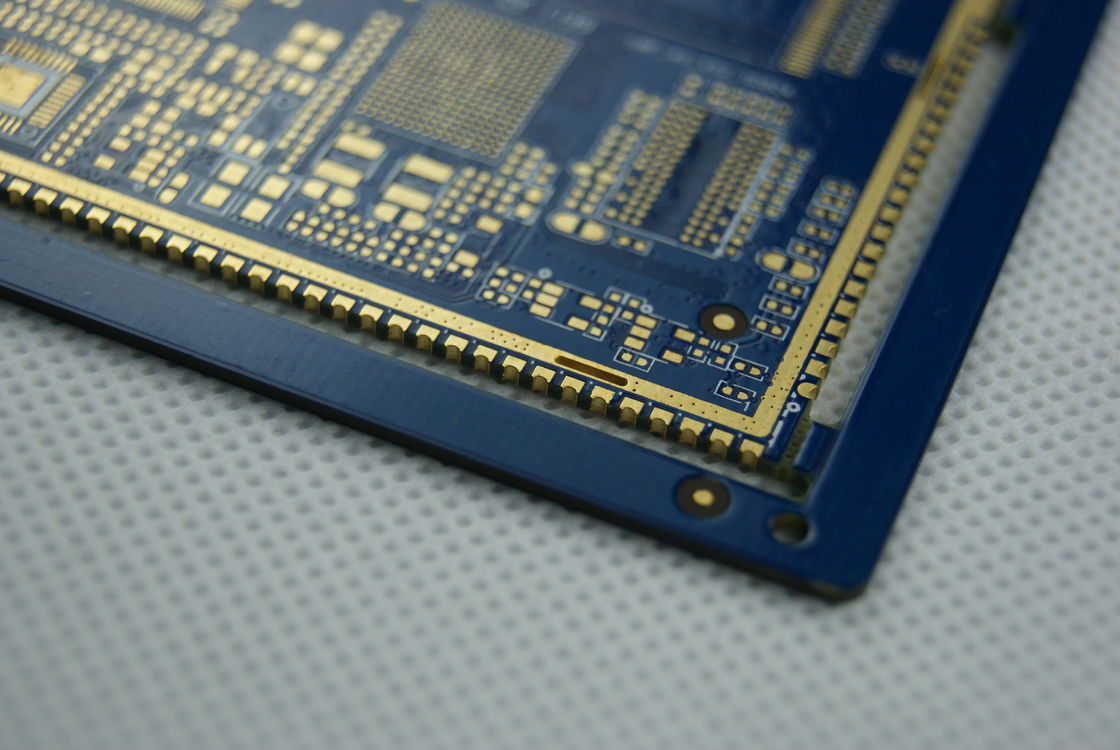

Blue Solder and Semi Holes Custom PCB Boards / Multilayer PCB Fabrication 20 Layer





Description



1. Professional manufacturer of PCB and PCB assembly specialized in single-sided PCB, double-sided PCB, multilayer PCB, PCB layout and design and PCB assembly

2. Material Type: FR4,non-halogen material ,Aluminium Base,Cooper Base,high frequency material ,Thick copper foil,94-V0(HB),PI Material,HIGH TG:SL S1000-2,ITEQ:IT180

3. Surface treatment: HAL,Immersion Gold,Immersion Tin,Immersion silver,Gold Finger,OSP,HAL(Immersion Gold,OSP,Immersion silver,Immersion Tin)+Gold Finger





Application



Products are applied to a wide range of High-tech industries such as: LED, telecommunication, computer application, lighting, game machine, industrial control, power, automobile and high-end consumer electronics, ect. By unremitting work and effort to the marketing, products exports to American, Canada, Europe counties, Africa and other Asia-pacific countries




Advantage



1. PCB factory directly

2. PCB Have the comprehensive quality control system

3. PCB good price

4. PCB quick turn delivery time from 48hours.

5. PCB certification(ISO/UL E354810/RoHS)

6. 8 years experience in exporting service

7. PCB is no MOQ/MOV.

8. PCB is high quality.Strict through theAOI(Automated Optical Inspection),QA/QC,fly porbe ,Etesting





Specifications





High precision prototype

PCB bulk production

Max Layers

1-28 layers

1-14 layers

MIN Line width(mil)

3mil

4mil

MIN Line space(mil)

3mil

4mil

Min via (mechanical drilling)

Board thickness≤1.2mm

0.15mm

0.2mm

Board thickness≤2.5mm

0.2mm

0.3mm

Board thickness>2.5mm

Aspect Ration≤13:1

Aspect Ration≤13:1

Aspect Ration

Aspect Ration≤13:1

Aspect Ration≤13:1

Board thickness

MAX

8mm

7mm

MIN

2 layers:0.2mm;4 layers:0.35mm;6 layers:0.55mm;8 layers:0.7mm;10 layers:0.9mm

2 layers:0.2mm;4 layers:0.4mm;6 layers:0.6mm;8layers:0.8mm

MAX Board size

610*1200mm

610*1200mm

Max copper thickness

0.5-6oz

0.5-6oz

Immersion Gold/

Gold Plated Thickness

Immersion Gold:Au,1—8u”
Gold finger:Au,1—150u”
Gold Plated:Au,1—150u”
Nickel Plated :50—500u”



Hole copper thick

25um 1mil

25um 1mil

Tolerance

Board thickness

Board thickness≤1.0mm:+/-0.1mm
1.0mm<Board thickness≤2.0mm:+/-10%
Board thickness>2.0mm:+/-8%

Board thickness≤1.0mm:+/-0.1mm
1.0mm<Board thickness≤2.0mm:+/-10%
Board thickness>2.0mm:+/-8%

Outline Tolerance

≤100mm:+/-0.1mm
100< ≤300mm:+/-0.15mm
>300mm:+/-0.2mm

≤100mm:+/-0.13mm
100< ≤300mm:+/-0.15mm
>300mm:+/-0.2mm

Impedance

±10%

±10%

MIN Solder mask bridge

 0.08mm

 0.10mm

Plugging Vias capability

 0.25mm--0.60mm

 0.70mm--1.00mm
