HDI PCB Board

Material

FR4,non-halogen material ,Aluminium Base,Cooper Base,high frequency material ,Thick copper foil,94-V0(HB),PI Material,HIGH TG:SL S1000-2,ITEQ:IT180

Surface Treatment

HAL,Immersion Gold,Immersion Tin,Immersion silver,Gold Finger,OSP,HAL(Immersion Gold,OSP,Immersion silver,Immersion Tin)+Gold Finger

Advantage

1.PCB factory directly
2.PCB high quality
3.PCB good price
4.PCB quick time
5.PCB certification(ISO/UL E354810/RoHS)

Capability:

-High Frequency (TACONIC material)/TG/Density/precision impedance controlled boards

-Heavy Copper PCB, Metal based PCB. Hard Gold PCB, Blind &Buried vias boards,

Halogen Free PCB, Aluminum-backed Boards

-Gold finger+ HAL & Leadfree HASL PCB, Leadfree compatible PCB

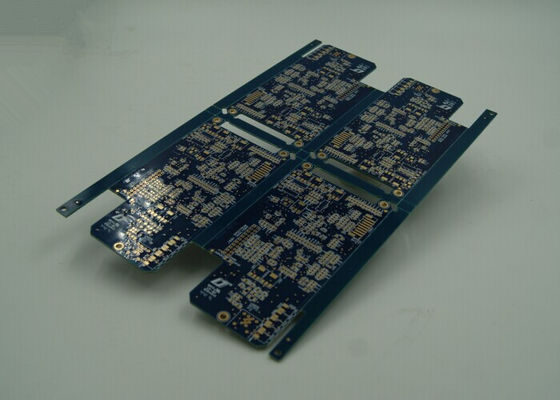

Blue BGA HDI Printed Circuit Board with Blind Via Burried Vias

Large Image : Blue BGA HDI Printed Circuit Board with Blind Via Burried Vias

Product Details:

Place of Origin:	China
Brand Name:	LT Circuit
Certification:	UL E354810,SGS

Payment & Shipping Terms:

Minimum Order Quantity:	NO MOQ
Price:	Negotiable
Packaging Details:	20pcs/vacuum bag+export packing
Delivery Time:	5-12Days
Payment Terms:	L/C,T/T,Paypal
Supply Ability:	Ten thousand square meters/month

Contact Now

Detailed Product Description

Material:	FR4	Layer:	6 Layer
Copper Thickness:	1 Oz	Surface Plating:	Immersion Gold
Solder Mask:	Blue	Silkscreen:	White
Board Thickness:	1.6mm
Highlight:	high density board , hdi circuit boards

Blue BGA HDI Printed Circuit Board with Blind Via Burried Vias

PCB Capability

		High precision prototype	PCB bulk production
Max Layers		1-28 layers	1-14 layers
MIN Line width(mil)		3mil	4mil
MIN Line space(mil)		3mil	4mil
Min via (mechanical drilling)	Board thickness≤1.2mm	0.15mm	0.2mm
	Board thickness≤2.5mm	0.2mm	0.3mm
	Board thickness＞2.5mm	Aspect Ration≤13:1	Aspect Ration≤13:1
Aspect Ration		Aspect Ration≤13:1	Aspect Ration≤13:1
Board thickness	MAX	8mm	7mm
Board thickness	MIN	2 layers:0.2mm;4 layers:0.35mm;6 layers:0.55mm;8 layers:0.7mm;10 layers:0.9mm	2 layers:0.2mm;4 layers:0.4mm;6 layers:0.6mm;8layers:0.8mm
MAX Board size		*6101200mm**	*6101200mm**
Max copper thickness		0.5-6oz	0.5-6oz
Immersion Gold/ Gold Plated Thickness		Immersion Gold:Au,1—8u” Gold finger:Au,1—150u” Gold Plated:Au,1—150u” Nickel Plated :50—500u”
Hole copper thick		25um 1mil	25um 1mil
Tolerance	Board thickness	Board thickness≤1.0mm:+/-0.1mm 1.0mm<Board thickness≤2.0mm:+/-10% Board thickness>2.0mm:+/-8%	Board thickness≤1.0mm:+/-0.1mm 1.0mm<Board thickness≤2.0mm:+/-10% Board thickness>2.0mm:+/-8%
	Outline Tolerance	≤100mm:+/-0.1mm 100< ≤300mm:+/-0.15mm >300mm:+/-0.2mm	≤100mm:+/-0.13mm 100< ≤300mm:+/-0.15mm >300mm:+/-0.2mm
	Impedance	±10%	±10%
MIN Solder mask bridge		0.08mm	0.10mm
Plugging Vias capability		0.25mm--0.60mm	0.70mm--1.00mm

Description

1. Professional manufacturer of PCB and PCB assembly specialized in single-sided PCB, double-sided PCB, multilayer PCB, PCB layout and design and PCB assembly

2. Material Type: FR4,non-halogen material ,Aluminium Base,Cooper Base,high frequency material ,Thick copper foil,94-V0(HB),PI Material,HIGH TG:SL S1000-2,ITEQ:IT180

3. Surface treatment: HAL,Immersion Gold,Immersion Tin,Immersion silver,Gold Finger,OSP,HAL(Immersion Gold,OSP,Immersion silver,Immersion Tin)+Gold Finger

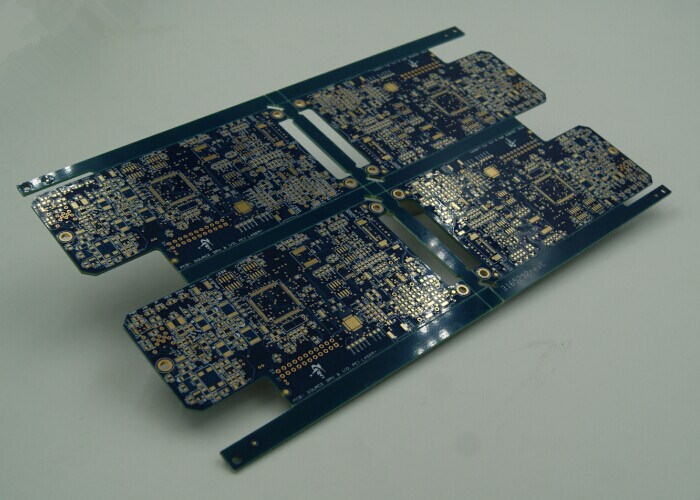

Blue BGA HDI Printed Circuit Board with Blind Via Burried Vias

Blind via: It's from one of the surface to any of inner layer.

burried Via: It's via that is between inner layers. burried via is not accessable from top or bottom laye.

Blue BGA HDI Printed Circuit Board with Blind Via Burried Vias

Advantage

1.PCB factory directly
2.PCB high quality
3.PCB good price
4.PCB quick time
5.PCB certification(ISO/UL E354810/RoHS)

Blue BGA HDI Printed Circuit Board with Blind Via Burried Vias
