Introduction:
Focus on the most basic of PCB, components focused on one side, the other side of the wire is concentrated.Because wires only appear on one side, so this kind of PCB is called single sided PCB.
Single panel wiring diagram is given priority to with the network printing, that is, in the copper surface printed on resistance agent, to prevent welding resistance after etching printed on mark, and then punching processing way to complete the parts guide hole and the appearance.In addition, part of a small amount of diverse products, are using photosensitive resistance agent forming pattern of the photographic method.
Operating temperatures range from 130 C to 230 C. Single sided boards are available with surface finishes including Organic surface protectant (OSP), Immersion Silver, Tin, and Gold plating along with both leaded or lead-free Hot Air Solder Level (HASL).
Material:
Single sided PCB base material in paper phenolic copper paper laminated board, epoxy resin copper laminated plate is given priority to.
Structure:
First, the copper foil to be etched, etc. Process to obtain a circuit required, a protective film to be drilled to expose the corresponding pad. After cleaning and then rolling method to combine the two. Then the pad portion exposed gold plating or tin protection.
Production Process:
Single copper-clad plate - blanking - photochemical method/screen printing image transfer - remove corrosion was printed - cleaning, dry - hole machining - shape - dry cleaning - printing resistance welding coating - cure - printing mark symbol - cure - dry cleaning drying - pre coated flux - a finished product
Application
Single sided PCB most use in the radio, heating machine, cold storage, washing machines and other electrical appliances product, as well as the printer, vending machines, LED lighting, electronic components, such as commercial machine circuit
Product Details:
Payment & Shipping Terms:
|
High Light: | single sided printed circuit boards,blank circuit board |
---|

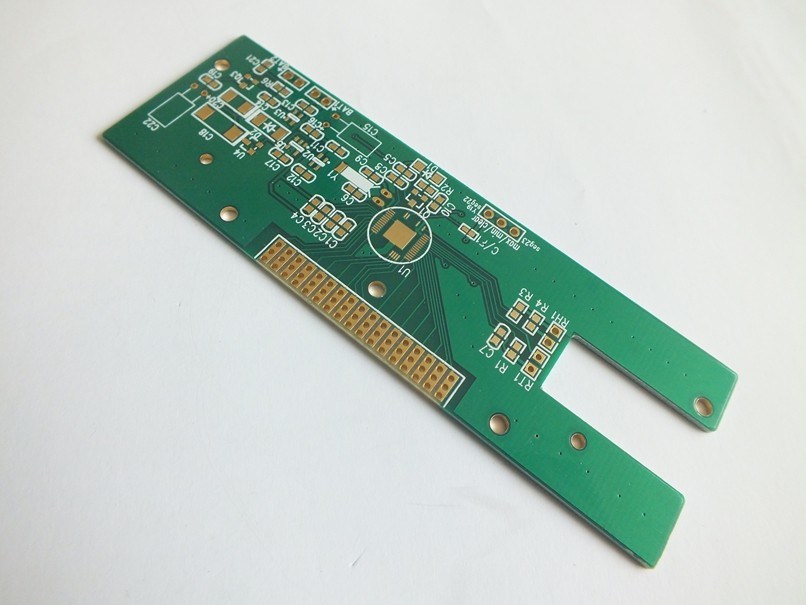

Custom FR1 1 Layer Single Sided High-Tg PCB Printed Circuit Board
PRODUCT’S DETAILS |
|
Raw Material |
FR-1 |
Layer Count |
1-Layer |
Board Thickness |
2.0mm |
Copper Thickness |
2.0oz |
Surface Finish |
ENIG(Electroless Nickel Immersion Gold) |
Solder Mask |
Green |
Silkscreen |
White |
Min. Trace Width/Spacing |
0.075/0.075mm |
Min. Hole Size |
0.25mm |
Hole Wall Copper Thickness |
≥20μm |
Measurement |
300×400mm |
Packaging |
Inner: Vacuum-packed in soft plastic bales |
Application |
Communication,automobile,cell,computer,medical |
Advantage |
Competitive Price,Fast Delivery,OEM&ODM,Free Samples, |
Special Requirements |
Buried And Blind Via, Impedance Control, Via Plug, |
Certification |
UL,ISO9001:2008,ROHS,REACH,SGS,HALOGEN-FREE |
PRODUCTION CAPABILITY OF PCB |
||
|
ITEMS Item |
|
Laminate |
Type |
FR-1,FR-5,FR-4 High-Tg,ROGERS,ISOLA,ITEQ, |
Thickness |
0.2~3.2mm |
|
Production Type |
Layer Count |
2L-16L |
Surface Treatment |
HAL,Gold Plating,Immersion Gold,OSP, |
|
Cut Lamination |
Max. Working Panel size |
1000×1200mm |
Inner Layer |
Internal Core Thickness |
0.1~2.0mm |
Internal width/spacing |
Min: 4/4mil |
|
Internal Copper Thickness |
1.0~3.0oz |
|
Dimension |
Board Thickness Tolerance |
±10% |
Interlayer Alignment |
±3mil |
|
Drilling |
Manufacture Panel Size |
Max: 650×560mm |
Drilling Diameter |
≧0.25mm |
|
Hole Diameter Tolerance |
±0.05mm |
|
Hole Position Tolerance |
±0.076mm |
|
Min.Annular Ring |
0.05mm |
|
PTH+Panel Plating |
Hole Wall copper Thickness |
≧20um |
Uniformity |
≧90% |
|
Outer Layer |
Track Width |
Min: 0.08mm |
Track Spacing |
Min: 0.08mm |
|
Pattern Plating |
Finished Copper Thickness |
1oz~3oz |
EING/Flash Gold |
Nickel Thickness |
2.5um~5.0um |
Gold Thickness |
0.03~0.05um |
|
Solder Mask |
Thickness |
15~35um |
Solder Mask Bridge |
3mil |
|
Legend |
Line width/Line spacing |
6/6mil |
Gold Finger |
Nickel Thickness |
≧120u〞 |
Gold Thickness |
1~50u〞 |
|
Hot Air Level |
Tin Thickness |
100~300u〞 |
Routing |
Tolerance of Dimension |
±0.1mm |
Slot Size |
Min:0.4mm |
|
Cutter Diameter |
0.8~2.4mm |
|
Punching |
Outline Tolerance |
±0.1mm |
Slot Size |
Min:0.5mm |
|
V-CUT |
V-CUT Dimension |
Min:60mm |
Angle |
15°30°45° |
|
Remain Thickness Tolerance |
±0.1mm |
|
Beveling |
Beveling Dimension |
30~300mm |
Test |
Testing Voltage |
250V |
Max.Dimension |
540×400mm |
|
Impedance Control |
|
±10% |
Aspect Ration |
12:1 |
|
Laser Drilling Size |
4mil(0.1mm) |
|
Special Requirements |
Buried And Blind Via, Impedance Control, Via Plug, |
|
OEM&ODM Service |
Yes |
