Double Sided PCB

  • High Precision Double Sided PCB suppliers
  • High Precision Double Sided PCB suppliers





Introduction


Double sided circuit board means has a double-sided copper, and metallized holes, that is double-sided copper, and copper are holes inside

Both sides have double wiring board, but to use the wire on both sides. Both sides must be in the room with appropriate electrical connections. "Bridge" between this circuit called vias. Guide hole in the PCB, metal filled or coated with holes, which can be connected to the conductors on both sides. Because dual-panel area twice as big than the single panel, double panel to solve the single-panel wiring staggered because of difficulty (can be turned to the other side of the hole), it is more suitable for use in more complex than single-panel circuit.





Advantages


Compared with single-board: wiring convenient, simple, labor-intensive wiring smaller, shorter line length.





Double Circuit Board Design Steps



     1. Prepare circuit schematics

     2. Create a new file and loaded PCB component package library

     3, planning board

     4, into the network table and components

     5, automatic layout components

     6, layout adjustment

     7, the network density analysis

     8, wiring rules set

     9, automatic routing

     10, manually adjust the wiring



2 layer PCB Prototype Board , Double Sided Printed Circuit Board Green Solder Mask

2 layer PCB Prototype Board , Double Sided Printed Circuit Board Green Solder Mask
2 layer PCB Prototype Board , Double Sided Printed Circuit Board Green Solder Mask

Large Image :  2 layer PCB Prototype Board , Double Sided Printed Circuit Board Green Solder Mask

Product Details:

Place of Origin: China
Brand Name: EastPCB
Certification: UL,RoHS,ISO9001,ISO14001,TS16949

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: By size, technology and quantity
Packaging Details: Vacuum sealed package
Delivery Time: 3-6 days
Payment Terms: PayPal / Western Union / Credit card / Bank
Shipping Way: By Air , DHL / FedEx / UPS / TNT
Detailed Product Description
High Light:

quick turn pcb prototypes

,

double sided printed circuit board

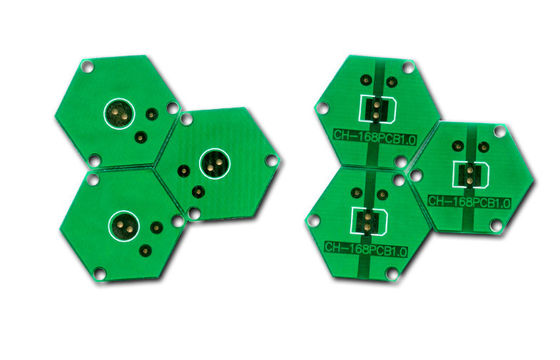

2 layer PCB Prototype Board , Double Sided Printed Circuit Board Green Solder Mask





> Brand Name:    East PCB

> WebSite:          www.eastpcb.com

> Material:           FR4

> Layer Count:    2 Layers

> Board Thickness:      1.6 mm

> Copper Thickness:    1OZ

> Surface Finish:          Immersion Gold

> Solder Mask:      Green (top&bot)

> Silkscreen:         White screen (top&bot)

> Min drill/pad:       0.3mm/ 0.5mm

> Certification:      UL, RoHS, ISO9001,

                             ISO14001, TS16949







Why choose us:



> Low cost PCB, you can save money on your prototype production.



> Fast PCB prototype, PCB boards arrive your door only 8-10 days.



> Prototype PCB, no min quantity required ,1pcs is OK!



> Tooling charge only once, conducive to repeat order PCB Manufacture.



> Quick Turn PCB, get detailed and exact quotation maybe only 1 hours.



> Keep all costs to min and max our customers' benefits!







How to get PCB from EastPCB:



PCB Manufacturing is a long and complex process. East PCB make it so easy:



1, Send Email:  sales01@eastpcb.com, Attached your design files (Gerber files, drill and readme file in a zip format ) and your quotation request.



2, Within 8 hours, you’ll receive the detailed and exact quotation that include PCB information and PCB price. If you are interesting with the quotation, you can send Purchase Order or Email tell us.



3, We’ll review your design files and start your job once get your payment.

then, all you need to do is waiting for the delivery person ringing your door.



4, You can payment by PayPal, Master, Visa or Western Union.

pls payment by Bank if you going to mid or big order.



5, DHL, FeDex, UPS, TNT are our shipping partner, usually only 1-2 days to USA, Canada, Australia, 2-3 days to France, England, Italy etc Europe country.



More and more customers that from United States, Australia, Europe join us, welcome you to do the next one.
