Single Sided PCB

  • High Precision Single Sided PCB suppliers
  • High Precision Single Sided PCB suppliers
  • High Precision Single Sided PCB suppliers
  • High Precision Single Sided PCB suppliers
  • High Precision Single Sided PCB suppliers
  • High Precision Single Sided PCB suppliers

Introduction:

Focus on the most basic of PCB, components focused on one side, the other side of the wire is concentrated.Because wires only appear on one side, so this kind of PCB is called single sided PCB.

Single panel wiring diagram is given priority to with the network printing, that is, in the copper surface printed on resistance agent, to prevent welding resistance after etching printed on mark, and then punching processing way to complete the parts guide hole and the appearance.In addition, part of a small amount of diverse products, are using photosensitive resistance agent forming pattern of the photographic method.

Operating temperatures range from 130 C to 230 C.  Single sided boards are available with surface finishes including Organic surface protectant (OSP), Immersion Silver, Tin, and Gold plating along with both leaded or lead-free Hot Air Solder Level (HASL).








Material:





Single sided PCB base material in paper phenolic copper paper laminated board, epoxy resin copper laminated plate is given priority to.





Structure:



First, the copper foil to be etched, etc. Process to obtain a circuit required, a protective film to be drilled to expose the corresponding pad. After cleaning and then rolling method to combine the two. Then the pad portion exposed gold plating or tin protection.





Production Process:


Single copper-clad plate - blanking - photochemical method/screen printing image transfer - remove corrosion was printed - cleaning, dry - hole machining - shape - dry cleaning - printing resistance welding coating - cure - printing mark symbol - cure - dry cleaning drying - pre coated flux - a finished product




Application



Single sided PCB most use in the radio, heating machine, cold storage, washing machines and other electrical appliances product, as well as the printer, vending machines, LED lighting, electronic components, such as commercial machine circuit

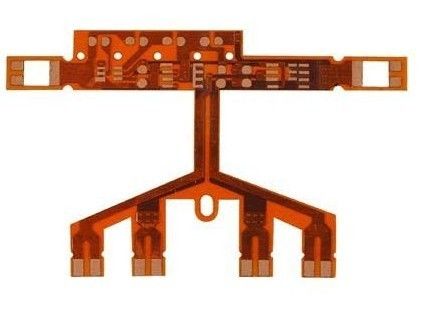

Professional Single Sided PCB Flexible Printed Circuit Boards Custom

Professional Single Sided PCB Flexible Printed Circuit Boards Custom
Professional Single Sided PCB Flexible Printed Circuit Boards Custom

Large Image :  Professional Single Sided PCB Flexible Printed Circuit Boards Custom

Product Details:

Place of Origin: China
Brand Name: HUASWIN
Certification: ISO/UL/RoHS
Model Number: HSFPC1006

Payment & Shipping Terms:

Minimum Order Quantity: 1 sets
Price: Negotiation
Packaging Details: Anti-static bag + Anti-static bubble wrap + Good quality carton box
Delivery Time: 15-20 working days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 10,000pcs per month
Detailed Product Description
High Light:

Flexible Printed Circuit Board

,

flexible printed board



One-Stop Solution of Flexible Printed Circuit Boards (FPC Board)



Product Description


Our Service:

* All kinds of PCB fabrication, including single-sided PCB/Double-sided PCB/Multilayer PCB/FPC/Rigid PCB, etc
* Turnkey service for PCB&PCB Assembly, including parts purchase. PCB manufacturing and final board testing.
* PCB&PCBA Copy
* We produce different kinds of cellphone and tablet PC, such as Nokia/Samsung/iPhone/Huawei/Lenovo, etc


PCB Advantages:

*Reliability of Design
— — Tight circuit design
— — No loose wires to pop-out
*Repeatability of experiments
— — Physically rugged
— — Archival design
— — No "black magic" to recreate original results
*Control of geometric considerations
— — Stray inductances and capacitances
*Cost of development
— — Time spend wire-wrapping and debugging
*Marketable engineering skill


PCB capability:

- We are able to make any kind of PCB with high quality and favorable price in a short lead time.
- also we can offer you one-stop turnkey service for PCB Assembly,
Including components sourcing. PCB fabrication. Components assembly and final PCBA test.
- All we need is your PCB Gerber file(∁onents bom-list for PCBA) or Sample(we can copy it)
- pls notice that we don't have any existing product.
All of our board are made according to client's file or sample.
- if you have any demand for PCB&PCBA, pls kindly contact with me fore more details.





Shipping Method and Payment terms:
1. By DHL, UPS, FedEx, TNT using clients account.
2. We suggest you using our DHL, UPS, FedEx, TNT forwarder.
3. By EMS (Usually for Russia Clients), price is high.
4. By sea for mass quantity according to customer's requirement.
5. By customer's Forwarder
6. By Paypal, T/T, West Union, etc.



Detailed Specification of Flexible PCB Manufacturing


Technical  Specification

Layers:

1~10 (flex Pcb)  and 2~8 (rigid flex)



Min Panel Size:

5mm x 8mm



Max Panel Size:

250 x 520mm



Min Finished board thickness:

0.05mm (1 sided inclusive copper)



Max Finished board thickness:

0.3mm (2 sided inclusive copper)



Finished board thickness tolerance:

±0.02~0.03mm



Material:

Kapton, Polyimide, PET



Base copper thickness (RA or ED):

1/3 oz, 1/2 oz, 1oz, 2oz



Base PI thickness:

0.5mil, 0.7mil, 0.8mil, 1mil, 2mil



Stiffner:

Polyimide, PET, FR4, SUS



Min Finished hole diameter:

Φ 0.15mm



Max Finished hole diameter:

Φ 6.30mm



Finished hole diameter tolerance (PTH):

±2 mil ( ±0.050mm)



Finished hole diameter tolerance (NPTH):

±1 mil ( ±0.025mm)



Min width/spacing (1/3oz):

0.05mm/0.06mm



Min width/spacing (1/2oz):

0.06mm/0.07mm



Min width/spacing (1oz):

Single layer: 0.07mm/0.08mm



Double layer: 0.08mm/0.09mm



Aspect Ratio

6:01

8:01

Base Copper

1/3Oz--2Oz

3 Oz for Prototype

Size Tolerance

Conductor Width:±10%

W ≤0.5mm

Hole Size: ±0.05mm

H ≤1.5mm

Hole Registration: ±0.050mm



Outline Tolerance:±0.075mm

L ≤50mm

Surface Treatment

ENIG: 0.025um - 3um



OSP:



Immersion Tin: 0.04-1.5um



Dielectric Strength

AC500V



Solder Float

288℃/10s

IPC Standard

Peeling Strength

1.0kgf/cm

IPC-TM-650

Flammability

94V-O

UL



PCB Assembly services:

SMT Assembly
Automatic Pick & Place
Component Placement as Small as 0201
Fine Pitch QEP - BGA
Automatic Optical Inspection
Through-hole Assembly
Wave Soldering
Hand Assembly and Soldering
Material Sourcing
IC pre-programming / Burning on-line
Function testing as requested
Aging test for LED and Power boards
Complete unit assembly (which including plastics, metal box, Coil, cable assembly etc)
Packing design


Conformal coating
Both dip-coating and vertical spray coating is available. Protecting non-conductive dielectric layer that is
 applied onto the printed circuit board assembly to protect the electronic assembly from damage due to
contamination, salt spray, moisture, fungus, dust and corrosion caused by harsh or extreme environments.
When coated, it is clearly visible as a clear and shiny material.
Complete box build
Complete 'Box Build' solutions including materials management of all components, electromechanical parts,
plastics, casings and print & packaging material

Testing Methods
AOI Testing
· Checks for solder paste
· Checks for components down to 0201"
· Checks for missing components, offset, incorrect parts, polarity
X-Ray Inspection
X-Ray provides high-resolution inspection of:
· BGAs
· Bare boards
In-Circuit Testing
In-Circuit Testing is commonly used in conjunction with AOI minimizing functional defects caused by
component problems.
· Power-up Test
· Advanced Function Test
· Flash Device Programming
· Functional testing


Detailed Specification of Pcb Assembly


1

Type of Assembly

SMT and Thru-hole

2

Solder Type

Water Soluble Solder Paste,Leaded and Lead-Free

3

Components

Passives Down to 0201 Size

BGA and VFBGA

Leadless Chip Carries/CSP

Double-Sided SMT Assembly

Fine Pitch to 08 Mils

BGA Repair and Reball

Part Removal and Replacement-Same Day Service

3

Bare Board Size

Smallest:0.25x0.25 Inches

Largest:20x20 Inches

4

File Formats

Bill of Materials

Gerber Files

Pick-N-Place File(XYRS)

5

Type of Service

Turn-Key,Partial Turn-Key or Consignment

6

Component Packaging

Cut Tape

Tube

Reels

Loose Parts

7

Turn Time

15 to 20 days

8

Testing

AOI inspection

X-Ray inspection

In-Circuit testing

Functional test




Contact Details
PCB Board Online Marketplace

Contact Person: Miss. aaa

Tel: 86 755 8546321

Fax: 86-10-66557788-2345

Send your inquiry directly to us (0 / 3000)
