Prototype PCB Boards

Material Type:

FR4,non-halogen material ,Aluminum Base, Cooper Base,high frequency material ,Thick copper foil,94-V0(HB),PI Material,HIGH TG:SL S1000-2,ITEQ:IT180

Surface treatment: HAL,Immersion Gold,Immersion Tin,Immersion silver,Gold Finger,OSP,HAL(Immersion Gold,OSP,Immersion silver,Immersion Tin)+Gold Finger

Application

PCBs are applied to a wide range of High-tech industries such as: LED, telecommunication, computer application, lighting, game machine, industrial control, power, automobile and high-end consumer electronics, ect. By unremitting work and effort to the marketing, products exports to American, Canada, Europe counties, Africa and other Asia-pacific countries.

FAQ

What are the available holes sizes?

14 mils to 150 mils - 1 mil increments
150 mils to 200 mils - 5 mil increments
above 200 mils - holes would be routed out
We only use drills in imperial units. Files submitted in metric units (mm) would be converted to imperial units (mils) and rounded up to the next mil.

I am used to designing in metric units while the website is specified in imperial units. Is there a conversion chart I can refer to ?

When requesting an online quote, the quote form can handle mm units as well as inches for dimensions.

How do I specify internal cutouts/milling in my design?

All internal cutouts/slots/milling should be specified on the same layer is the board outline. The the minimum routable slot size is 32 mils. During order time, please state this requirement in the "Special Request" section so that our CAM engineers is aware of it. This is not something we encounter often - so there are chances we may overlook it. Make sure it's known to us.

10 Layer Prototype PCB Boards , High TG PCB with Impedance Controlled

Name: 10 Layer Prototype PCB Boards , High TG PCB with Impedance Controlled
Brand: EastPCB
SKU: EastPCB
Rating: 4.5 (175 reviews)

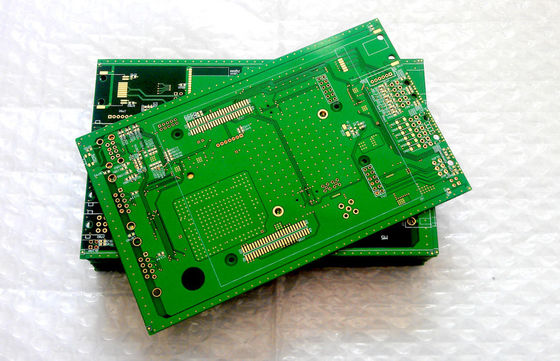

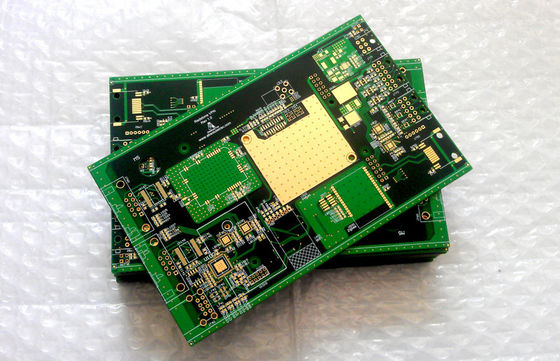

Large Image : 10 Layer Prototype PCB Boards , High TG PCB with Impedance Controlled

Product Details:

Place of Origin:	China
Brand Name:	EastPCB
Certification:	UL,RoHS,ISO9001,ISO14001,TS16949

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	By size, technology and quantity
Packaging Details:	Vacuum sealed package
Delivery Time:	3-6 days
Payment Terms:	PayPal / Western Union / Credit card / Bank
Shipping Way:	By Air , DHL / FedEx / UPS / TNT

Contact Now

Detailed Product Description

Highlight:

prototype printed circuit boards

circuit board fabrication

10 Layer Prototype PCB Boards , High TG PCB with Impedance Controlled

> Brand Name: EastPCB

> Web: www.eastpcb.com

> Material: FR4/TG180

> Layer Count: 10 Layers

> Board Thickness: 2.0 mm

> Copper Thickness: 1OZ

> Surface Finish: Immersion Gold

> Solder Mask: Green (top&bot)

> Silkscreen: White screen (top&bot)

> Min drill/pad: 0.3mm/ 0.5mm

> Certification: UL, RoHS, ISO9001,

ISO14001, TS16949

Prototype PCB Manufacturing Guidelines:

> FR4, 1.6mm, 1OZ copper

> Green Soldermask, White Silkscreens

> Surface Finish: HASL (Lead Free)

> Board size equal to or less than 200 square cm.

> Min hole/pad: 0.3mm/0.6mm.

> Min track thickness/ clearance 0.15mm/0.15mm

> Standard Lead Time

10 Layer Prototype PCB Boards , High TG PCB with Impedance Controlled

The following does attract surcharges:

> FR4 TG170/180 Material

> Other Material thicknesses

> 2oz copper or above

> Min hole/pad: 0.2mm, Min track 0.1mm

> Gold Finish (Immersion gold)

> Multiple design in one panels

> Prototype PCB expedited service.

Now get best PCB boards and Price from East PCB.

> Prototypes PCB builds, reduce your prototyping cost with our great quotation.

> Ready to production, no repeat tooling cost.

> Faster lead time, Best service.

> Quote now, get more cheaper price

More and more customers that from United States, Australia, Europe join us,

welcome you to do the next one.

PCB Capability Overview

NO	Item	Technical capabilities
1	Layer Counts	1-22 layers
2	Material	FR4, High TG FR4, HDI PCB, Flexible PCB, Halogen Free material,etc
3	Board Thickness	0.2-6.0mm
4	Finished Copper	0.5-5 OZ
5	Min line Width/Space	0.1mm(4mil) / 0.1mm(4mil)
6	Min Drill/Pad	0.2mm(8mil) / 0.4mm(16mil)
7	Board Thickness/Hole	Max Ratio: 12:1
8	Solder Mask Color	Green, Blue, Black, White, Yellow, Red, and Matt,etc
9	Silkscreen Color	White, Black, Yellow
10	Min Silkscreen Width/Height	5mil/30mil
11	Surface Finished	HASL, HASL(lead free), Immersion gold / silver / tin, OSP, Gold finger, Peelable mask, etc
12	Other Technology	Non-across blind/buried vias, characteristic impedance control, Flex board etc
13	Reliability Test	Flying probe test, Fixture test, Impedance test, Solderability test, Hole resistance test, Micor metallographic section analysis, etc
