Material Type:
FR4,non-halogen material ,Aluminum Base, Cooper Base,high frequency material ,Thick copper foil,94-V0(HB),PI Material,HIGH TG:SL S1000-2,ITEQ:IT180
Surface treatment: HAL,Immersion Gold,Immersion Tin,Immersion silver,Gold Finger,OSP,HAL(Immersion Gold,OSP,Immersion silver,Immersion Tin)+Gold Finger
Application
PCBs are applied to a wide range of High-tech industries such as: LED, telecommunication, computer application, lighting, game machine, industrial control, power, automobile and high-end consumer electronics, ect. By unremitting work and effort to the marketing, products exports to American, Canada, Europe counties, Africa and other Asia-pacific countries.
FAQ
What are the available holes sizes?
14 mils to 150 mils - 1 mil increments
150 mils to 200 mils - 5 mil increments
above 200 mils - holes would be routed out
We only use drills in imperial units. Files submitted in metric units (mm) would be converted to imperial units (mils) and rounded up to the next mil.
I am used to designing in metric units while the website is specified in imperial units. Is there a conversion chart I can refer to ?
When requesting an online quote, the quote form can handle mm units as well as inches for dimensions.
How do I specify internal cutouts/milling in my design?
All internal cutouts/slots/milling should be specified on the same layer is the board outline. The the minimum routable slot size is 32 mils. During order time, please state this requirement in the "Special Request" section so that our CAM engineers is aware of it. This is not something we encounter often - so there are chances we may overlook it. Make sure it's known to us.
Product Details:
Payment & Shipping Terms:
|
| Base Material: | FR4 | Copper Thickness: | 1OZ |
|---|---|---|---|
| Board Thickness: | 1.6mm | Min. Hole Size: | 0.1mm |
| Min. Line Width: | 0.1mm | Min. Line Spacing: | 0.075mm |
| Surface Finishing: | HASL | Layer: | 2-8 |
| Color: | Green, Red, Blue, White, Yellow | Type: | Controller PCBA, Electronic PCBA |
| High Light: | multilayer pcb,high density pcb |
||

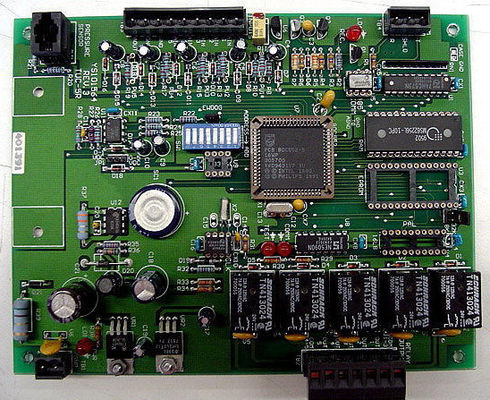

Multilayer Water Soluble Solder Paste Prototype PCB Board AOI Test
Welcome to Rigao Electronics .CO.,Ltd.
Single-side,double-sided and multilayer PCB and PCB Assembly manufacturer/OEM
- Contract Manufacturing
- Mixed-technology (High speed SMT & Through hole assembly)
- PCB Design & Assembly and copy service
- Prototyping
- Components purchasing
- Metal box,Coil,Cable and Wire Assemblies
- Plastics and Molds
| PCB Assembly Specifications | |
| Quantity | Prototype and small to middle volume are our specialty |
| Type of Assembly | SMT and Thru-hole |
| Type of Service | Turn-Key, Partial Turn-Key or Consignment |
| Solder Type | Water Soluble Solder Paste, Leaded and Lead-Free |
| File Formats | Bill of Materials |
| Gerber Files | |
| Pick-N-Place File (XYRS) | |
| Bare Board Size | Smallest: 0.25 x 0.25 Inches |
| Largest: 20 x 20 Inches | |
| Components | Passives Down to 0201 Size |
| BGA and VFBGA | |
| Leadless Chip Carriers/ CSP | |
| Double-Sided SMT Assembly | |
| BGA Repair and Reball | |
| Part Removal and Replacement | |
| Component Packaging | Cut Tape,Tube,Reels,Loose Parts |
| Turn Time | Same Day Service to 15 day service |
| Testing | X-RAY Inspection & AOI Test |
PCB Assembly Technical Capability
We deliver high quality surface-mount technology (SMT) products through the use of modern, well maintained SMT lines that are operated by trained professionals. Our SMT lines are capable of handling both low and high volume through-put, can perform single and double sided component placement, mixture of SMT automatic and manual component assemblies, SMT and through-hole assemblies.
Capability 1.SMT with 4 million placements per day
2.Manual insertion with output 500,000pcs components per day
3.Chip mounting speed is 0.3S/unit,high-point speed is 0.16S/unit
Mount Precision: 1.Chips size:Min.0201
2.Mounting precision:0.1mm
3.Multi-functional machine can match 0.3 pitch packages such as BGA,CSP
Application
Products are applied to a wide range of High-tech industries such as: LED lighting,telecommunication, computer application, lighting, game machine, industrial control, power,automobile and high-end consumer electronics, ect.
By unremitting work and effort to the marketing, products exports to American,Canada, Europe counties,Africa and other Asia-pacific countries.
Canada, Europe counties,Africa and other Asia-pacific countries.
Quality Certificates
Lead free,ISO,UL,CE
View of Rigao Factory :
Our Principle is simple, “Act by heart, Make the best.”
Our strengthis distinct, “Years of experiences in PCB and PCBA field”
Our Goal is achievable, “ To be the most reliable supplier of PCB and PCBA.”
Our orientation is clear, “Focus on prototypes and low to medium volume business ”
