Prototype PCB Boards

Material Type:

FR4,non-halogen material ,Aluminum Base, Cooper Base,high frequency material ,Thick copper foil,94-V0(HB),PI Material,HIGH TG:SL S1000-2,ITEQ:IT180

Surface treatment: HAL,Immersion Gold,Immersion Tin,Immersion silver,Gold Finger,OSP,HAL(Immersion Gold,OSP,Immersion silver,Immersion Tin)+Gold Finger

Application

PCBs are applied to a wide range of High-tech industries such as: LED, telecommunication, computer application, lighting, game machine, industrial control, power, automobile and high-end consumer electronics, ect. By unremitting work and effort to the marketing, products exports to American, Canada, Europe counties, Africa and other Asia-pacific countries.

FAQ

What are the available holes sizes?

14 mils to 150 mils - 1 mil increments
150 mils to 200 mils - 5 mil increments
above 200 mils - holes would be routed out
We only use drills in imperial units. Files submitted in metric units (mm) would be converted to imperial units (mils) and rounded up to the next mil.

I am used to designing in metric units while the website is specified in imperial units. Is there a conversion chart I can refer to ?

When requesting an online quote, the quote form can handle mm units as well as inches for dimensions.

How do I specify internal cutouts/milling in my design?

All internal cutouts/slots/milling should be specified on the same layer is the board outline. The the minimum routable slot size is 32 mils. During order time, please state this requirement in the "Special Request" section so that our CAM engineers is aware of it. This is not something we encounter often - so there are chances we may overlook it. Make sure it's known to us.

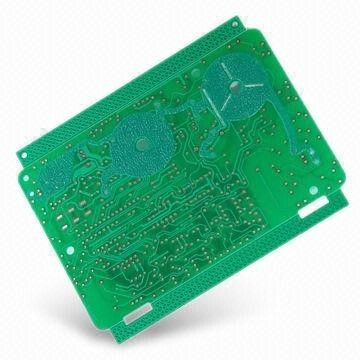

1oz Copper Quick Peelable Mask Prototype PCB BoardS For Position Indicator , 2 Layer

Large Image : 1oz Copper Quick Peelable Mask Prototype PCB BoardS For Position Indicator , 2 Layer

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	AGILECIRCUIT
Certification:	ISO9001,UL, RoHs, TS16949
Model Number:	bluemaskpcb1033

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Quote by Gerber
Packaging Details:	Vacuum and Outter Carton
Delivery Time:	1 week - 2 weeks
Payment Terms:	TT, West Union,Paypal,MoneyGram, NET
Supply Ability:	4000 square meter / day
Trade Terms::	EX-WORK, DDU TO DOOR, FOC

Contact Now

Detailed Product Description

Highlight:

custom pcb printing

circuit board printer

1oz Copper Quick Peelable Mask Prototype PCB BoardS For Position Indicator , 2 Layer

Product Name:	Peelable Mask PCB	Material:	FR4 Standard
Layer Count:	2 Layers	Board Thickness:	1.6mm
Copper Thickness:	1oz	Surface Finish:	Leaded HASL
Feature	Peelable Mask	Applications:	Position Indicators

Description:

In order to help customers to reduce time-to-market, capture the market to seize the initiative we Agile Circuits offer PCB prototype quick turnaround, both prototypes and small volume production batches. Our quick turn circuit boards fabrication service for single sided, double sided to multilayer boards. Standard fast delivery offered as well as 24 hours, 48 hours quick turnaround.

Circuit boards	Quick turnaround	Standard Lead time
Single Sided Prototype	12 hours - 72 hours	3 days - 8 days
Double sided Prototype	12 hours - 90 hours	4 days - 9 days
Multilayer Prototype	72 hours-144 hours	5 days - 10 days
Single Sided Medium run	3 days - 8 days	6 days - 10 days
Double sided Medium run	5 days - 9 days	7 days - 14 days
Multilayer Medium run	6 days - 10 days	7 days - 16 days

Specification:

Layer single Layer, Double Layers, and Multi Layers up to 26 Layers
Material FR-4, CEM-3, CEM-1,High TG, Aluminum clad, Copper clad
Thickness 0.20mm,0.6mm,0.8mm,1.0mm,1.2mm,1.6mm,2.0mm,2.4mm to 4.00mm
Copper 1/2oz, 1oz, 2oz ,3oz,4oz,5oz,6oz
Surface finishing HASL, Lead Free HASL, Immersion Gold, Immersion Silver, Immersion Tin, OSP/Entek,
Sample order, Prototype, Small volume, Medium production PCB

Applications:

Self-Service ATMs and Kiosks, Security Door Controls, Door Card Control, Electronic Lock, Aircraft Parts/Equipment, Switching Systems, Terminal Equipment, Publicly Accessible Equipment Vending Machines, Precision Positioning Systems, Robotics System, Water Purification System, Antenna, Guitar Electronics, Position Indicators, Controllers, Memory and Non-Memory Products, Networking, Wireless Communications,LED, LCD, Voice Announcement System, LCD Monitors, Radio and TV, Digital Cameras, CCD-cameras and CMOS-cameras, Communication Devices, ESD Measurement Tools, Housing, Electronics, Remote Control ect.

Advantage:

No MOQ, low cost for small quantity prototype. We panelize prototype circuit boards on a big panel which will share set-up cost with other customers, which could save a lot PCB tooling cost for small quantity PCB prototype.
PCB manufacturing on spec. We have professional engineering in the each production process from evaluating cost, checking and assessing Gerber requirement, making MI to production and final inspection to guarantee circuit board quality.
Meeting your printed circuit board needs from PCB prototyping to mid-volume production
ISO/TS certified PCB manufacturing factory.
Deliver on time. We keep higher than 95% on-time-delivery rate
Combined service to arrange your PCB to you by DDU TO DOOR shipment with competitive shipping cost. You don’t need to arrange anything after confirm the order just wait for your PCB deliver to your hand.
Offer free DRC for DFM to our customer.
Decades experience in supporting manufacturing PCB requirement from a wide range of industries
