Material Type:
FR4,non-halogen material ,Aluminum Base, Cooper Base,high frequency material ,Thick copper foil,94-V0(HB),PI Material,HIGH TG:SL S1000-2,ITEQ:IT180
Surface treatment: HAL,Immersion Gold,Immersion Tin,Immersion silver,Gold Finger,OSP,HAL(Immersion Gold,OSP,Immersion silver,Immersion Tin)+Gold Finger
Application
PCBs are applied to a wide range of High-tech industries such as: LED, telecommunication, computer application, lighting, game machine, industrial control, power, automobile and high-end consumer electronics, ect. By unremitting work and effort to the marketing, products exports to American, Canada, Europe counties, Africa and other Asia-pacific countries.
FAQ
What are the available holes sizes?
14 mils to 150 mils - 1 mil increments
150 mils to 200 mils - 5 mil increments
above 200 mils - holes would be routed out
We only use drills in imperial units. Files submitted in metric units (mm) would be converted to imperial units (mils) and rounded up to the next mil.
I am used to designing in metric units while the website is specified in imperial units. Is there a conversion chart I can refer to ?
When requesting an online quote, the quote form can handle mm units as well as inches for dimensions.
How do I specify internal cutouts/milling in my design?
All internal cutouts/slots/milling should be specified on the same layer is the board outline. The the minimum routable slot size is 32 mils. During order time, please state this requirement in the "Special Request" section so that our CAM engineers is aware of it. This is not something we encounter often - so there are chances we may overlook it. Make sure it's known to us.
|
Product Details:
|
| High Light: | pcb connectors,pcb motherboard,pcba board |
||
|---|---|---|---|

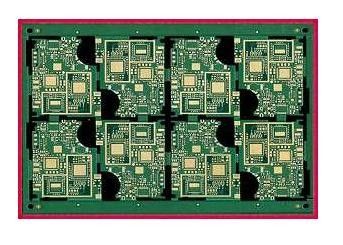

CEM-1 CEM-3 FR-1 Customized Prototype Pcb Board
Description
1. Single-sided, double side & multi-layer PCB with competitive price, good quality and excellent service.
2. FR-1, CEM-1, CEM-3, FR-4, FR-4 High TG, Aluminum base material.
3. HAL, HAL lead free, Immersion Gold/ Silver/Tin, OSP surface treatment.
4. Printed Circuit Boards are 94V0 compliant, and adhere to IPC610 Class 2 international PCB standard.
5. Quantities range from prototype to medium batch production.
6.100% E-Test
Application
Products are applied to a wide range of High-tech industries such as: LED, telecommunication, computer application, lighting, game machine, industrial control, power, automobile and high-end consumer electronics, ect. By unremitting work and effort to the marketing, products exports to American, Canada, Europe counties, Africa and other Asia-pacific countries
Advantage
1.PCB factory directly
2.PCB high quality
3.PCB good price
4.PCB quick time
5.PCB certification(ISO/UL/RoHS)...
Specification
|
SERIAL |
ITEM |
TECHNICAL DATA |
|
1 |
Layers |
2－16(layers) |
|
2 |
Max Board Size |
18" x 24" |
|
3 |
Max Board Thickness |
6mm |
|
4 |
Min Line Width |
4mil |
|
5 |
Min Line Space |
4mil |
|
6 |
Min Hole Size |
12mil |
|
7 |
PTH Wall Thickness |
1mil |
|
8 |
PTH dia tolerance |
±3mil |
|
9 |
NPTH hole dia tolerance |
±2mil |
|
10 |
Hole Position Deviation |
±2mil |
|
11 |
Outline Tolerance |
±6mil |
|
12 |
S/M Pitch |
3mil |
|
13 |
Insulation Resistance |
1E+12Ω(Normal) |
|
14 |
Thermal Shock |
288 ℃(3x10Sec) |
|
15 |
Warp and Twist |
≤0.7% |
|
16 |
Electric Strength |
＞1.3KV/mm |
|
17 |
Peel Strength |
1.4N/mm |
|
18 |
Solder Mask Abrasion |
≥6H |
|
19 |
Flammability |
94V-0 |
|
20 |
Electrical test |
10V -250V |
|
Material |
Surface Finish |
|
CEM-1 |
OSP |
|
FR-4 |
HASL |
|
FR-4 High TG |
HASL lead free |
|
Aluminum PCB |
Immersion/Chemical Gold |
|
FR406 |
Flash Gold |
|
FR408 |
Immersion Silver |
|
Rogers |
Immersion Tin |
|
Halogen Free |
Gold finger |
