Material Type:
FR4,non-halogen material ,Aluminum Base, Cooper Base,high frequency material ,Thick copper foil,94-V0(HB),PI Material,HIGH TG:SL S1000-2,ITEQ:IT180
Surface treatment: HAL,Immersion Gold,Immersion Tin,Immersion silver,Gold Finger,OSP,HAL(Immersion Gold,OSP,Immersion silver,Immersion Tin)+Gold Finger
Application
PCBs are applied to a wide range of High-tech industries such as: LED, telecommunication, computer application, lighting, game machine, industrial control, power, automobile and high-end consumer electronics, ect. By unremitting work and effort to the marketing, products exports to American, Canada, Europe counties, Africa and other Asia-pacific countries.
FAQ
What are the available holes sizes?
14 mils to 150 mils - 1 mil increments
150 mils to 200 mils - 5 mil increments
above 200 mils - holes would be routed out
We only use drills in imperial units. Files submitted in metric units (mm) would be converted to imperial units (mils) and rounded up to the next mil.
I am used to designing in metric units while the website is specified in imperial units. Is there a conversion chart I can refer to ?
When requesting an online quote, the quote form can handle mm units as well as inches for dimensions.
How do I specify internal cutouts/milling in my design?
All internal cutouts/slots/milling should be specified on the same layer is the board outline. The the minimum routable slot size is 32 mils. During order time, please state this requirement in the "Special Request" section so that our CAM engineers is aware of it. This is not something we encounter often - so there are chances we may overlook it. Make sure it's known to us.
| High Light: | prototype pcb,pcb board prototype,pcb prototype boards |
||
|---|---|---|---|

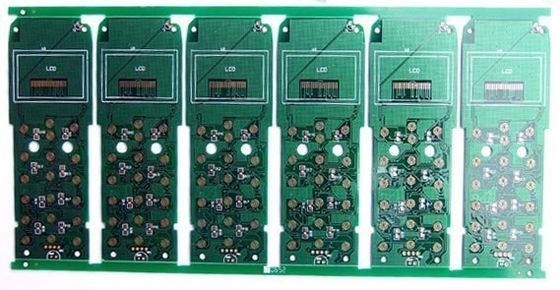

ENIG Double-sided PCB, Rigid Double-sided PCB Prototype PCB Board
QUICK DETAIL :
1 Layer , 2 Layer,3 Layer,4 Layer,6 Layer,8 Layer,
10 Layer,12 Layer,14 Layer,16 Layer
HAL/ENIG Surface finishing
Peelable resistance 12.3N/cm
Copper thickness in hole ≥25.0um
Solderable test 245℃ 5 second
ENIG Double-sided PCB, Rigid Double-sided PCB, FR4 Rohs Double-sided PCB, PCB Prototype
Description:
|
Layer |
1-16 |
|
Material |
FR4 |
|
Thickness |
0.2-3.2mm |
|
Surface finishing |
HAL/ENIG |
|
Copper |
0.5-3oz |
|
Test |
Flying probe |
Fast pcb sample production service 3-6 days, with flying probe test. Quick response time, professional service. Single sided pcb and double sided pcb need short time and multi-layer board sample need longer time.
Applications:
Printed circuit board can be used for all kinds of electrical products, such as computer, radio, TV, mobile, mp4, led and so on. It’s widely used in various of industries in the world. We have been pcb/pcba business for ten years and provide different customized pcb to many countries all over the world. Welcome to contact us for further news.
Specifications:
|
Product Technical Parameter |
|||
|
Basic technology |
Parameter |
||
|
Single/Double sided |
Multilayer |
||
|
Number of Layers |
1-2 |
4~16 |
|
|
Copper Thickness |
0.25~3.0OZ |
0.5~3.0OZ |
|
|
Base Board Thickness |
0.2~3.2mm |
0.6~3.2mm |
|
|
Incombustibility |
94V-0 |
94V-0 |
|
|
Peelable resistance |
12.3N/cm |
12.3N/cm |
|
|
Twist |
≤0.5% |
≤0.5% |
|
|
Insulation resistance |
≥1011Ω |
≥1011Ω |
|
|
Test voltage |
10-300V |
10-300V |
|
|
Finished board area |
560×970mm |
560×970mm |
|
|
Min. Line Width and Spacing |
0.1/0.1mm |
0.1/0.1mm |
|
|
Copper thickness in hole |
≥25.0um |
≥25.0um |
|
|
Mini. pad diameter |
Inner layer |
|
0.05mm |
|
Out layer |
0.076mm |
0.076mm |
|
|
Mini. Hole Diameter |
0.25mm |
0.20mm |
|
|
Hole tolerance |
PTH |
±0.076mm |
±0.076mm |
|
NPTH |
±0.05mm |
±0.05mm |
|
|
Hole location tolerance |
±0.076mm |
±0.05mm |
|
|
profile tolerance |
Routing |
±0.1mm |
±0.1mm |
|
Punching |
±0.13mm |
±0.13mm |
|
|
Solder mask bridge ability |
≥0.1mm |
≥0.075mm |
|
|
Solder mask rigidity |
6H |
6H |
|
|
Solderable test |
245℃ 5 second |
245℃ 5 second |
|
|
Thermal cycling ability |
288℃ 10 second |
288℃ 10 second |
|
|
Surface Finishing |
OSP, HAL, HAL Lead-free, Immersion gold , Gold plating, Rosin, Gold finger, Immersion Tin and so on |
||
|
Qaulity standard |
IPC-A-600F IPC-ML-950 |
||
|
Sample standard |
STD-105E-Ⅱ |
||
Competitive Advantage:
1, Excellent quality control service
2, Competitive price
3, Quick production time
4, PCB design/production/test integrated service
