Testing Procedures For PCB Board
---We perform multiple quality assuring procedures before shipping out any PCB board. These include:
* Visual Inspection
* Flying probe
* Bed of nails
·* Impedance control
·* Solder-ability detection
* Digital metallograghic microscope
·*AOI (Automated Optical Inspection)
Detailed Terms for PCB Manufacturing
---Technical requirement for pcb assembly:
* Professional Surface-mounting and Through-hole soldering Technology
* Various sizes like 1206,0805,0603 components SMT technology
* ICT(In Circuit Test),FCT(Functional Circuit Test) technology.
* PCB Assembly With UL,CE,FCC,Rohs Approval
* Nitrogen gas reflow soldering technology for SMT.
* High Standard SMT&Solder Assembly Line
* High density interconnected board placement technology capacity.
Surface Treatment
Lead-free HAL
Gold Plating (1-30 micro inch)
OSP
Silver Plating
Pure Tin Plating
Immersion Tin
Immersion Gold
Gold Finger
Other Service:
A) We have many special material as rogers, teflon, taconic, Fr-4 high tg, Ceramic in stock. Welcome to send us your inquiry.
B) We also provide sourcing components , PCB design , PCB copy , PCB drawing , PCB assembly and so on .
Product Details:
Payment & Shipping Terms:
|
| High Light: | smd led pcb board,led printed circuit board |
||
|---|---|---|---|

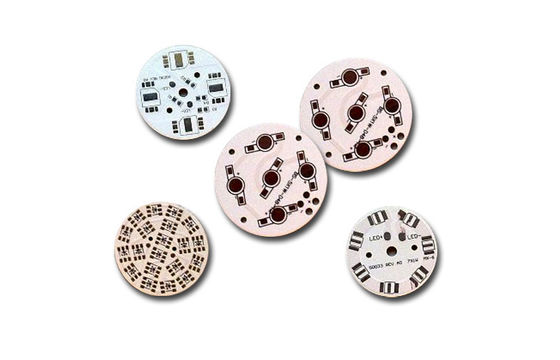

Electronic pcb circuit board multilayer LED PCB Prototype Fabrication
> Brand Name: East PCB
> WebSite: www.eastpcb.com
> Material: FR4
> Layer Count: 2 Layers
> Board Thickness: 1.6 mm
> Copper Thickness: 1OZ
> Surface Finish: Lead Free
> Solder Mask: White (top&bot)
> Silkscreen: No screen (top&bot)
> Min drill/pad: 0.3mm/ 0.5mm
> Certification: UL, RoHS, ISO9001,
ISO14001, TS16949
Prototype PCB Manufacturing Guidelines:
> FR4, 1.6mm, 1OZ copper
> Green Soldermask, White Silkscreens
> Surface Finish: HASL (Lead Free)
> Board size equal to or less than 200 square cm.
> Min hole/pad: 0.3mm/0.6mm.
> Min track thickness/ clearance 0.15mm/0.15mm
> Standard Lead Time
The following does attract surcharges:
> FR4 TG170/180 Material
> Other Material thicknesses
> 2oz copper or above
> Min hole/pad: 0.2mm, Min track 0.1mm
> Gold Finish (Immersion gold)
> Multiple design in one panels
> Prototype PCB expedited service.
Requirements and services including:
•Design, technical and advisory services
•Single and double sided (both NPTH and PTH)
•Multlayers
•Hot Tin/Lead Solder
•Lead Free- RoHS
•Gold or Silver Immersion
•Gold fingers
•Electroplated Copper, Tin or Silver
•SMT Stencils
•Peelable mask
•PCB panel laminate supply
•Light Sensitive film laminate
•Electrical testing
•V Scoring
•Budget Prototype Service
•International outsourcing
•UL Certication
•QA Conformance Certification
•Specialist plating thickness measurement certification
LED PCB Board, Prototype LED PCB, LED PCB PCB Prototype FROM EASTPCB.COM
