Testing Procedures For PCB Board
---We perform multiple quality assuring procedures before shipping out any PCB board. These include:
* Visual Inspection
* Flying probe
* Bed of nails
·* Impedance control
·* Solder-ability detection
* Digital metallograghic microscope
·*AOI (Automated Optical Inspection)
Detailed Terms for PCB Manufacturing
---Technical requirement for pcb assembly:
* Professional Surface-mounting and Through-hole soldering Technology
* Various sizes like 1206,0805,0603 components SMT technology
* ICT(In Circuit Test),FCT(Functional Circuit Test) technology.
* PCB Assembly With UL,CE,FCC,Rohs Approval
* Nitrogen gas reflow soldering technology for SMT.
* High Standard SMT&Solder Assembly Line
* High density interconnected board placement technology capacity.
Surface Treatment
Lead-free HAL
Gold Plating (1-30 micro inch)
OSP
Silver Plating
Pure Tin Plating
Immersion Tin
Immersion Gold
Gold Finger
Other Service:
A) We have many special material as rogers, teflon, taconic, Fr-4 high tg, Ceramic in stock. Welcome to send us your inquiry.
B) We also provide sourcing components , PCB design , PCB copy , PCB drawing , PCB assembly and so on .
Product Details:
Payment & Shipping Terms:
|
PCB: | Al PCB / High Thermal Transfer | Thickness: | 1.6 Mm |
---|---|---|---|
LED: | Bridgelux 45mil | Color: | Red / Green / Blue / Warm White / Pure White |
Input Voltage: | DC12V-24V-48V Available | Lens: | Module 28*1W Peanut / Wave Type |
Viewing Angle: | 120*60 | Rubber Ring: | Yes |
Driver: | Waterproof IP67 | Size: | As Drawing |
High Light: | 1 watt high power led,1w power led |

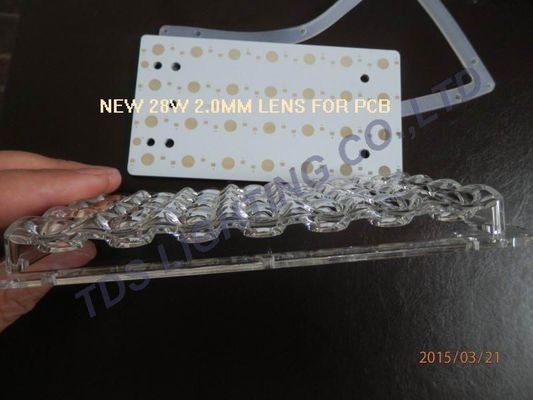

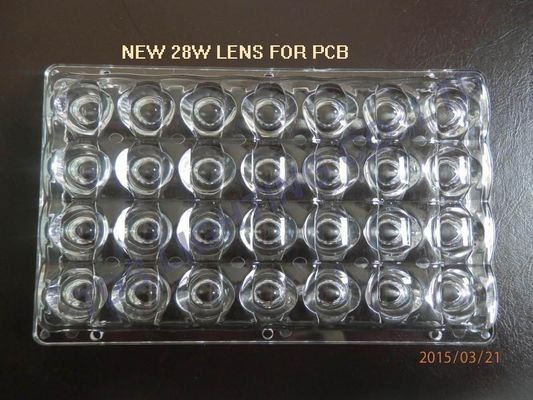

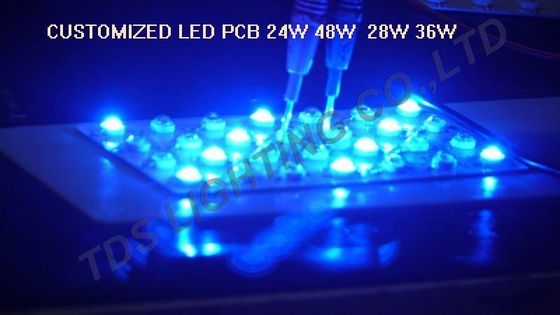

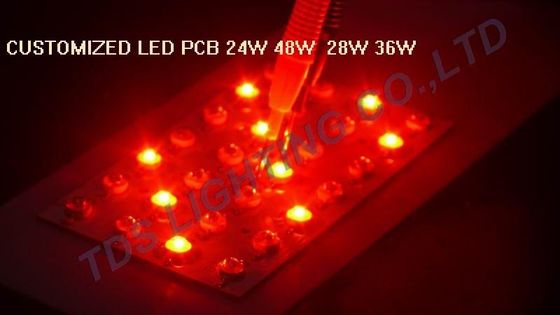

28 W Customized 1w Power Led PCB Board 120 x 60 Degree Waterproof Lens
How to design:
You can write mail to us and inform us the design opinion . we help u to draw the drawing and design the electroical connection.
How to use :
Welcome to send your valuable inquiry to xdlleds@gmail.com
